Compressor Clutch Relay: Testing and Inspection

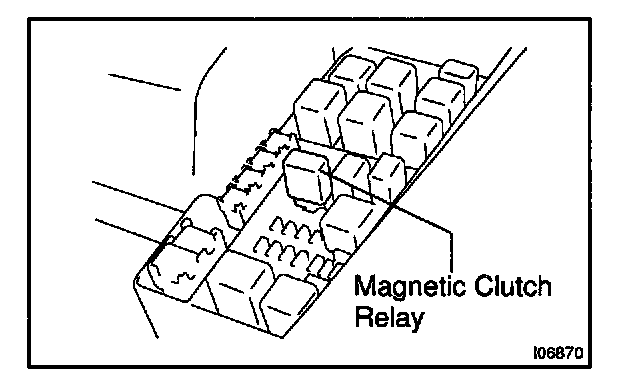

1. REMOVE MAGNETIC CLUTCH RELAY (Marking : MG CLT) FROM ENGINE ROOM JUNCTION BLOCK

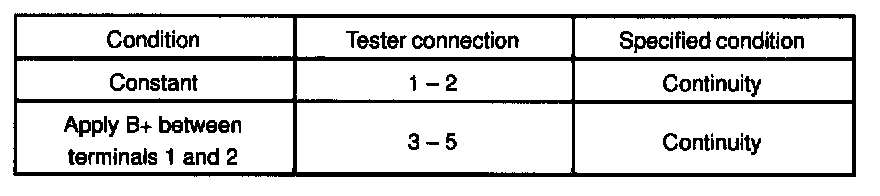

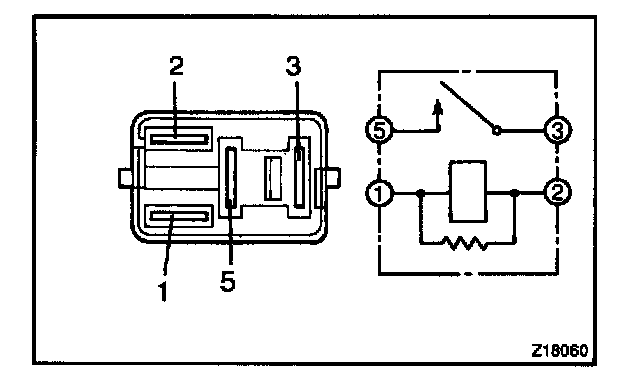

2. INSPECT MAGNETIC CLUTCH RELAY (Marking : MG CLT) CONTINUITY
If continuity is not as specified, replace the relay.

3. INSTALL MAGNETIC CLUTCH RELAY TO ENGINE ROOM JUNCTION BLOCK
