Operation/Inspection






NOTE: In case of changing, removing or installing the throttle body or IACV, must do this.

1. THROTTLE BODY INSPECTION

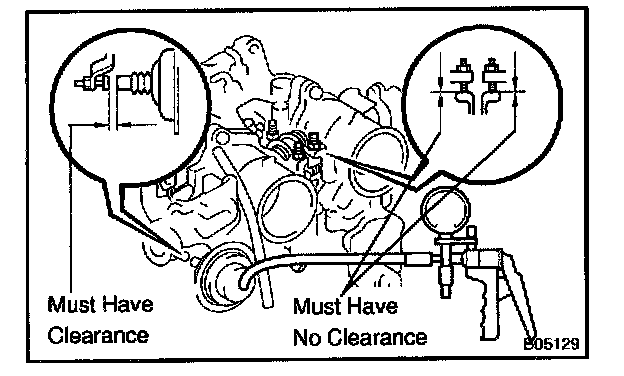

a. Check that there is no clearance between each throttle stop screw and the throttle lever when applying the negative pressure (53.3 kPa (400 mm Hg)) to the throttle opener using the MITYVAC.




Standard: Must have no clearance.

NOTE: As the throttle stop screw is precisely adjusted, so do not adjust it.

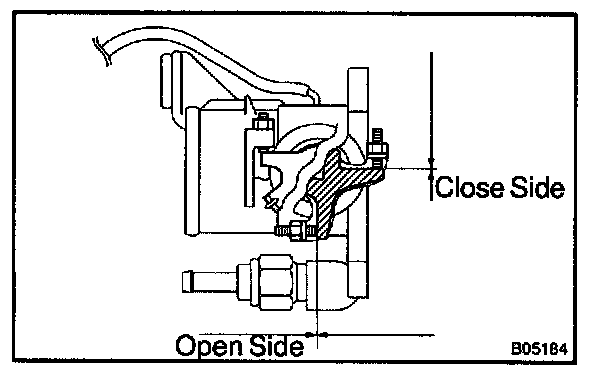

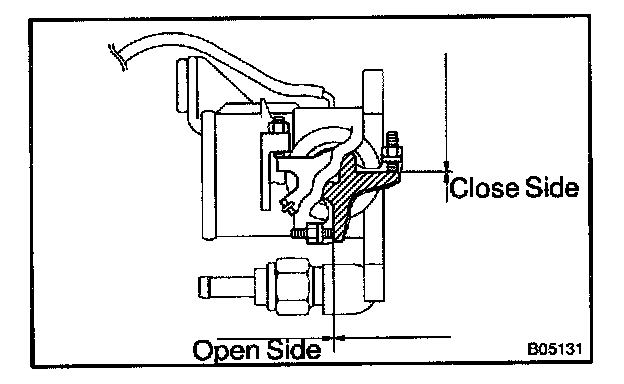

b. Under the condition of (1), check visually that there is a clearance between each adjust screw and the throttle lever on No.1 side.
Adjust Screw Close Side Open Side

Reference Value
About 0.13 mm
About 0.22 mm

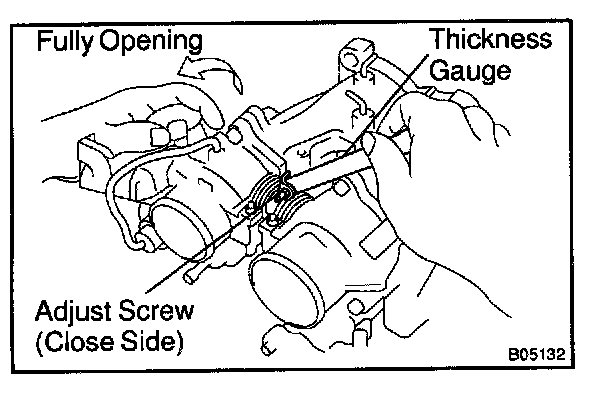

c. Measure the clearance between the adjust screw on the close side when fully opening the throttle lever on No.2 side by hand and the throttle lever on No.1 side with a thickness gauge.
Standard value: 0.25-0.45 mm
In case of being out of standard value, perform the adjustment of (2)




2. THROTTLE BODY (BALANCE) ADJUSTMENT

NOTE: Do not adjust the throttle stop screw and throttle opener.

a. Beforehand checking Recheck 1 - (1)

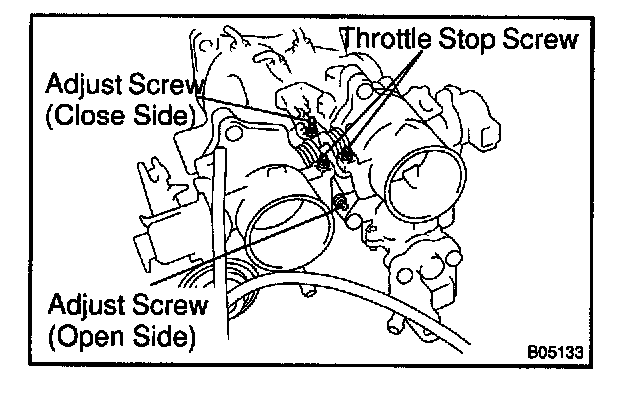

b. Adjustment of the adjust screw on the open side
1. Loosen the lock nut and screw using the hexagon wrench width of two planes 2 mm., make clearance between the screw tip and the throttle lever on No.1 side.
2. Turn the screw to the screw torque direction gradually, and stop it at the position where to touch the lever at the very moment.

NOTE: If turning it too much to the torque direction, No.1 lever goes off from the throttle stop screw causing the adjustment failure.




3. Turn it back from the position where it touches the lever to the screw loosing direction.
Standard:
Turn it back by rotating 1/4.

4. Torque the lock nut.

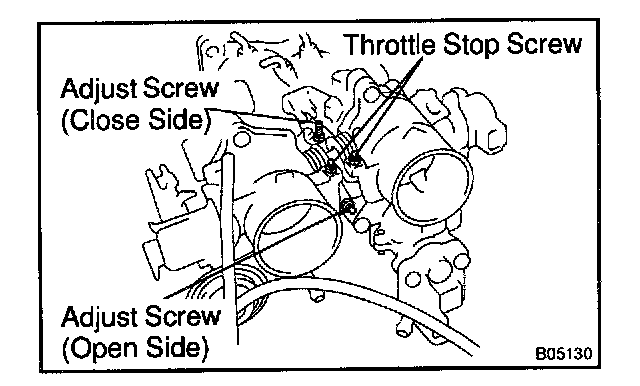

c. Adjustment of the adjust screw on the close side
1. Loosen the lock nut and screw, and make clearance between the screw tip and the throttle lever on No.1 side.
2. Turn the screw to the screw torque direction gradually, and stop it at the position where to touch the lever at the very moment.

NOTE: If turning it too much to the torque direction. No.2 lever goes off from the throttle stop screw causing the adjustment failure.

3. Turn it back from the position where it touches the lever to the screw loosing direction.
Standard:
Turn it back by rotating 1/2-3/4.
4. Torque the lock nut.

d. Completion checking Check 1 - (3)
