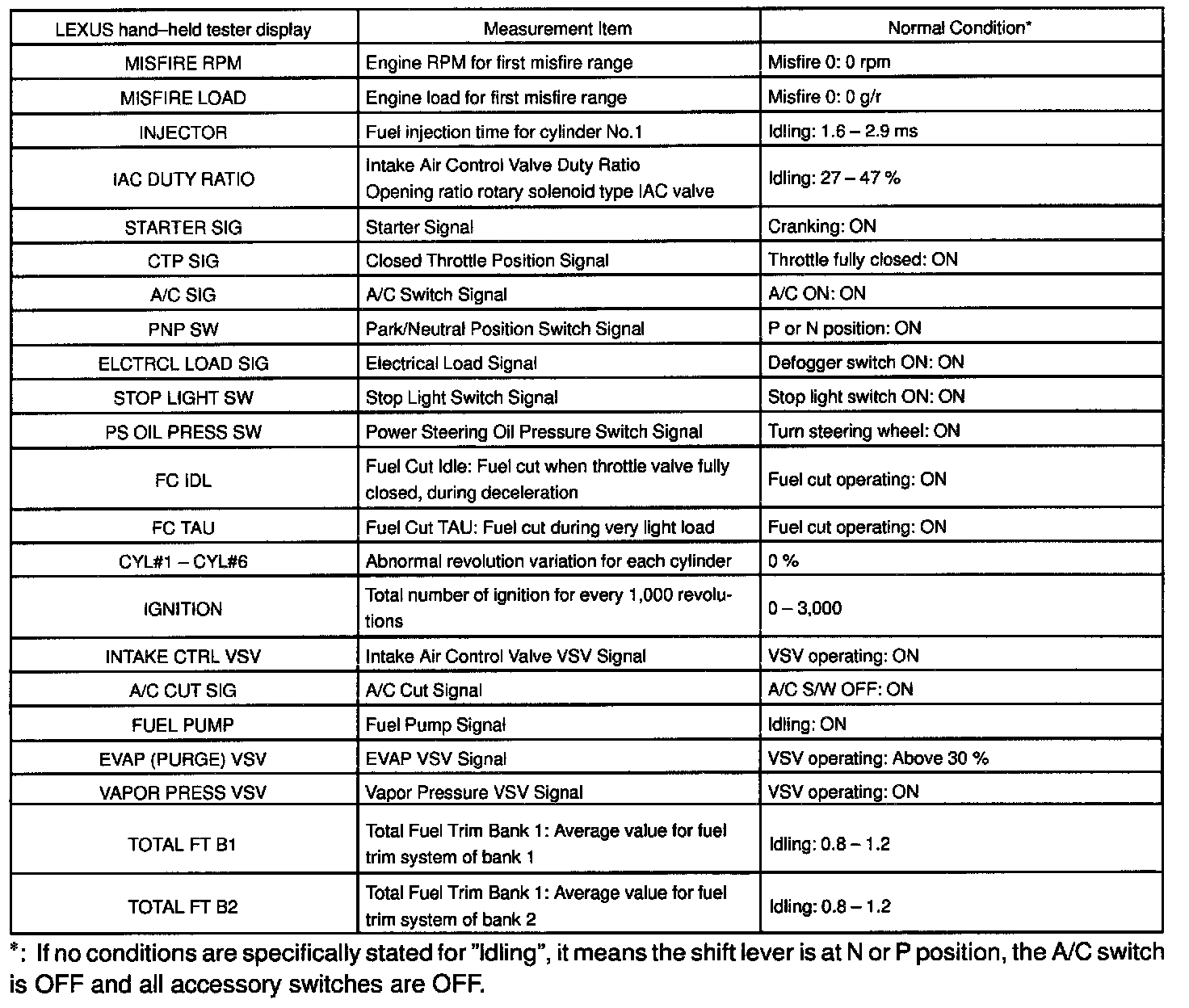

Data List / Active Test

NOTE: The values given for "Normal Condition" are representative values, so a vehicle may still be normal even if its value from those listed here. So do not decide whether a part is faulty or not solely according to the "Normal Condition" here.




a. CARB mandated signals.




b. LEXUS Enhanced Signals.
