Lexus Truck
>>
2000
>>
RX 300 AWD V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
Component Tests and General Diagnostics

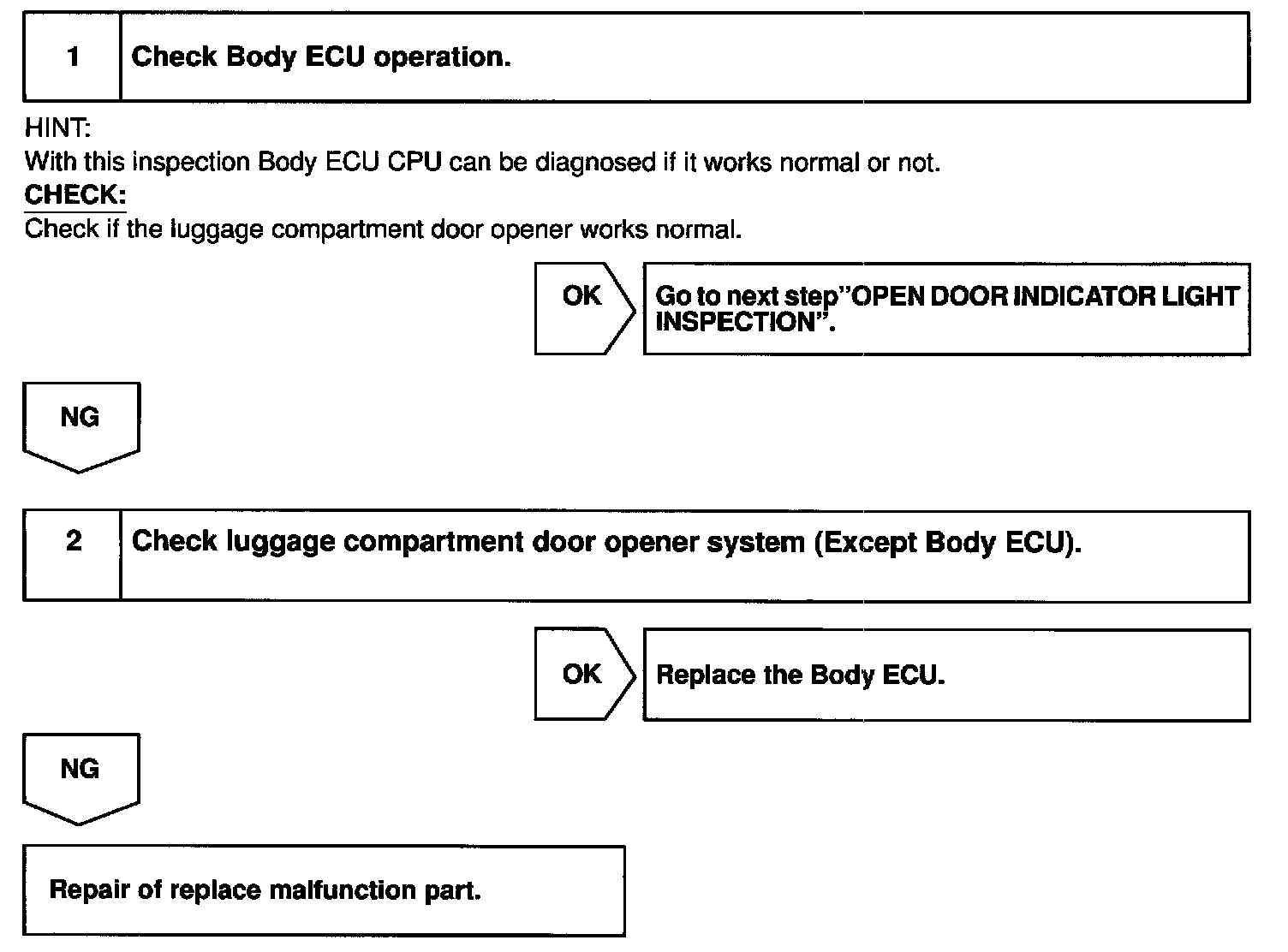

Steps 1 - 2 / Inspect Body No.1 ECU:

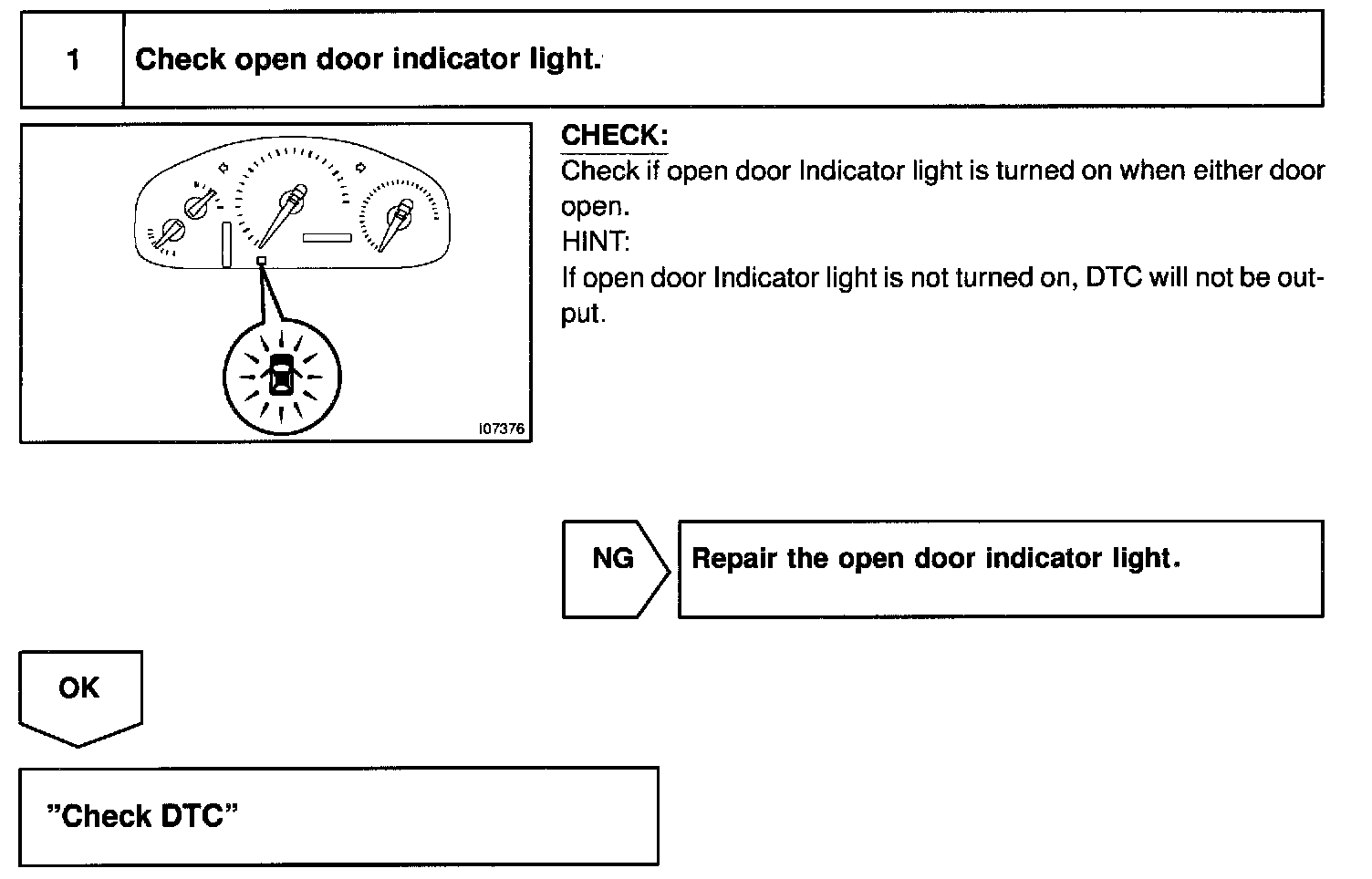

Step 1 / Inspect Open Door Indicator Light.:
