Data Link Connector: Locations

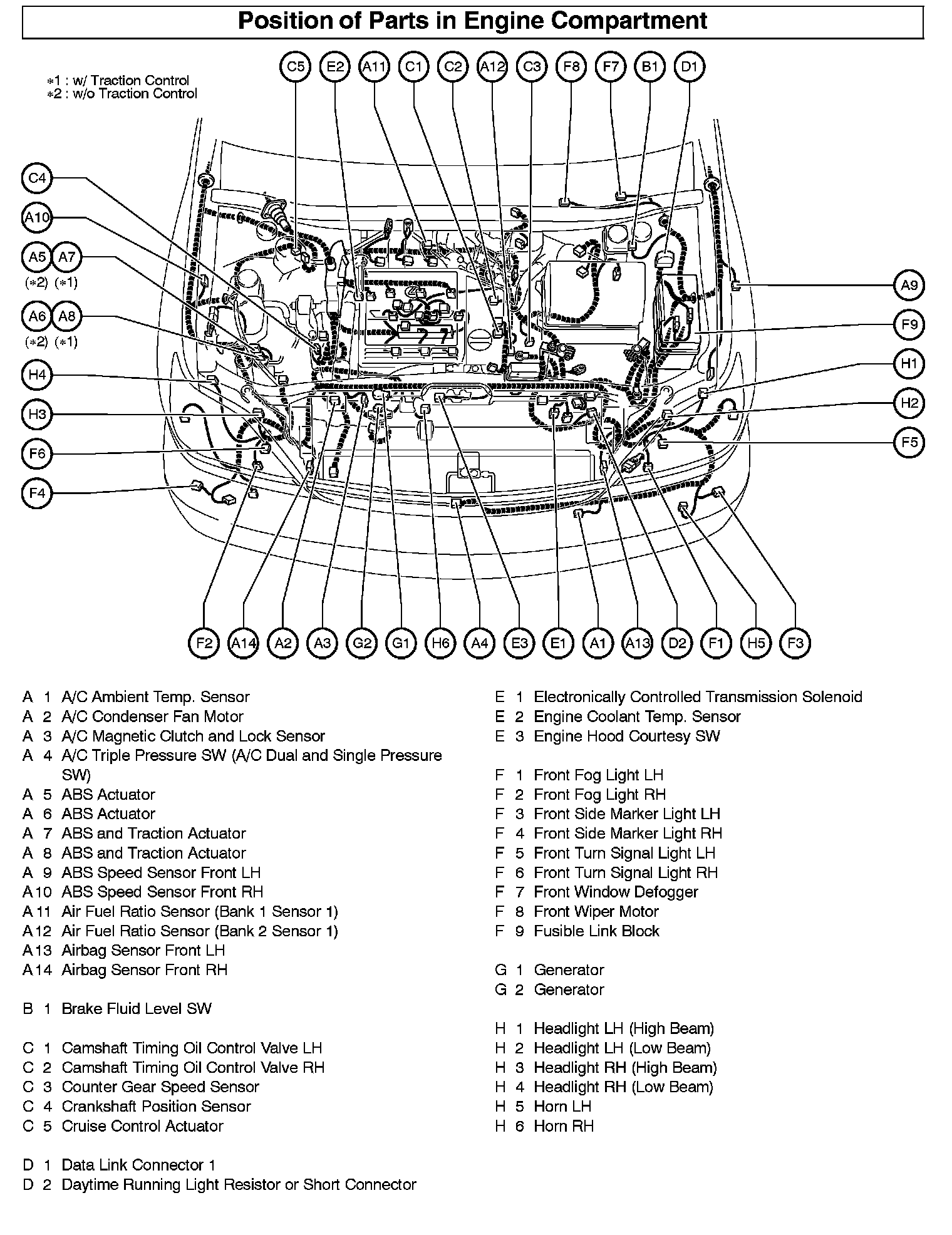

Position Of Parts In Engine Compartment (With And Without Traction Control):

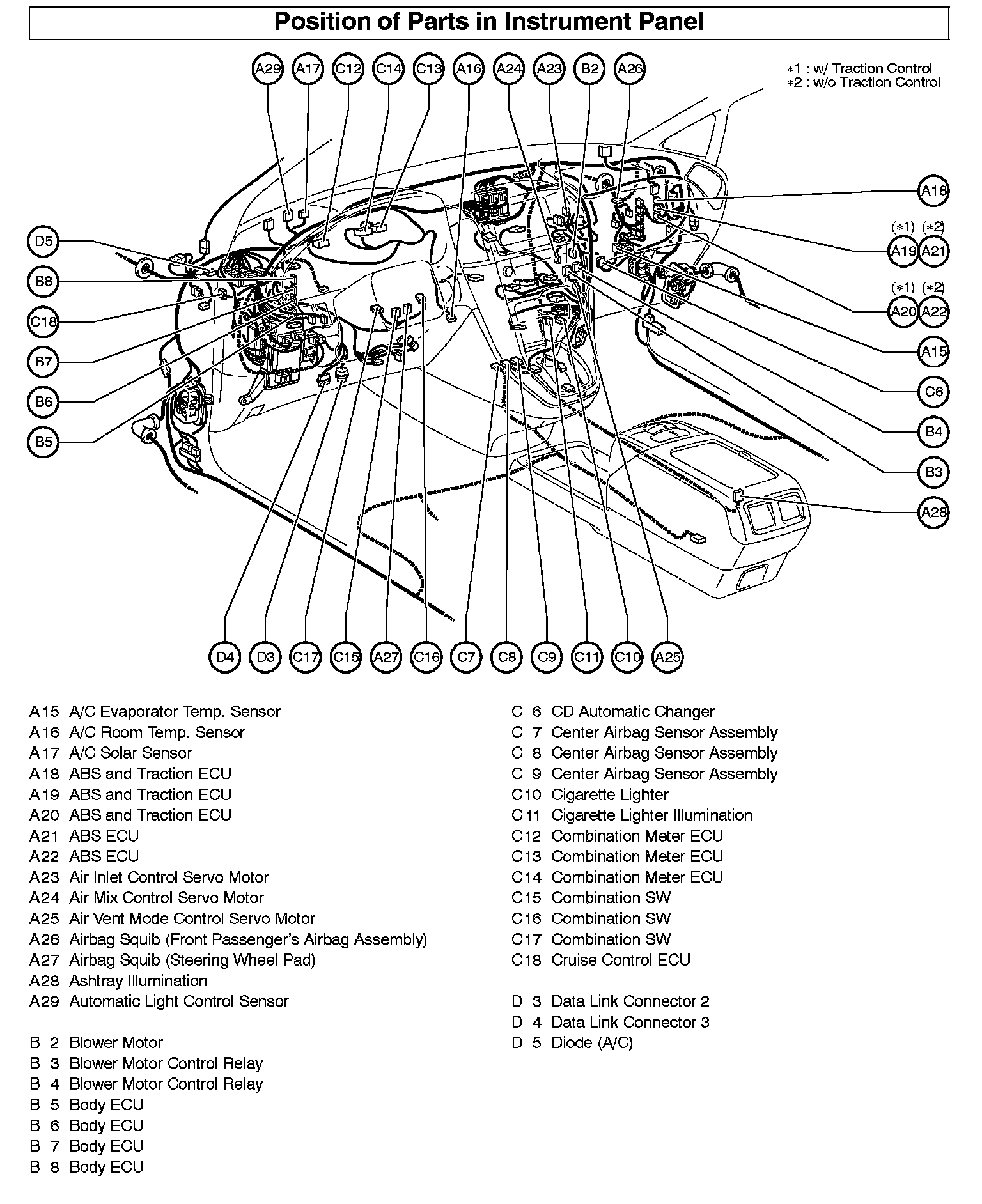

Position Of Parts In instrument Panel (With And Without Traction Control):
