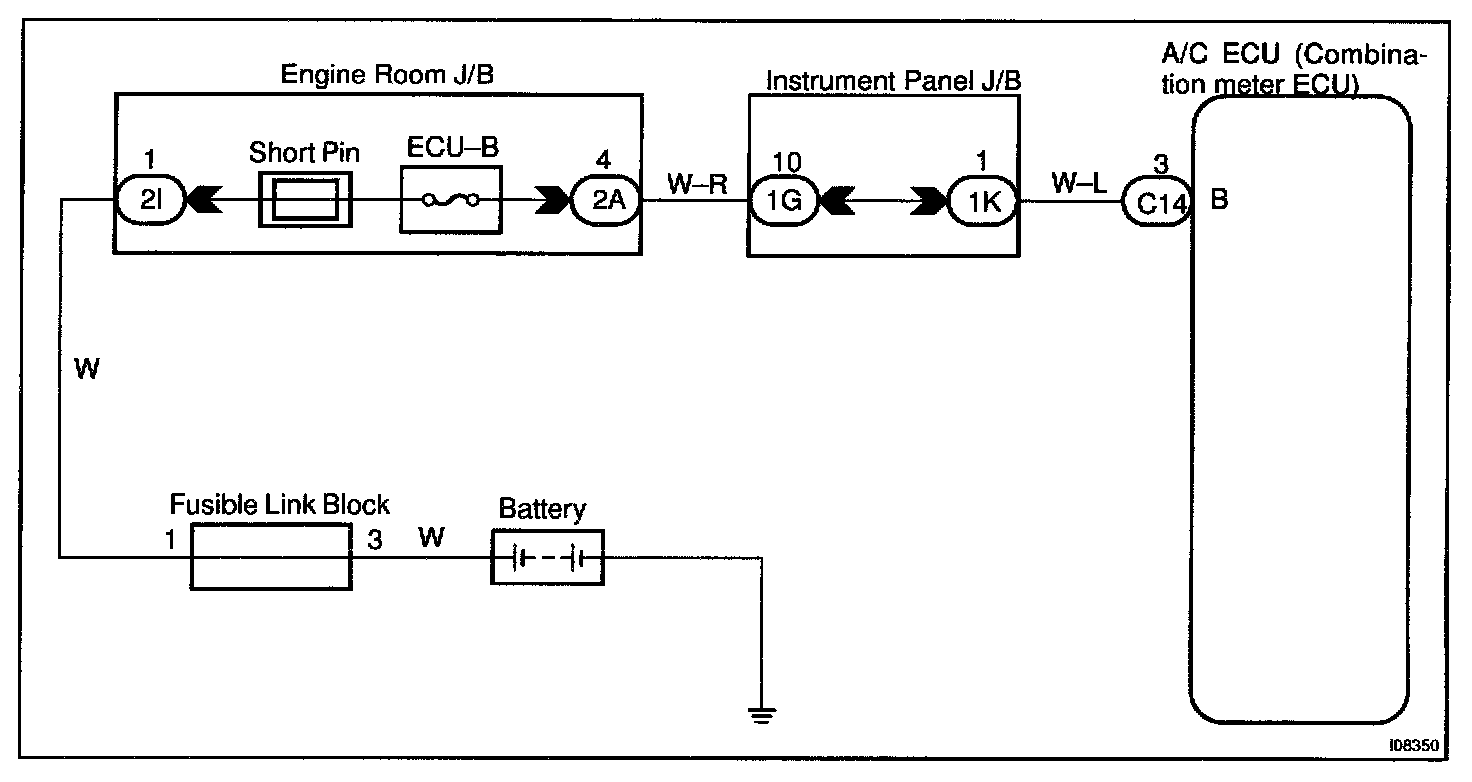

Back-Up Power Source Circuit

CIRCUIT DESCRIPTION
This is the backup poser source for the A/C ECU (Combination meter ECU). Power is supplied even when the ignition switch is off and is used for diagnostic trouble code memory, etc.
