On-Vehicle Inspection

INSPECT OIL CONTROL VALVE RESISTANCE




a. Remove the V-bank cover.
b. Remove the intake air connector.
c. Disconnect the oil control valve connector.

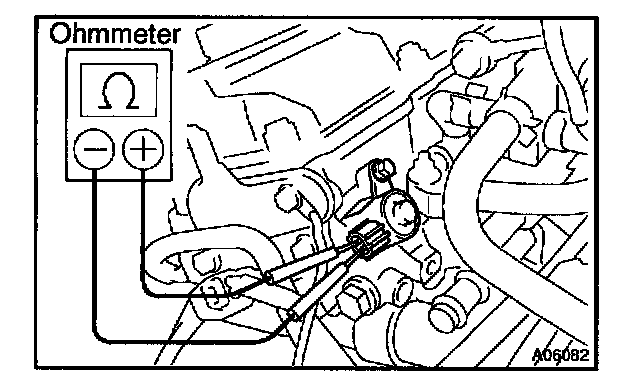

d. Using an Ohmmeter, measure the resistance between the terminals.
Resistance:
6.9-7.9 Ohms at 20 °C (68 °F)
If the resistance is not as specified, replace the valve.
e. Reconnect the oil control valve connector.
f. Reinstall the intake air connector.
g. Reinstall the V-bank cover.
