Timing Belt

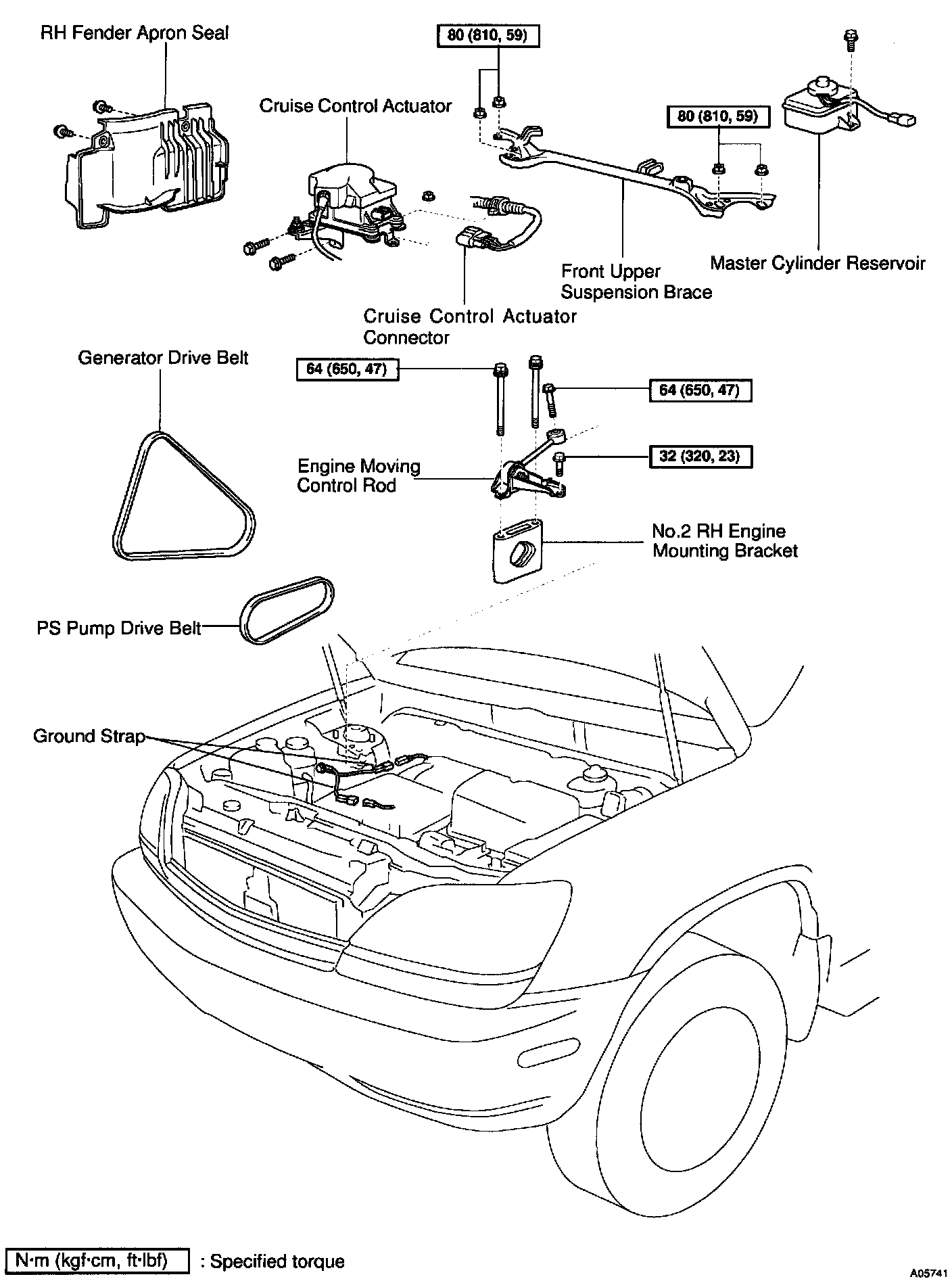

UNDERHOOD VIEW





Part 1 of 2

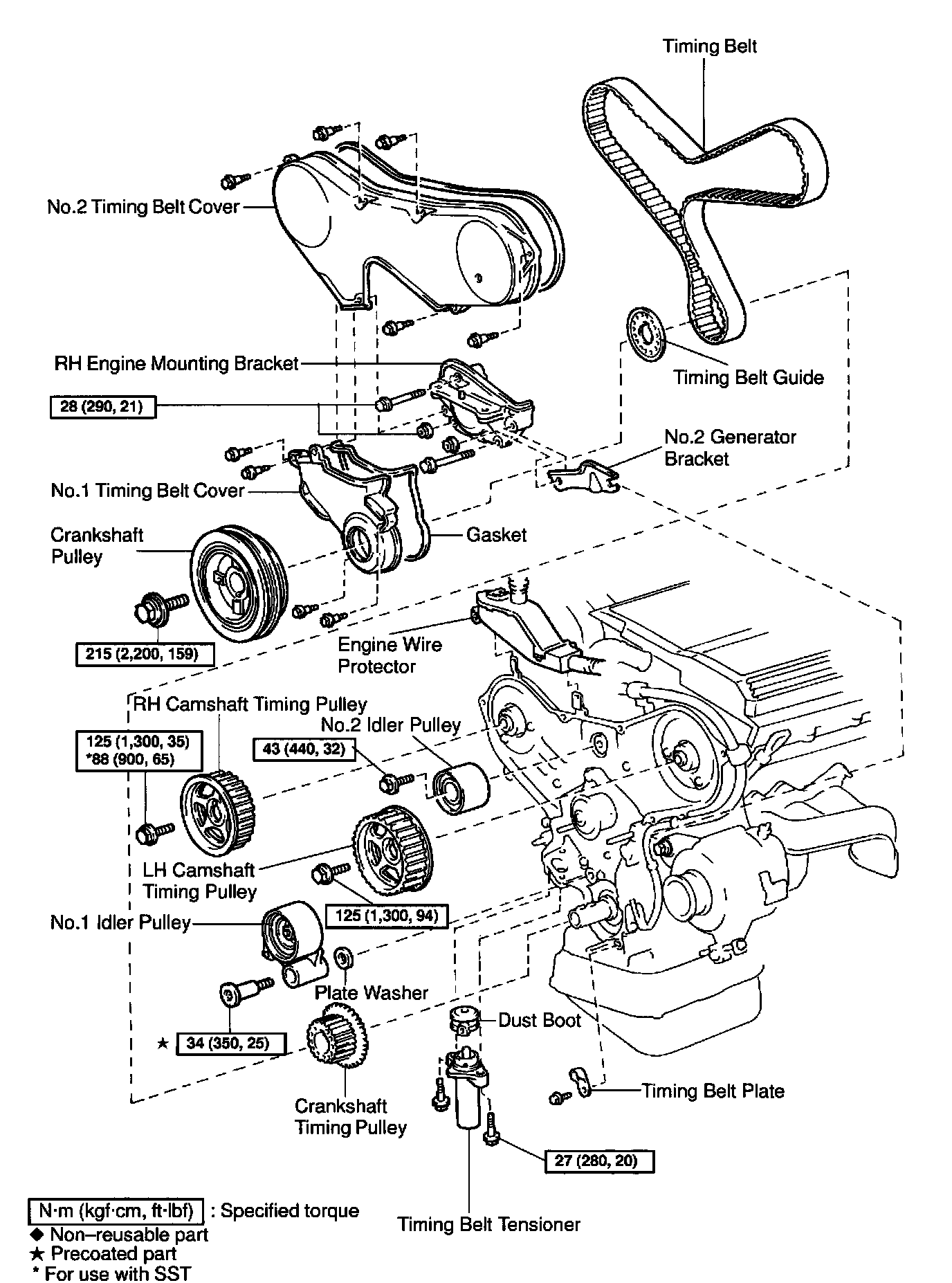

Part 2 of 2





TIMING BELT REPLACEMENT W/ RELATED COMPONENTS
