Lexus Truck
>>
2000
>>
RX 300 AWD V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
A - Z Connectors
>>
I - Connectors
I - Connectors

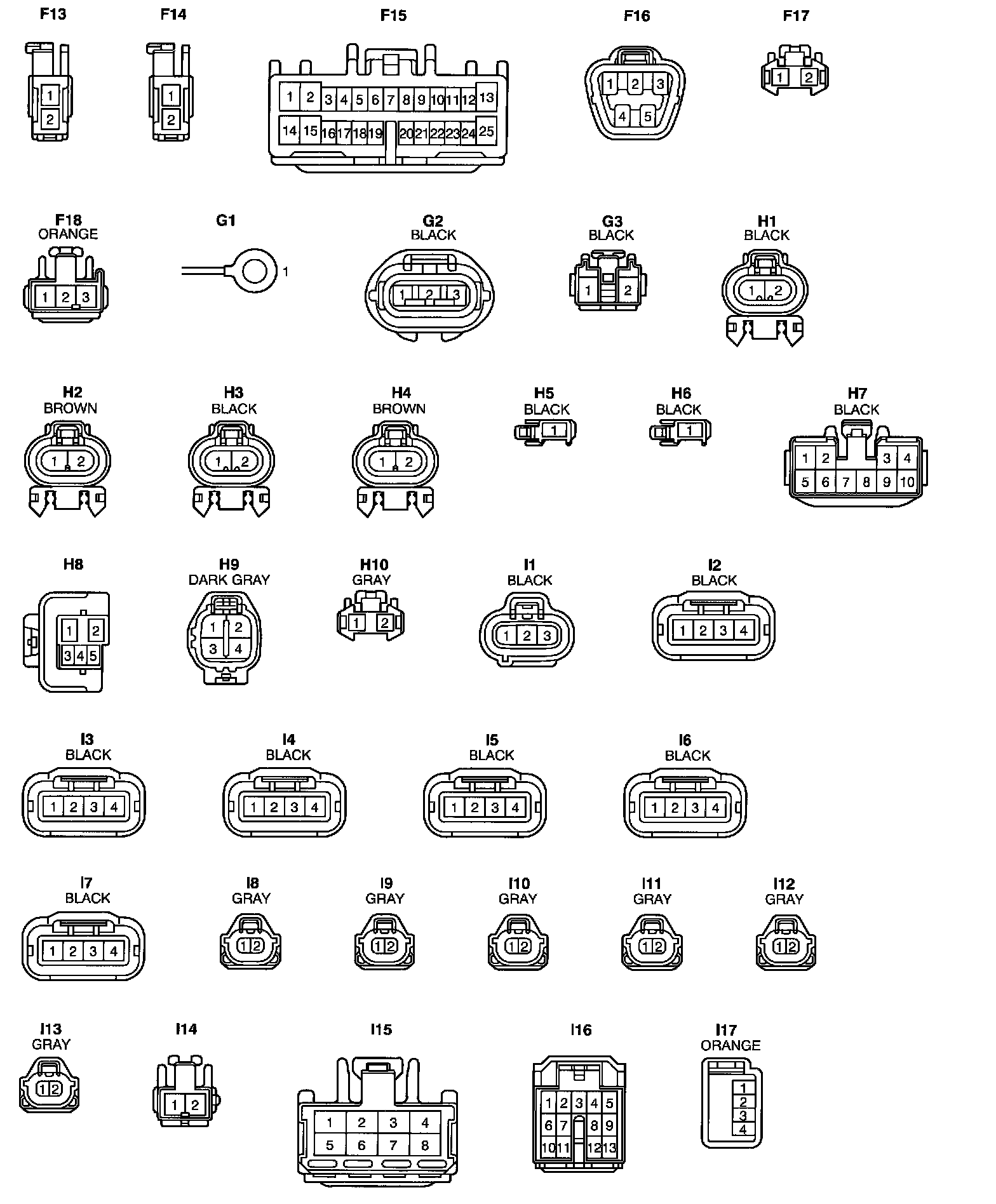

F13-I17:
