Indicator Check




Check the indicator.

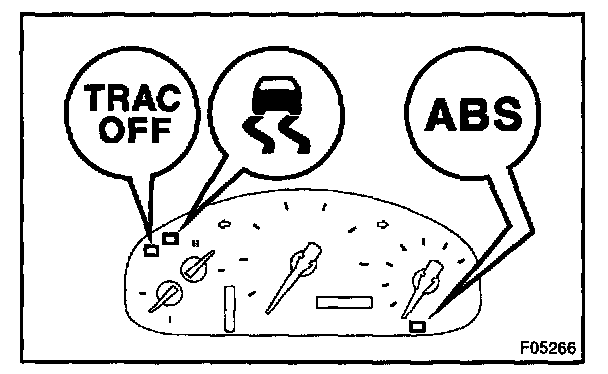

When the ignition switch is turned ON, check that the ABS warning light, TRAC OFF indicator light and SLIP indicator light goes on for 3 seconds.

HINT: If the indicator check result is not normal, proceed to troubleshooting for the ABS warning light circuit, TRAC OFF indicator light circuit or SLIP indicator light circuit.
