With Lexus Hand-Held Tester

Using LEXUS hand-held tester, check the speed sensor signal.

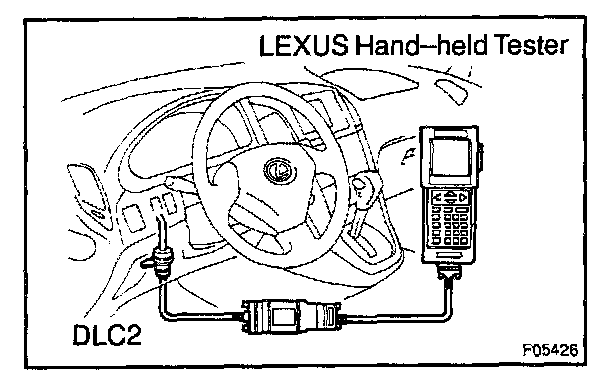

1. Hook up the LEXUS hand-held tester to the DLC2.
2. Start the engine.




3. Check that the ABS warning light blinks.

HINT: If the ABS warning light does not blink, inspect the ABS warning light circuit.

4. Drive vehicle straight forward.

HINT: Drive vehicle faster than 45 kph (28 mph) for several seconds.

5. Stop the vehicle.
6. Read the DTC by following the prompts on the tester screen.

HINT: Please refer to the LEXUS hand-held tester operator's manual for further details.




DTC of the speed sensor check function:
