Control Module Pinout Values

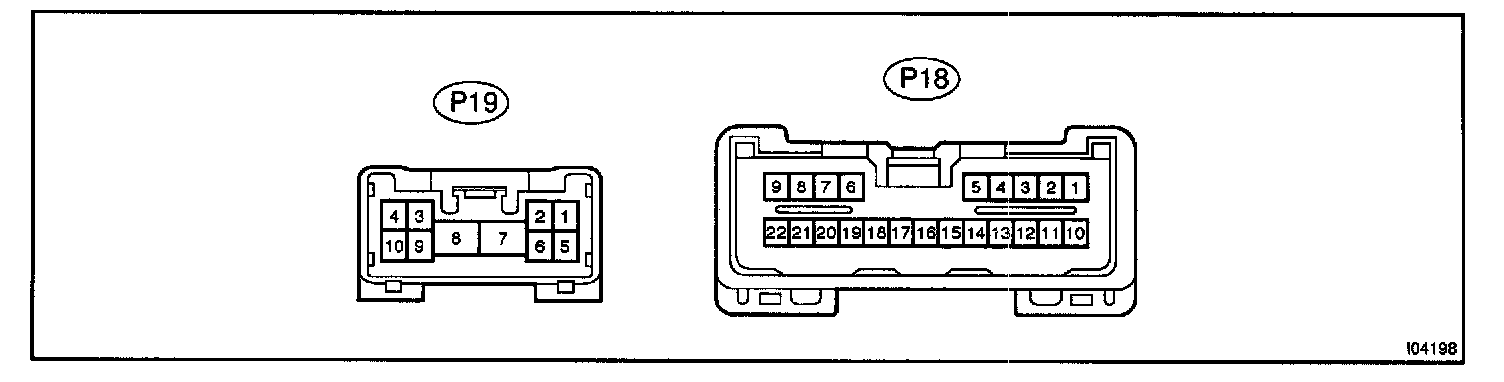

ECU Views - (P18, P19):

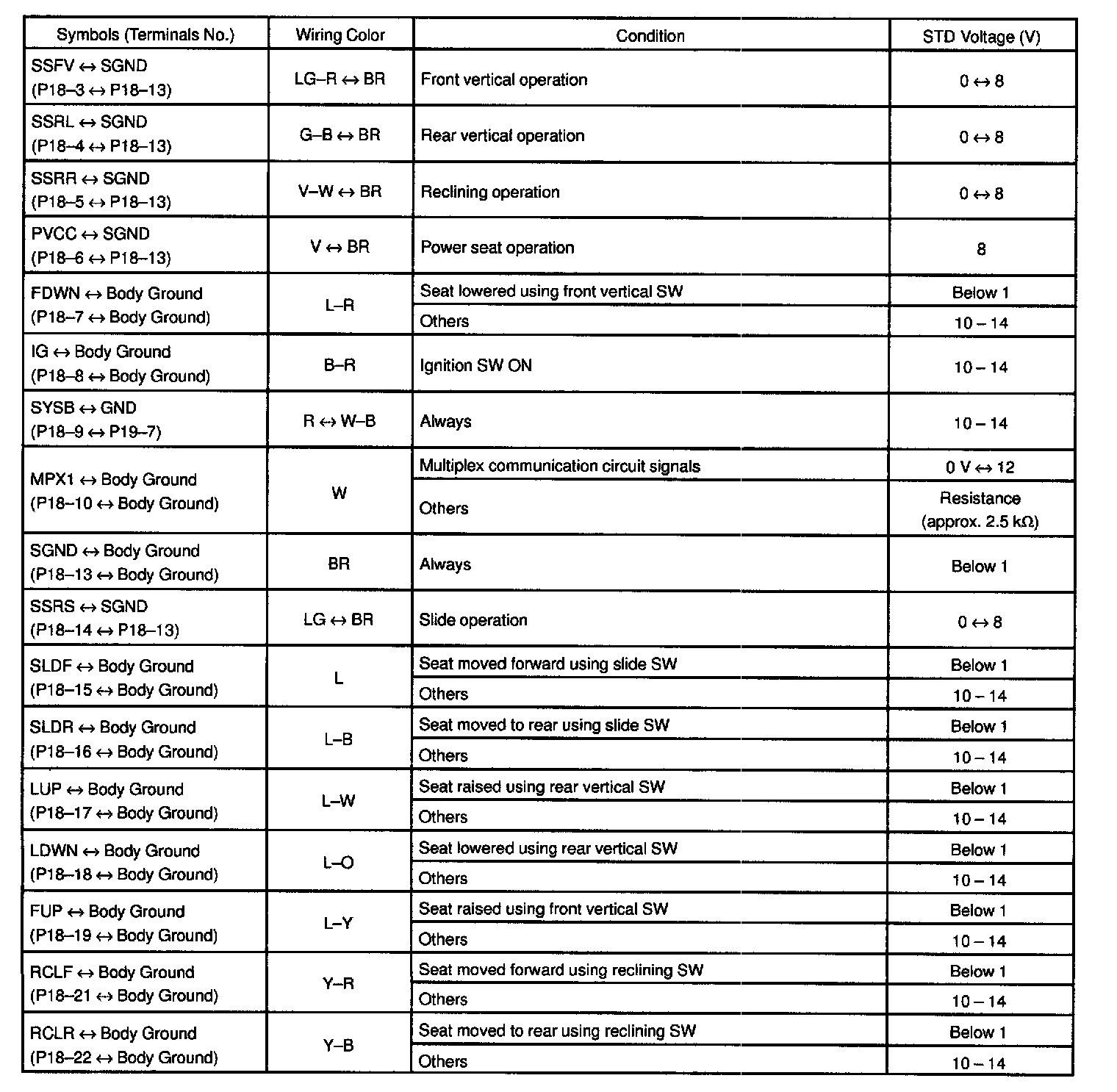

ECU Pinouts - (P18, P19) (Part 1 Of 2):

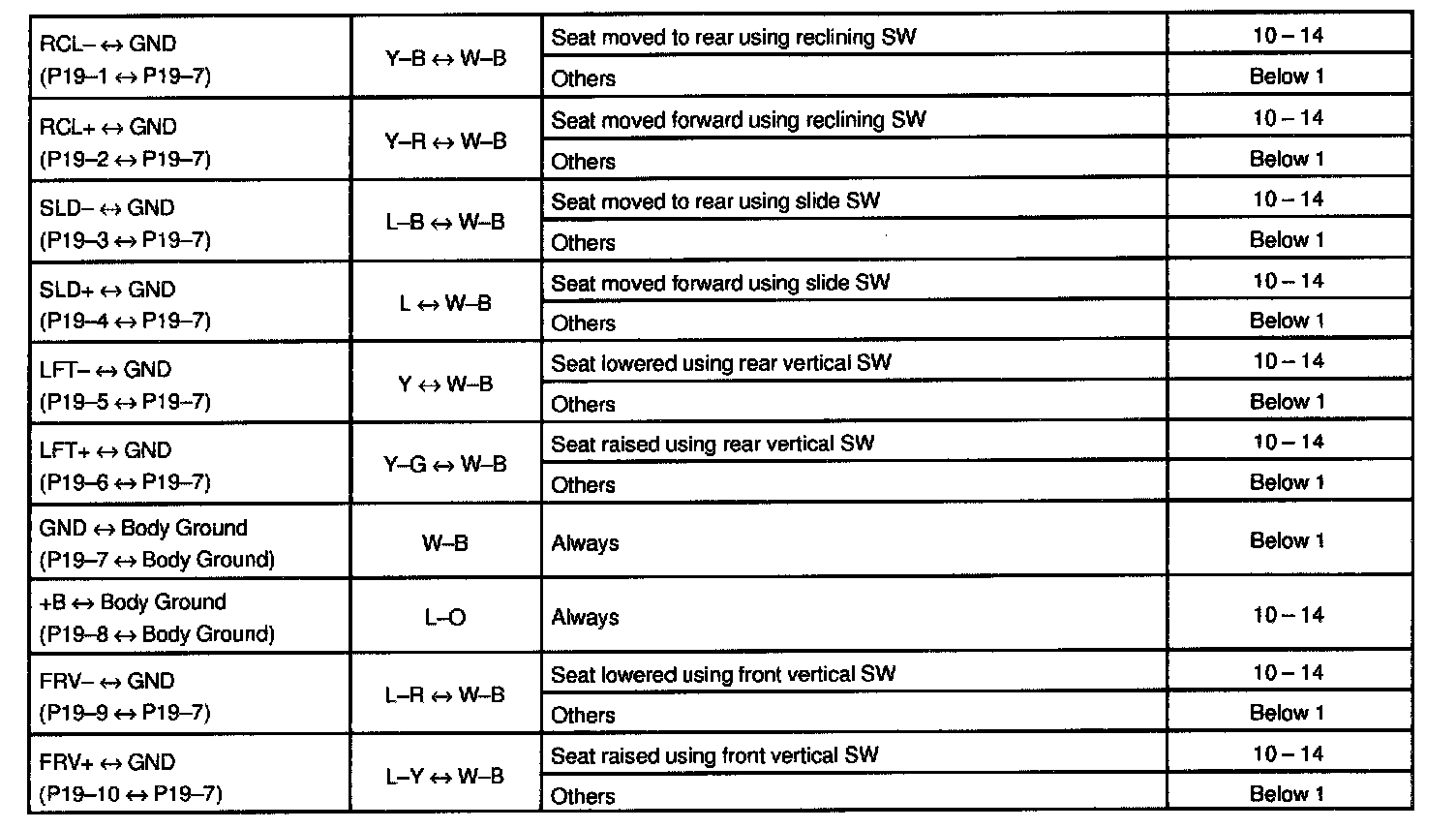

ECU Pinouts - (P18, P19) (Part 2 Of 2):




ECU TERMINAL VALUES
