Interior - Separate Seat Heater Element Installation: Overview

Body
BO004-00

June 30, 2000

Title:
SEAT HEATER REPLACEMENT
PROCEDURE

Models:
99-00 RX 300

Introduction
This is to inform you of the seat heater replacement procedure. A change has been made to allow separate installation of the seat heater element.

Applicable Vehicles
^ 1999 - 2000 model year RX 300 vehicles.

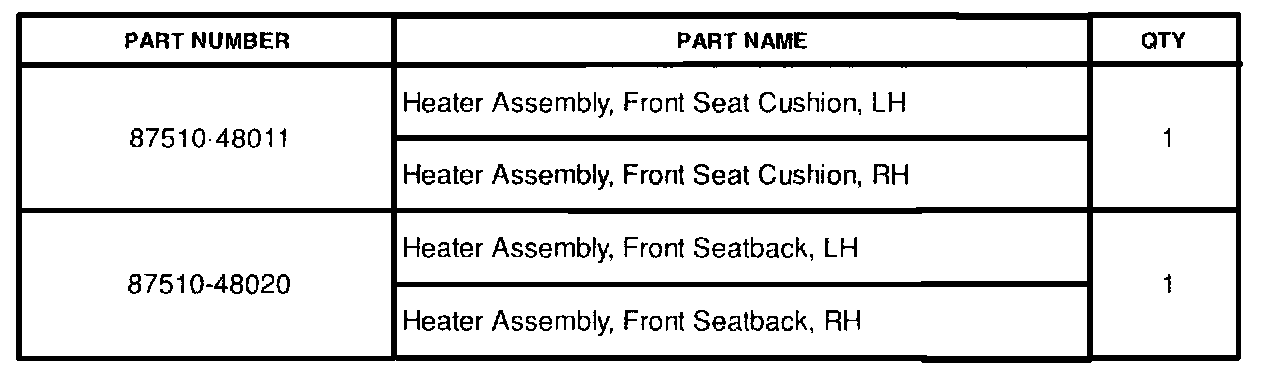

Parts Information





Warranty Information





Required Tools and Material
^ Tacker
^ Tacks
^ Hog Ring Pliers

NOTE:
1. Banzal Limited
International Operations Department
2-31-19, Shiba, Minato-Ku, Tokyo, Japan
Telephone: 81-3-3769-6891
Fax: 81-3-3451-5200

2. Any local supply tool that is equivalent to the items shown are acceptable.

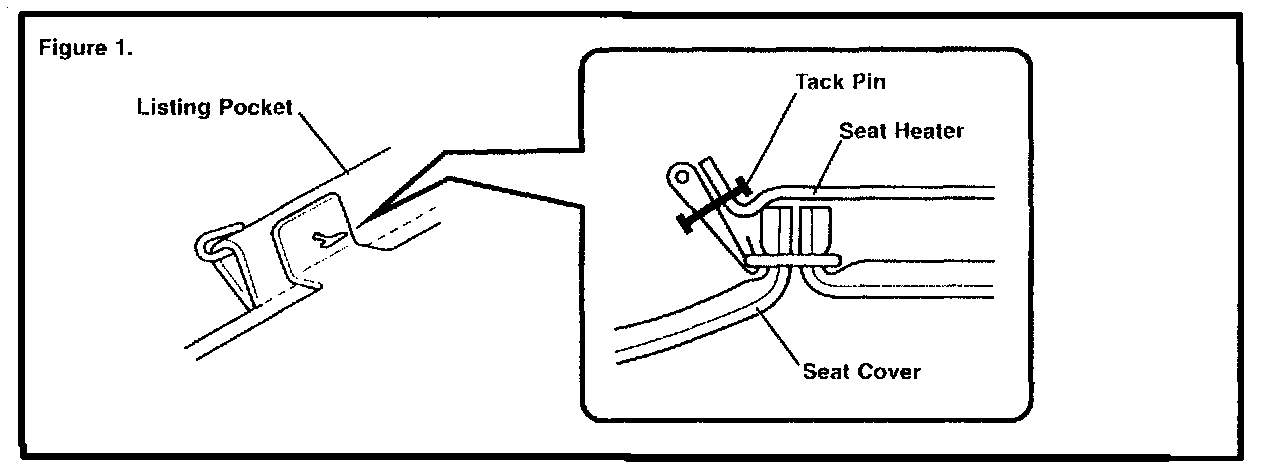

How to use the Tacker:
As shown, drive in a tack pin with the tacker and fix the seat heater to the seat cover.
