Removal and Replacement
REMOVAL1. REMOVE ROOF HEADLINING

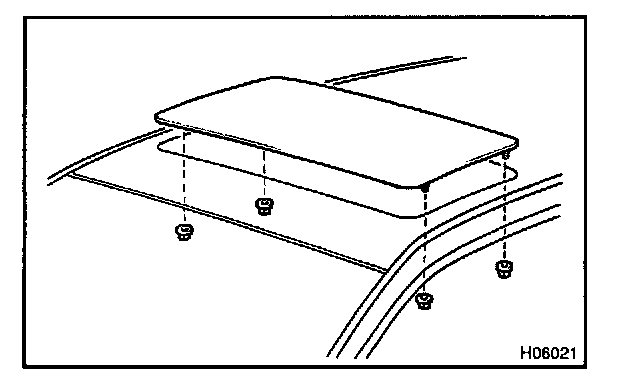

2. REMOVE SLIDING ROOF GLASS
a. Remove the 4 nuts.
b. Pull the glass upward to remove it.

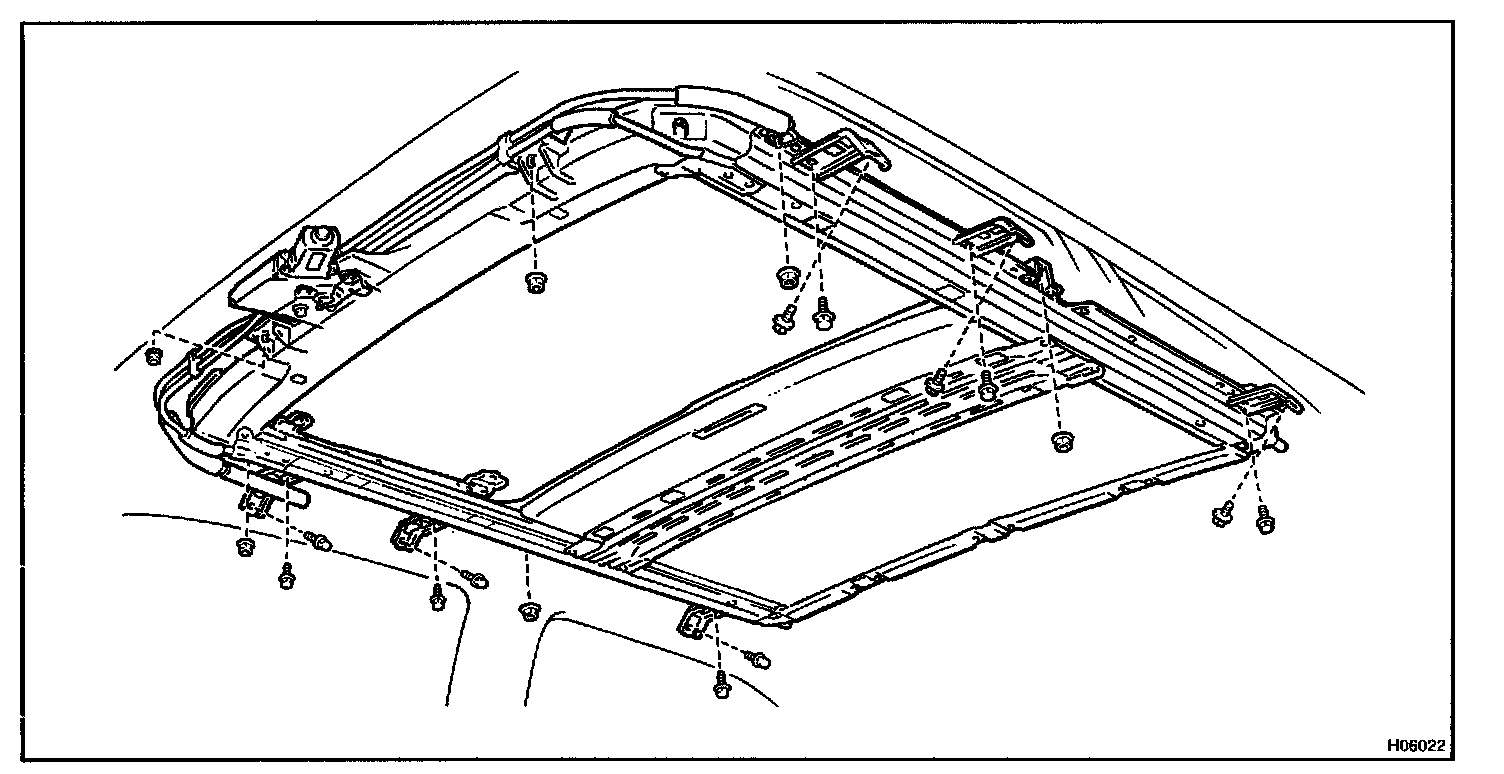

3. REMOVE SLIDING ROOF HOUSING
a. Disconnect the connector.
b. Remove the 4 clips and disconnect the 4 drain hoses from the housing.
c. Remove the 12 bolts and 6 brackets.
d. Remove the 6 nuts and sliding roof housing from the body.
INSTALLATION

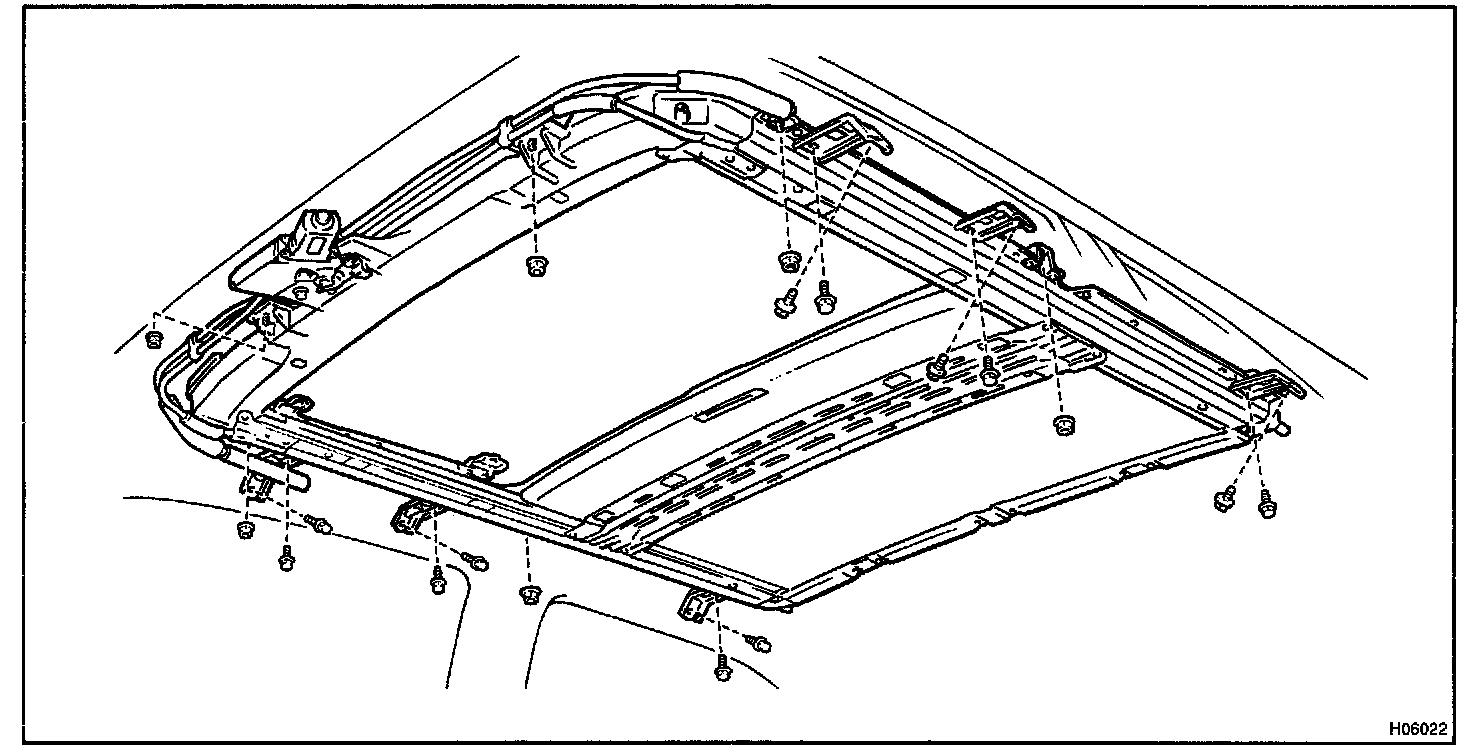

1. INSTALL SLIDING ROOF HOUSING
a. Install the sliding roof housing with the 6 nuts to the body.
Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
b. Install the 6 brackets with the 12 bolts.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
c. Connect the 4 drain hoses with the 4 clips to the housing.

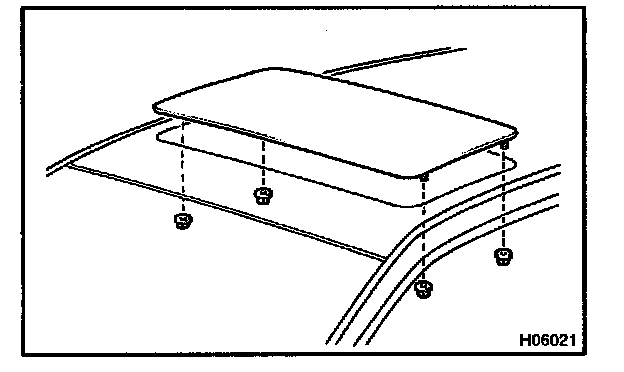

2. INSTALL SLIDING ROOF GLASS
Install the sliding roof glass with the 4 nuts.
Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
3. INSTALL ROOF HEADLINING
