Glove Box - Rattling Noise

NVH
NV010-00

December 22, 2000

Title:
GLOVE BOX RATTLE NOISE

Models:
'99- '01 RX 300

Introduction

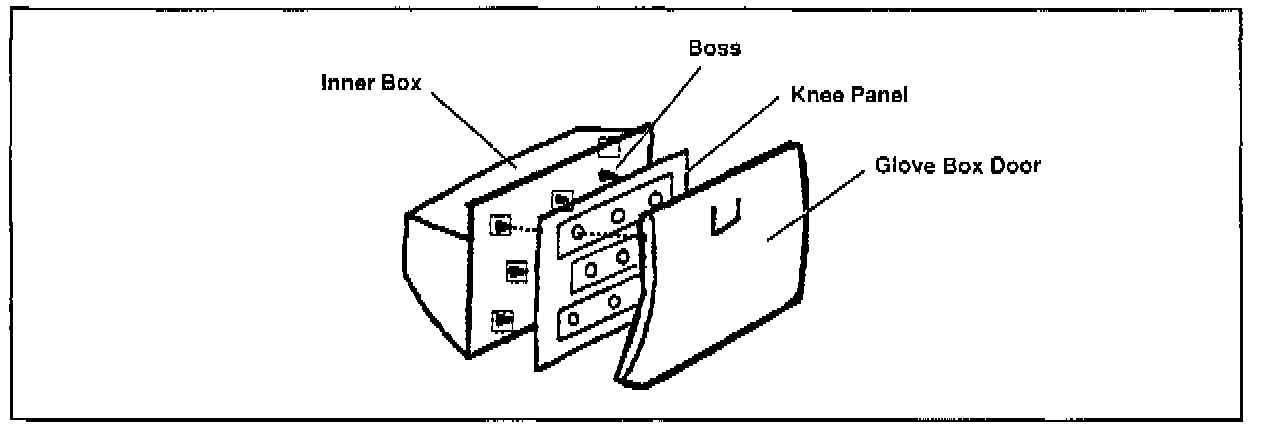

For vehicles that exhibit a rattle noise in the glove box caused by vibration between the knee panel and glove box door, the following production change is being provided.

Applicable Vehicles
^ 1999 - 2001 model year RX 300 vehicles.





Production Change Information

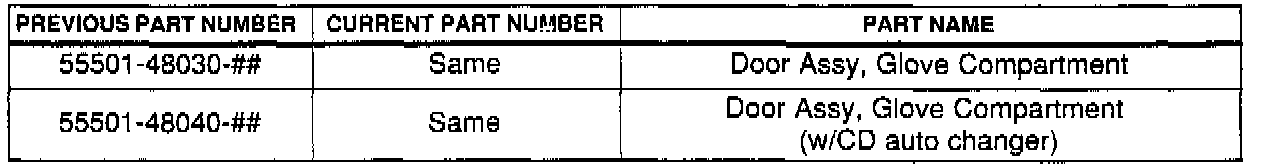

Parts Information





Warranty Information

Applicable Warranty*:
This repair is covered under the Lexus Basic warranty. This warranty is in effect for 48 months or 50,000 miles whichever occurs first, from the vehicle's in-service date.

*Warranty application is limited to correction of a problem based upon a customer's specific complaint.

Repair Procedure

1. Replace Glove Compartment Door Assembly with the new part.

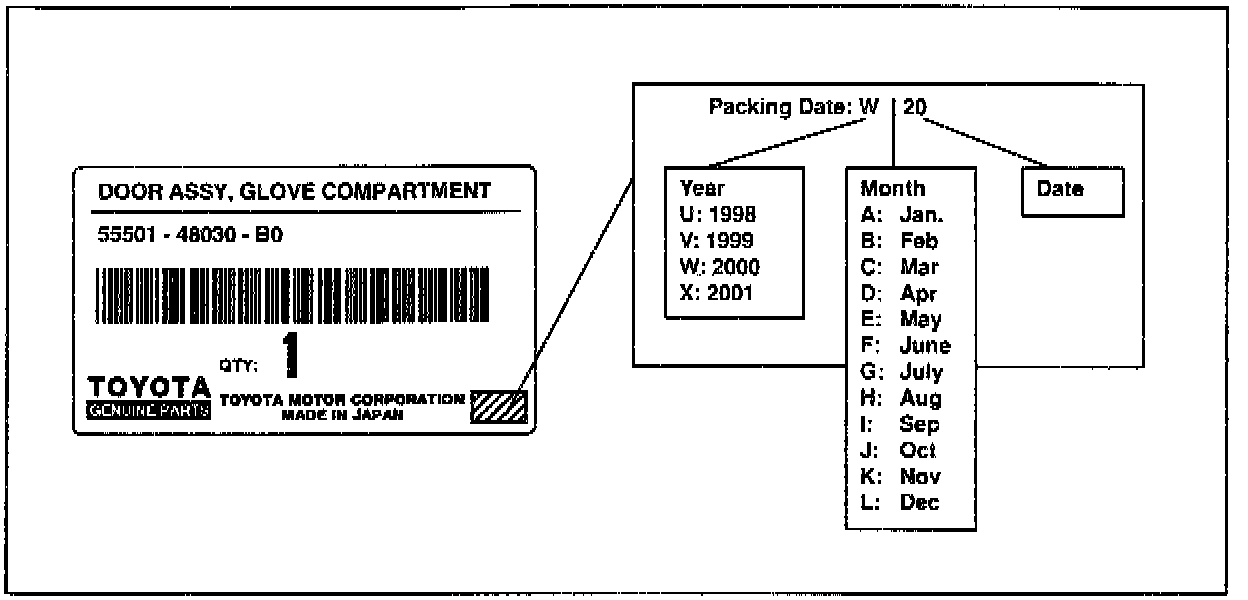

2. The new part can be distinguished by the packing date printed on the parts number label as shown.
