Rear Right Door Control System
Rear Right Door Control System

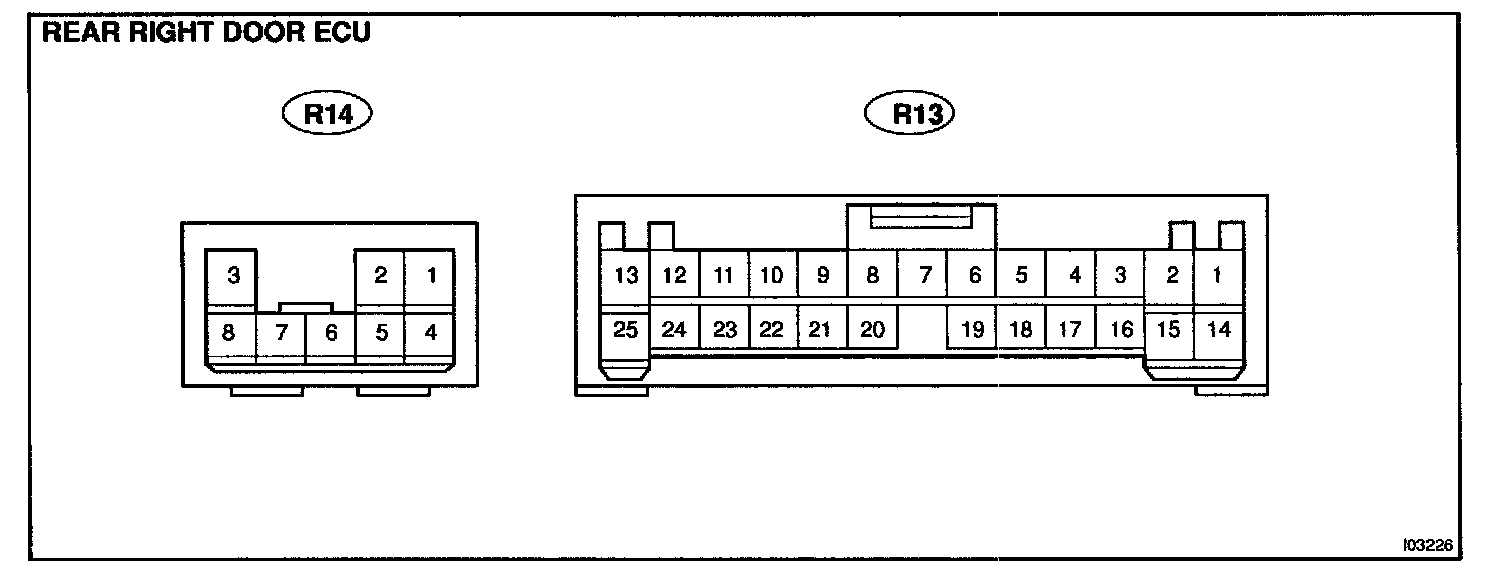

ECU Views - (R13, R14):

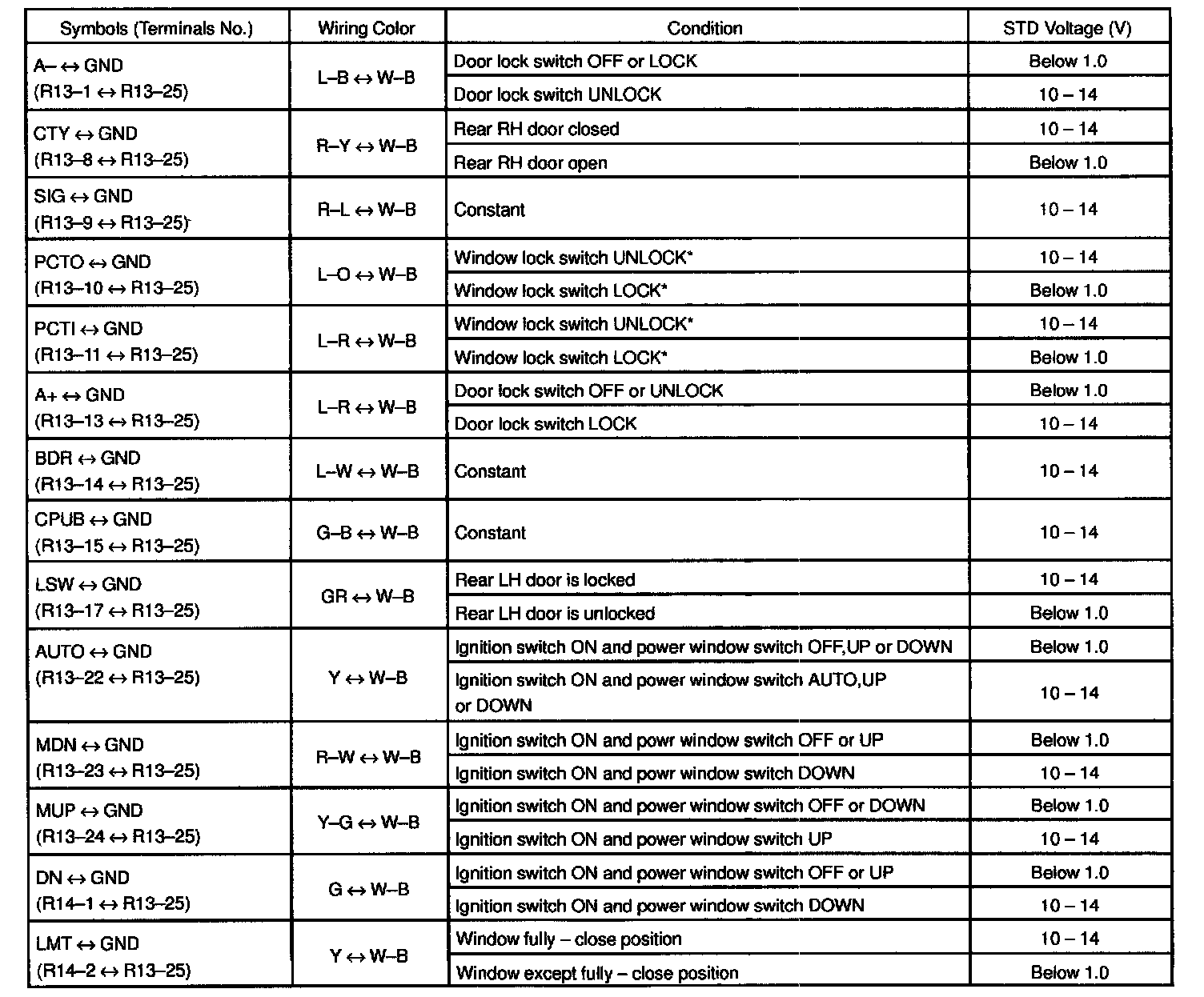

ECU Pinouts - (R13, R14) (Part 1 Of 2):

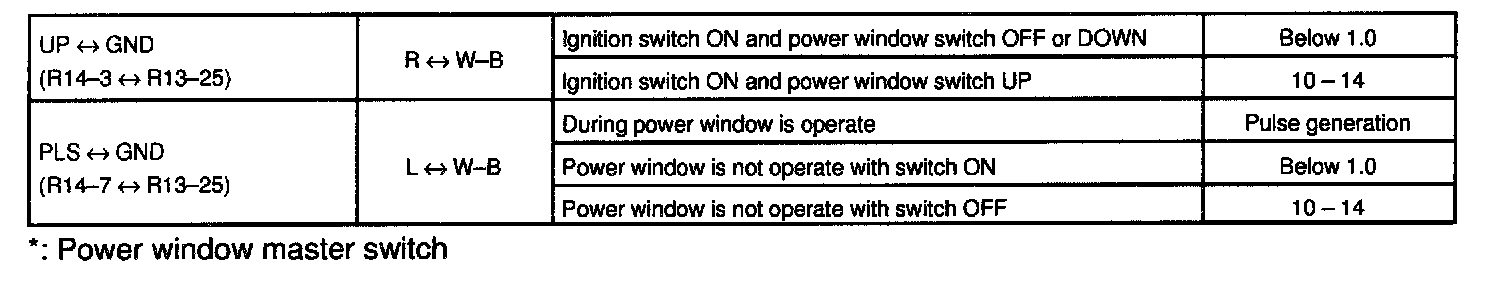

ECU Pinouts - (R13, R14) (Part 2 Of 2):
ECU TERMINAL VALUES
