Rear Left Door Control System
Rear Left Door Control System

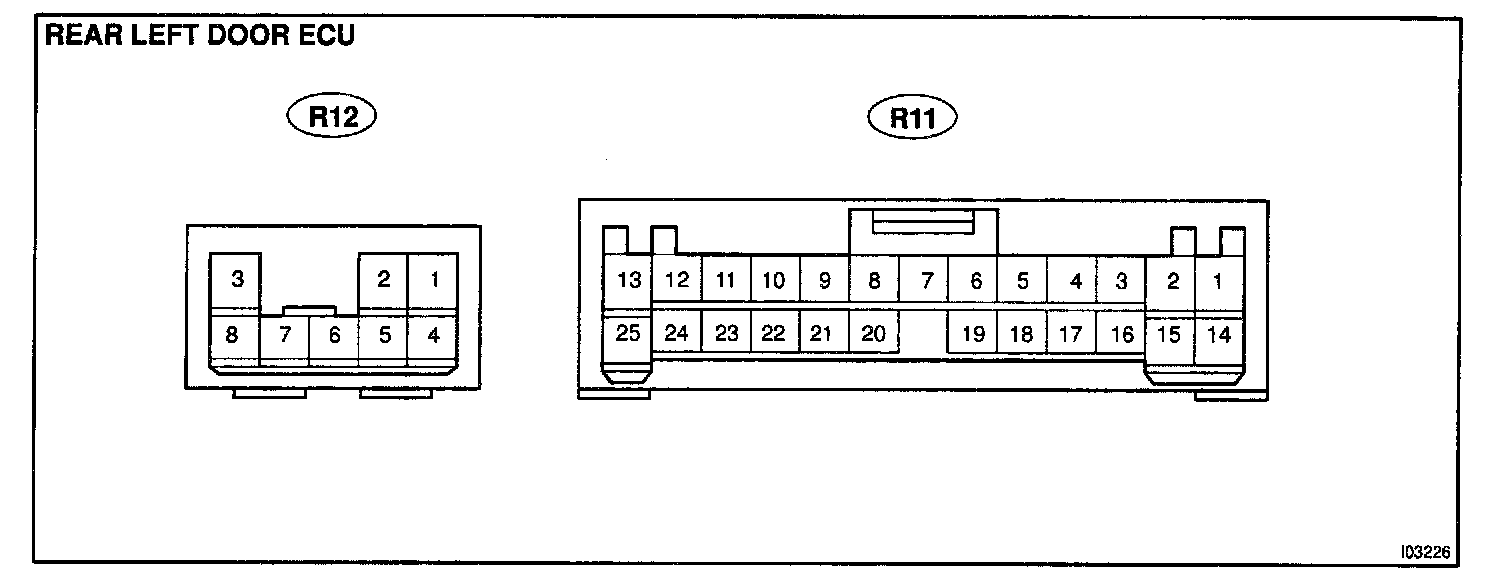

ECU Views - (R11, R12):

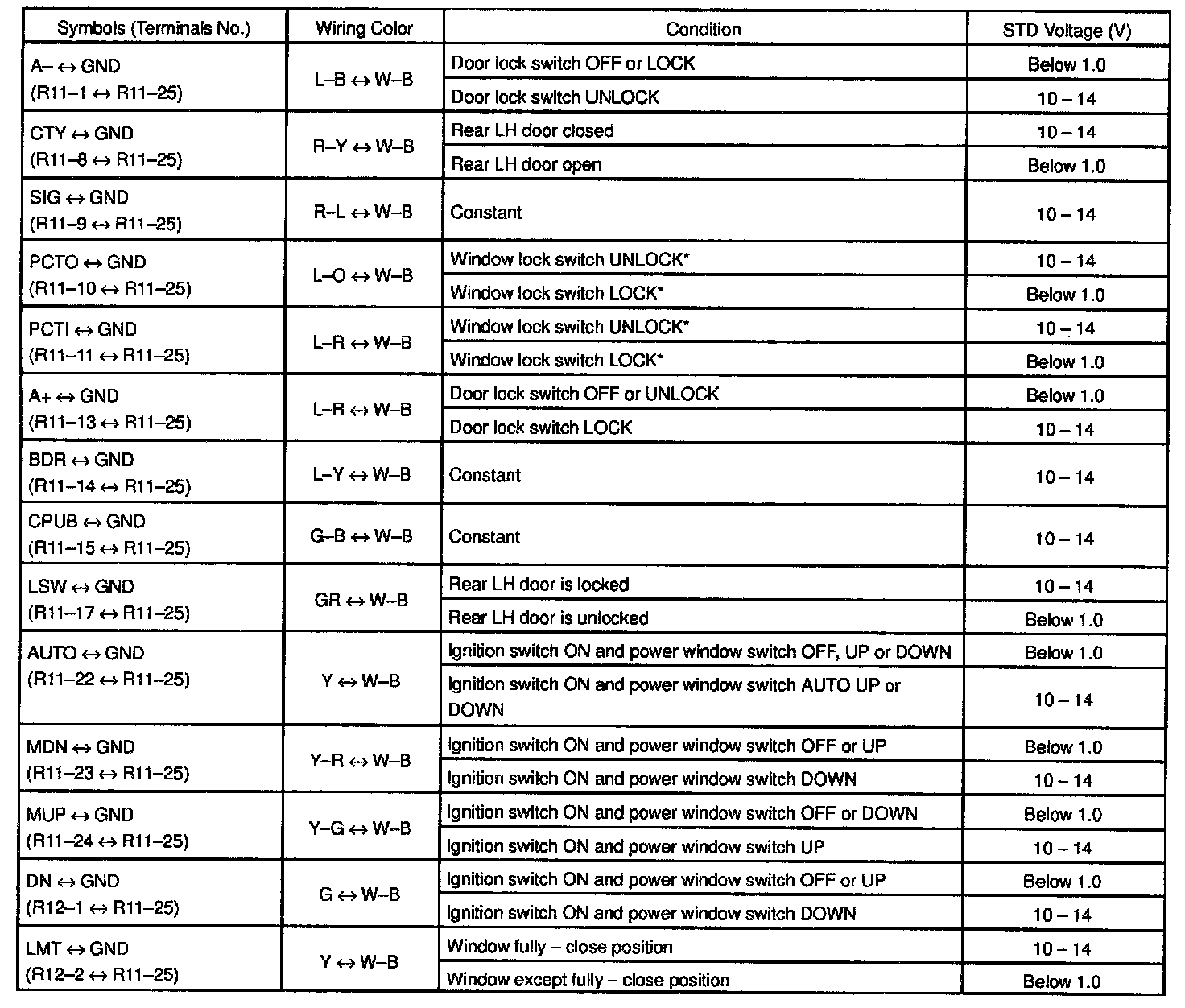

ECU Pinouts - (R11, R12) (Part 1 Of 2):
ECU TERMINAL VALUES
