Door Courtesy Switch Circuit
CIRCUIT DESCRIPTIONThe door courtesy switch turns on when the door is opened and turns off when door is closed.

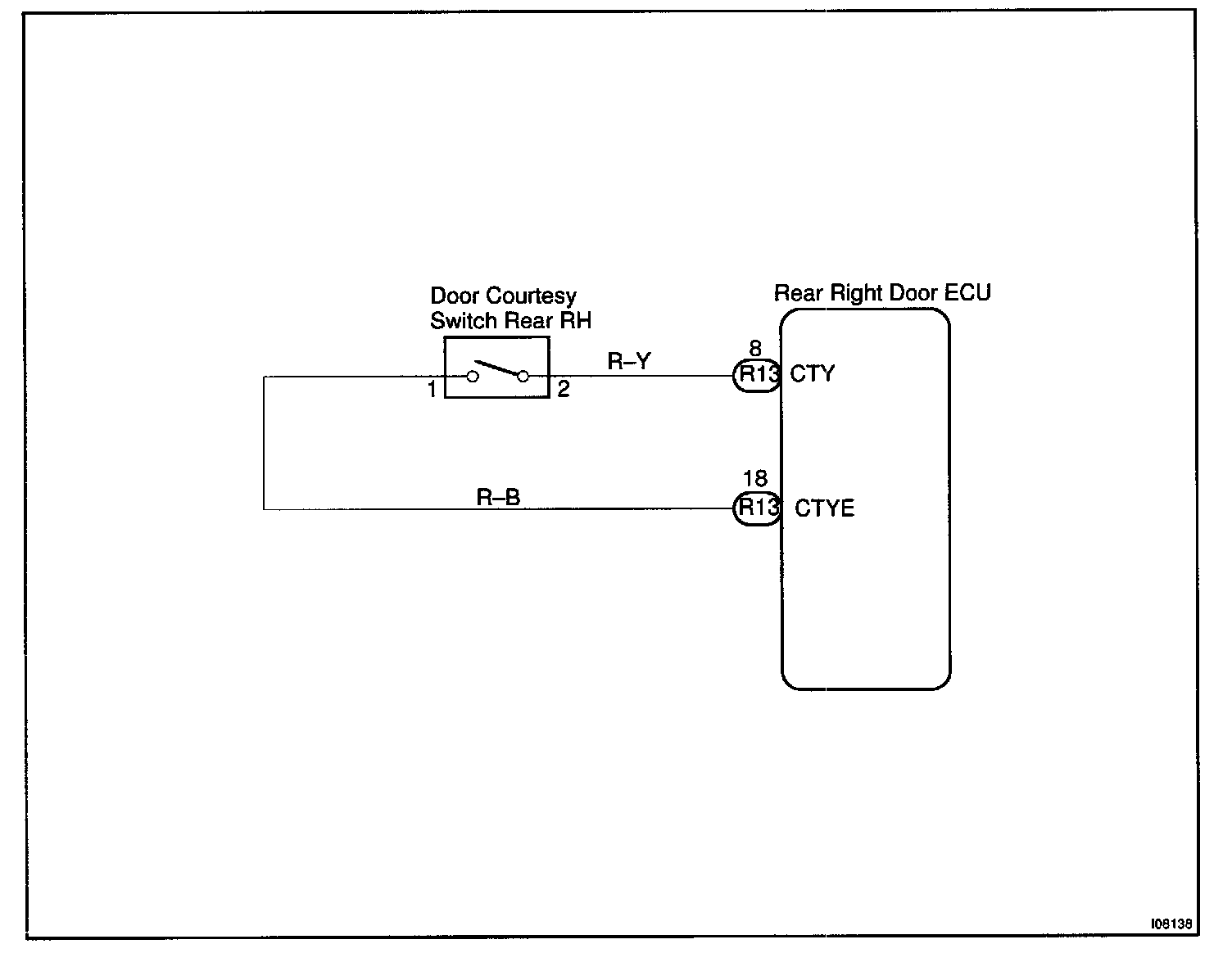

Wiring Diagram:

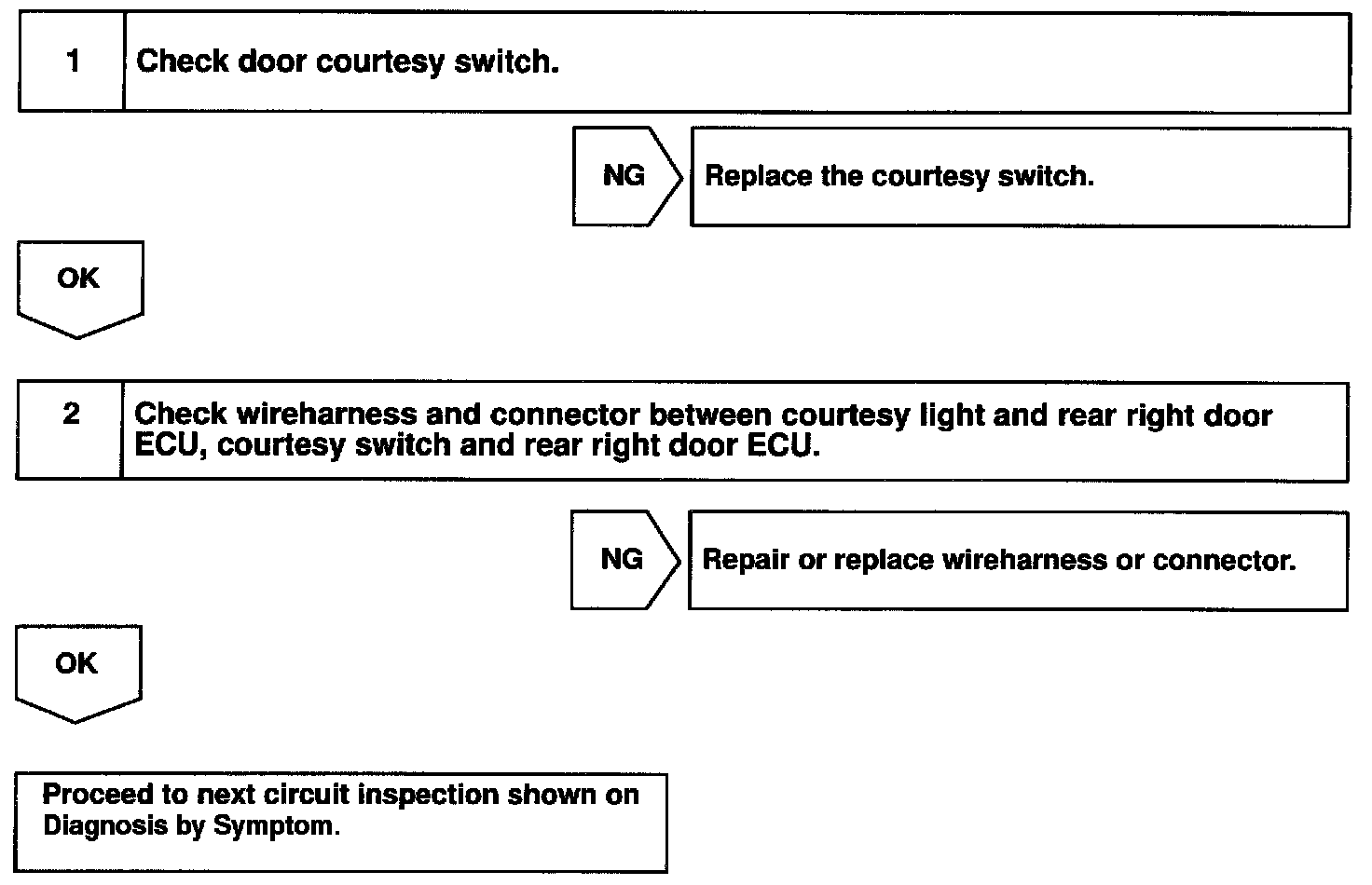

Steps 1 - 2:
INSPECTION PROCEDURE
The door courtesy switch turns on when the door is opened and turns off when door is closed.
INSPECTION PROCEDURE
