Pinout Values and Diagnostic Parameters

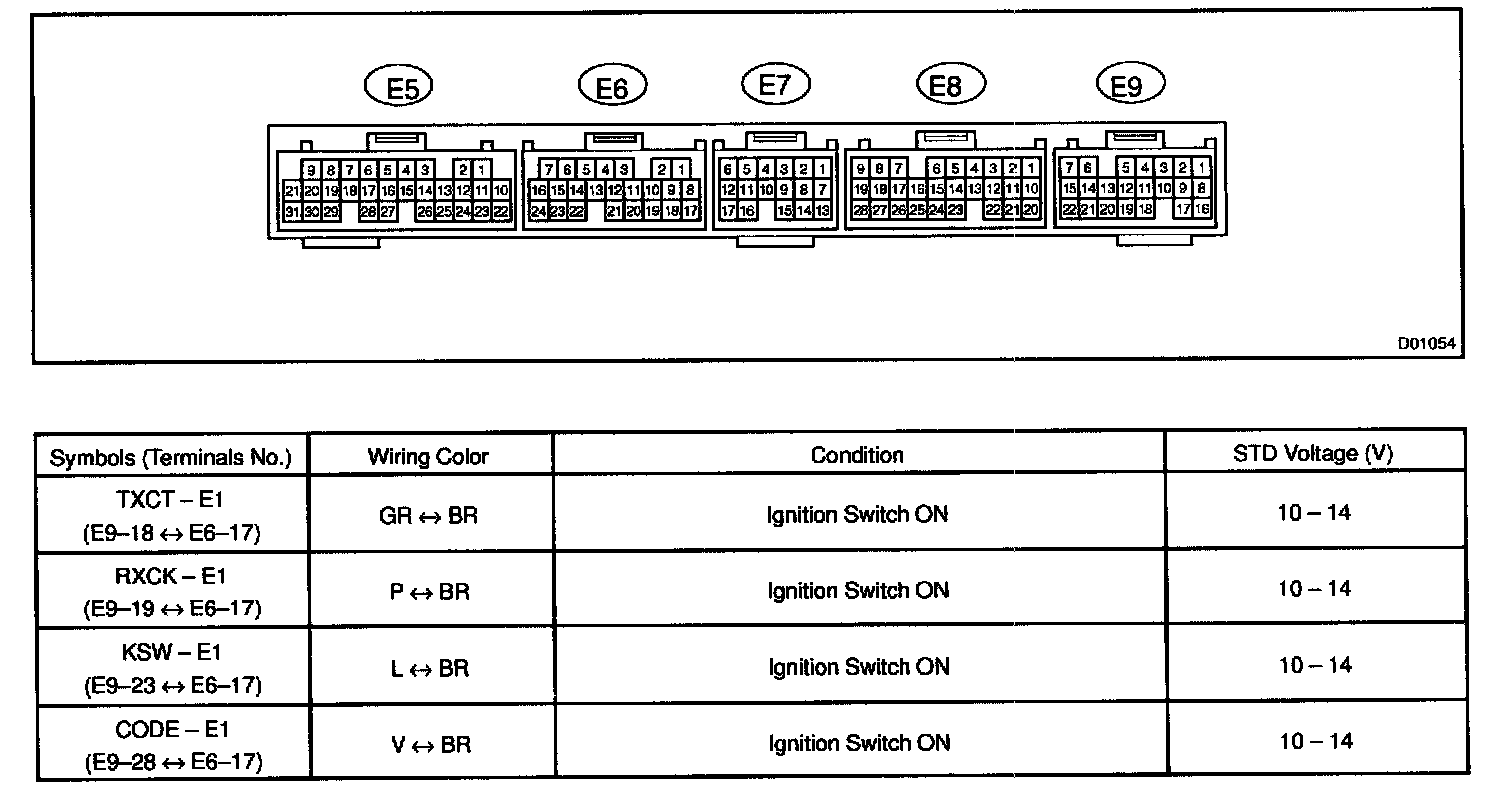

Terminals Of ECM - (E5, E6, E7, E8, E9):




ECM TERMINAL VALUES
