DTC 76

CIRCUIT DESCRIPTION
This DTC is output when communication stops between A/C and combination meter integrated ECU and Body ECU.

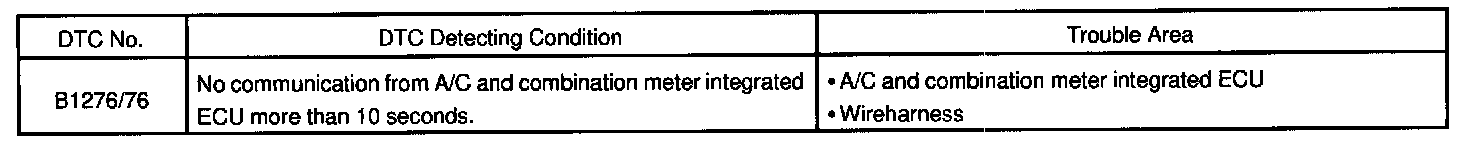

Detecting Condition:

Wiring Diagram:

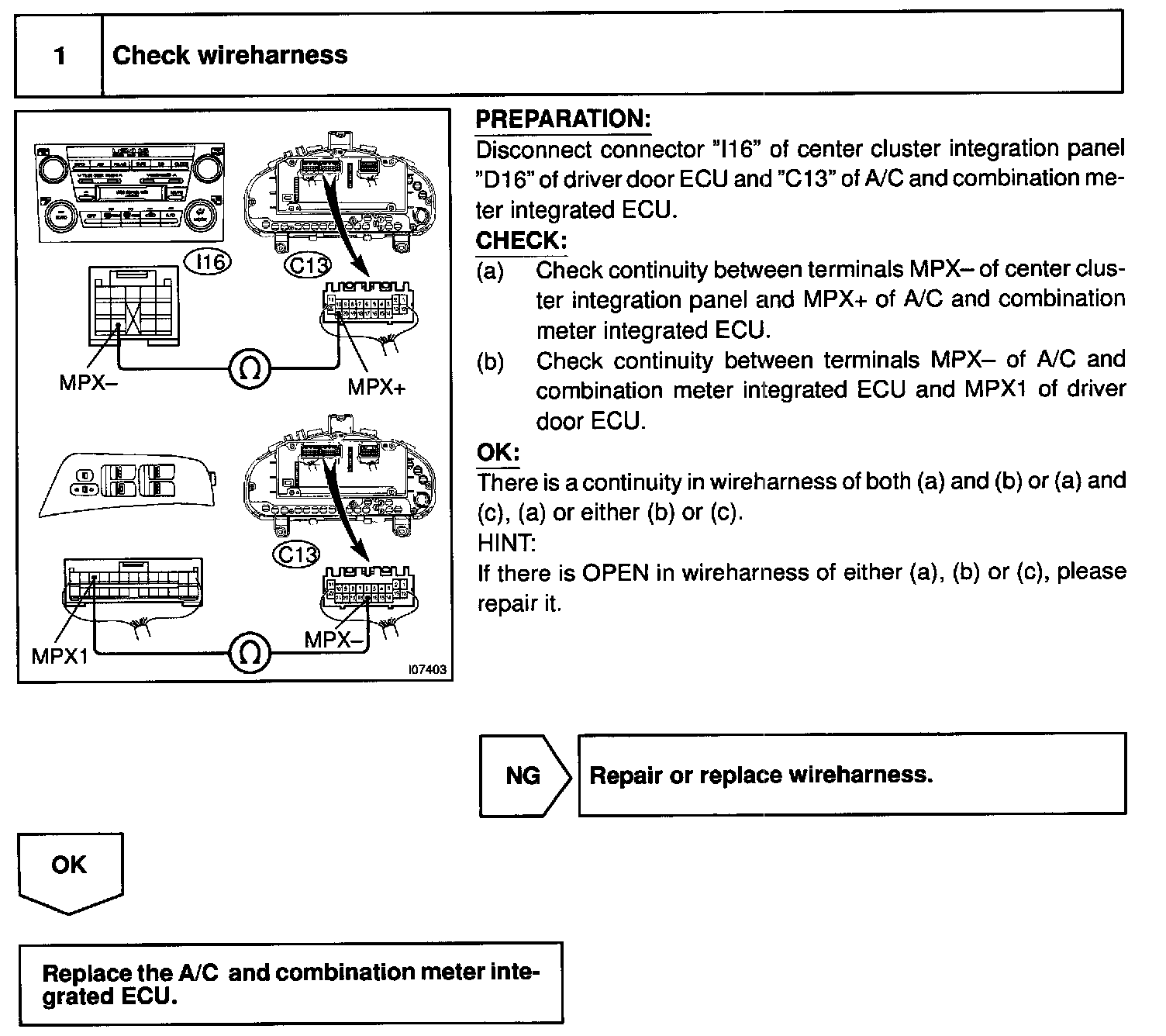

Step 1:

INSPECTION PROCEDURE
