DTC 51

CIRCUIT DESCRIPTION

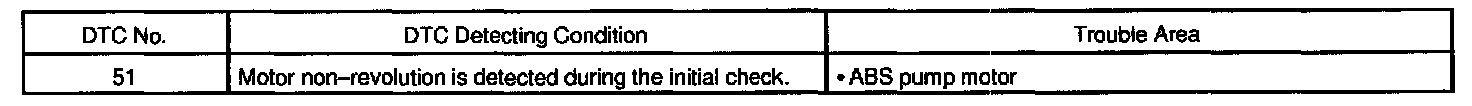

DETECTING CONDITION

Fail Safe Function:
If trouble occurs in the ABS & TRAC pump motor, the ECU cuts off current to the ABS & TRAC solenoid relay and prohibits ABS control and TRAC control.

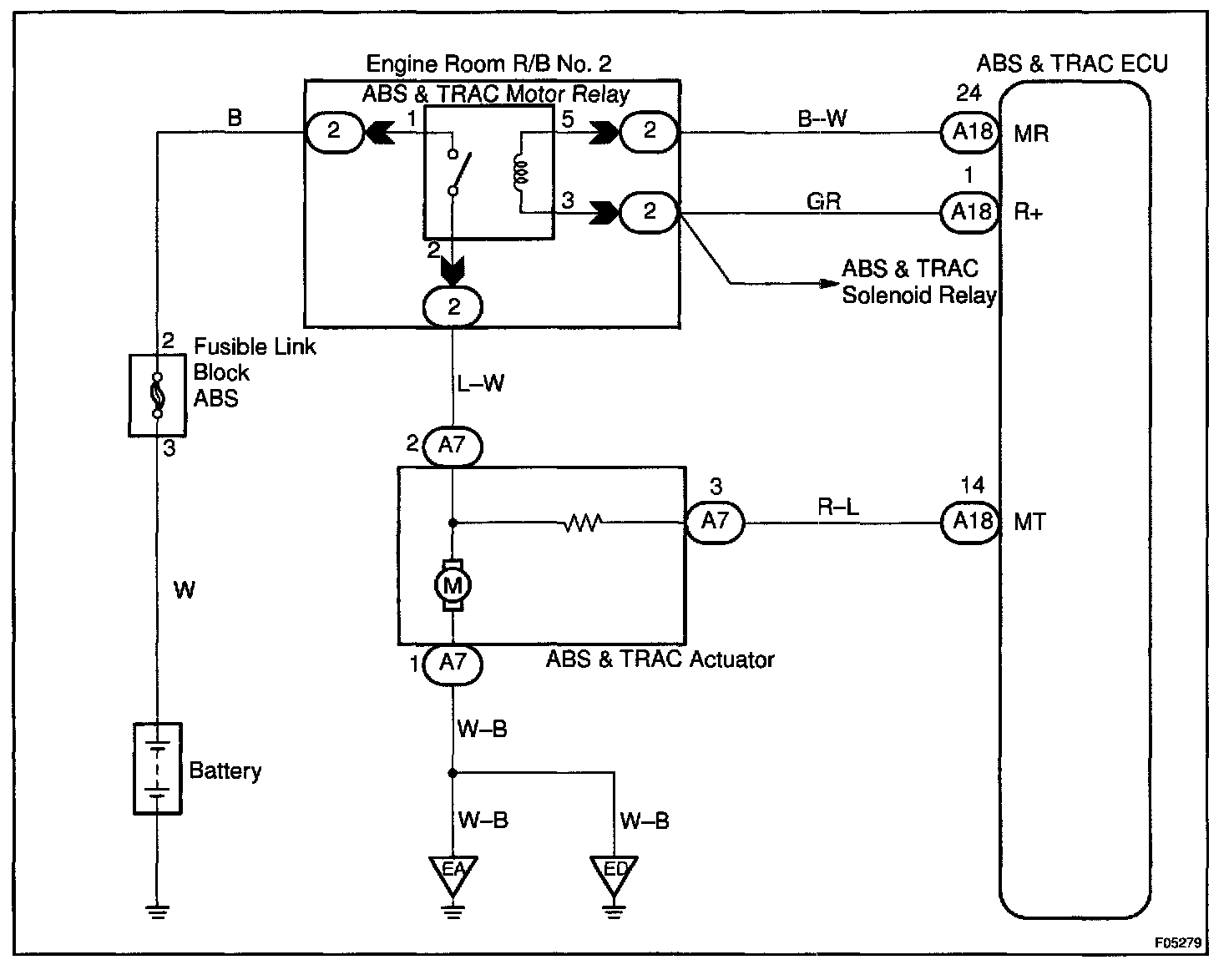

WIRING DIAGRAM

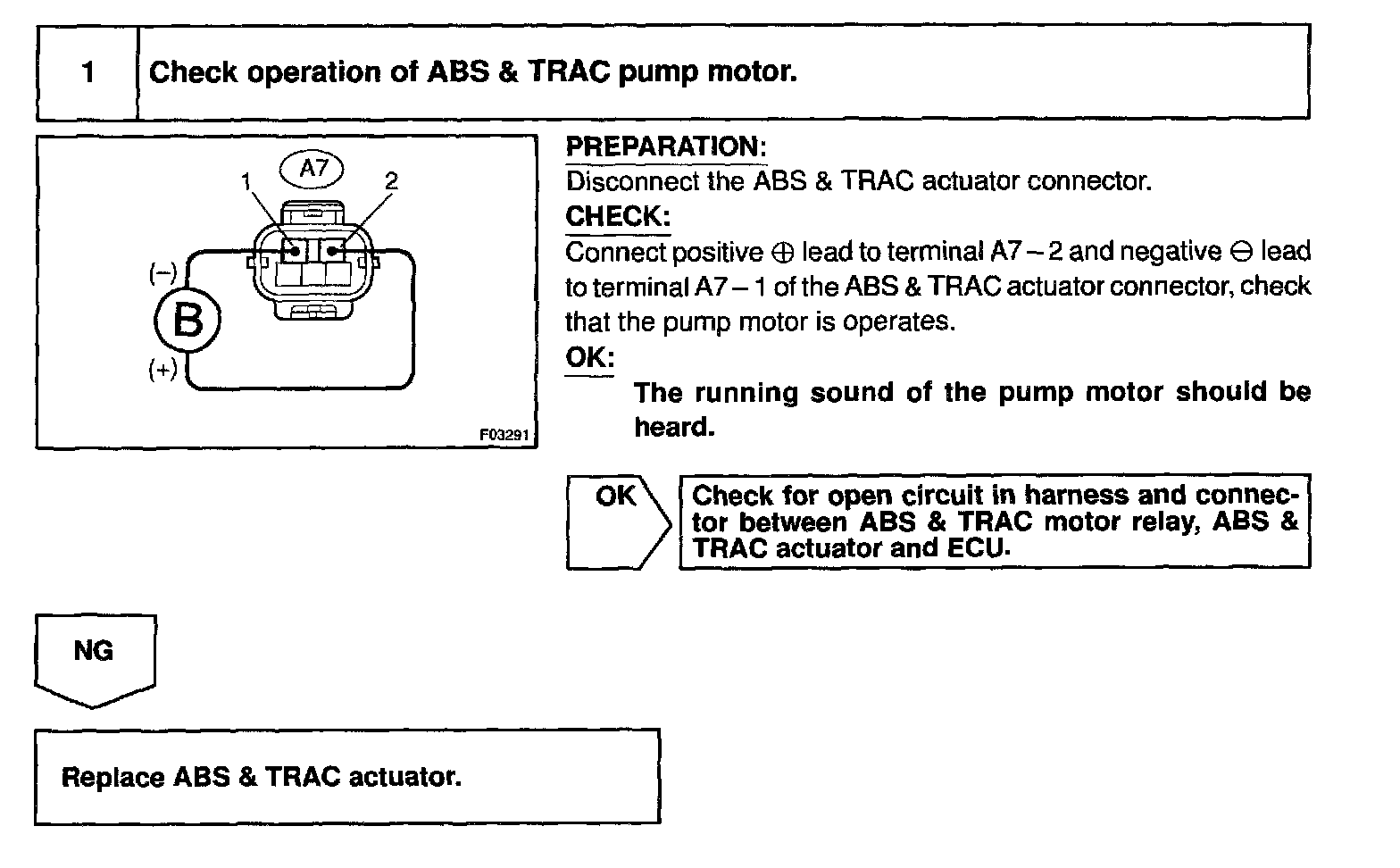

Step 1:

INSPECTION PROCEDURE
