SAE Controlled Trouble Codes

HINT: Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.
If a malfunction code is displayed during the DTC check in check mode, check the circuit for that code listed in the table.

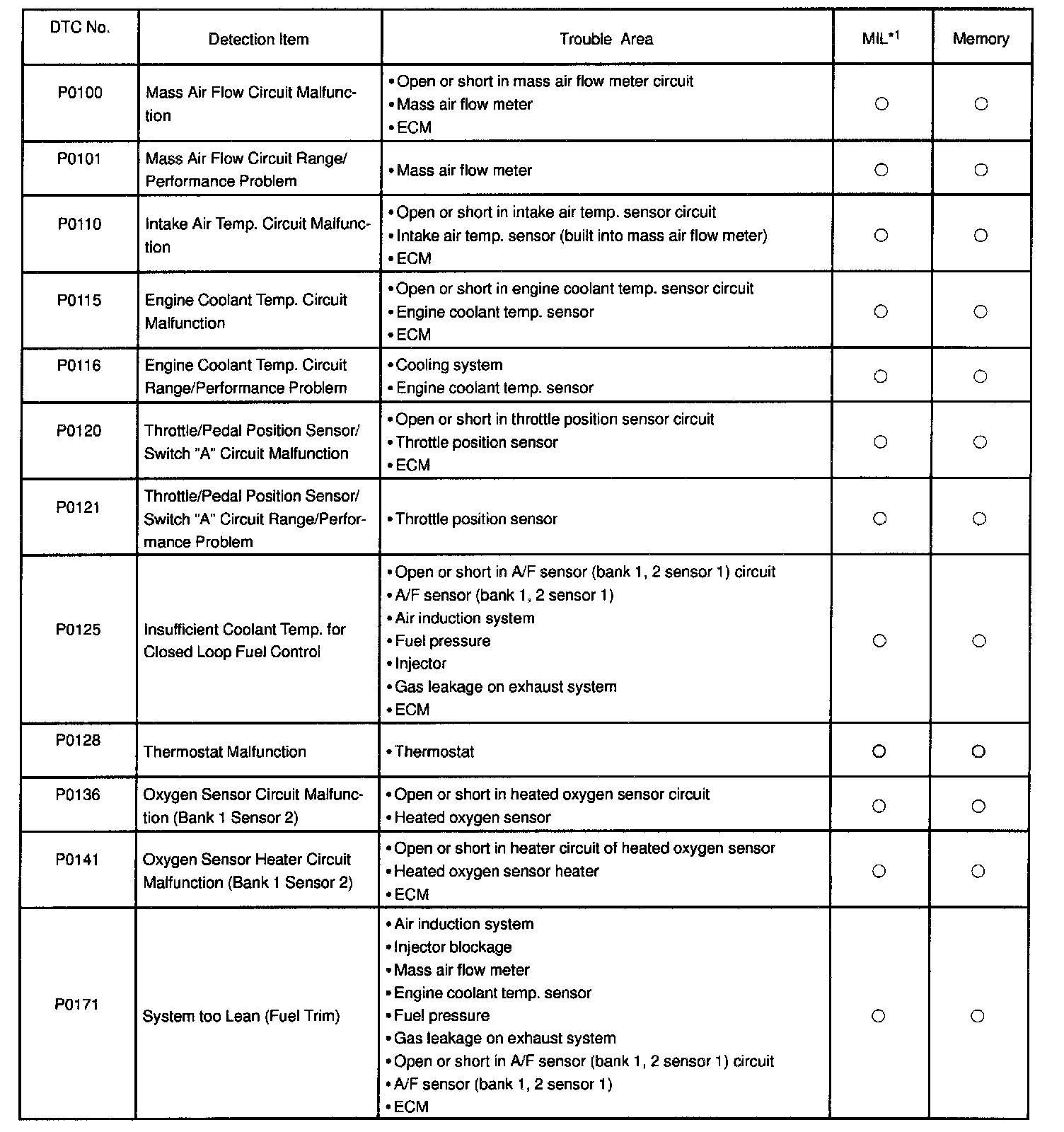

P0100 - P0171:

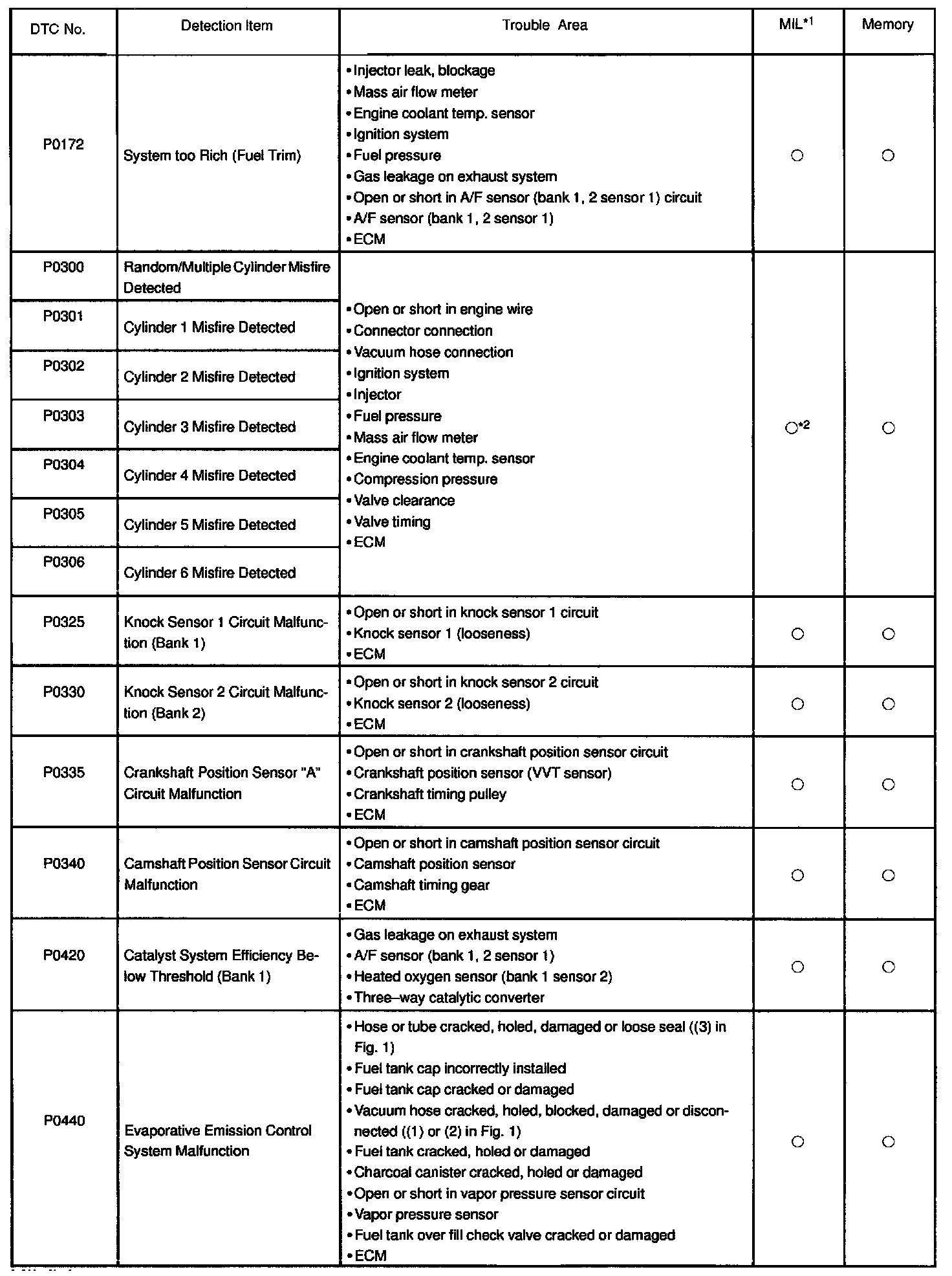

P0172 - P0440:

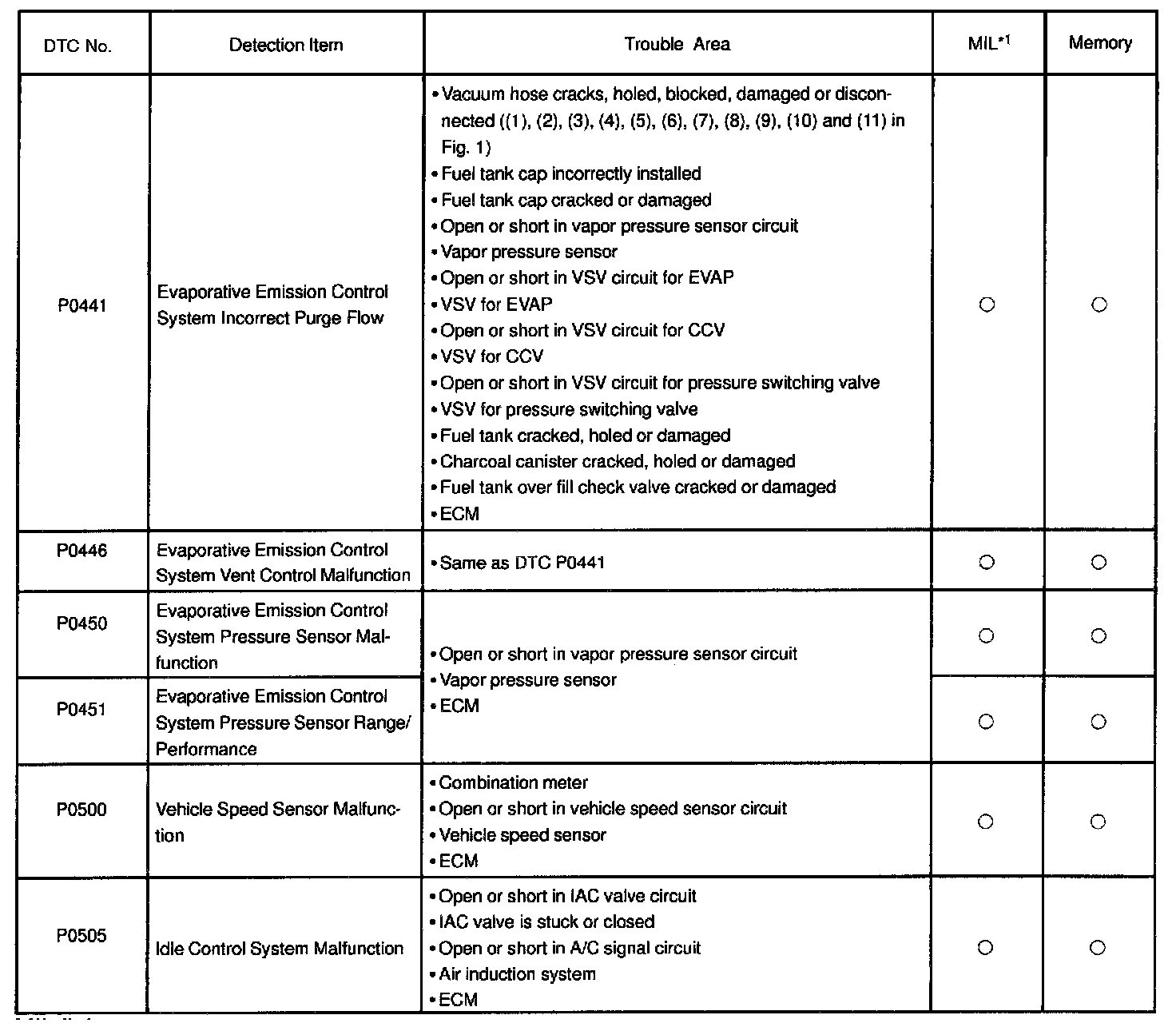

P0441 - P0505:

*1: MIL lights up
*2: MIL lights up or blinking
