Lexus Truck
>>
2000
>>
RX 300 AWD V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Automatic Transmission System
Automatic Transmission System

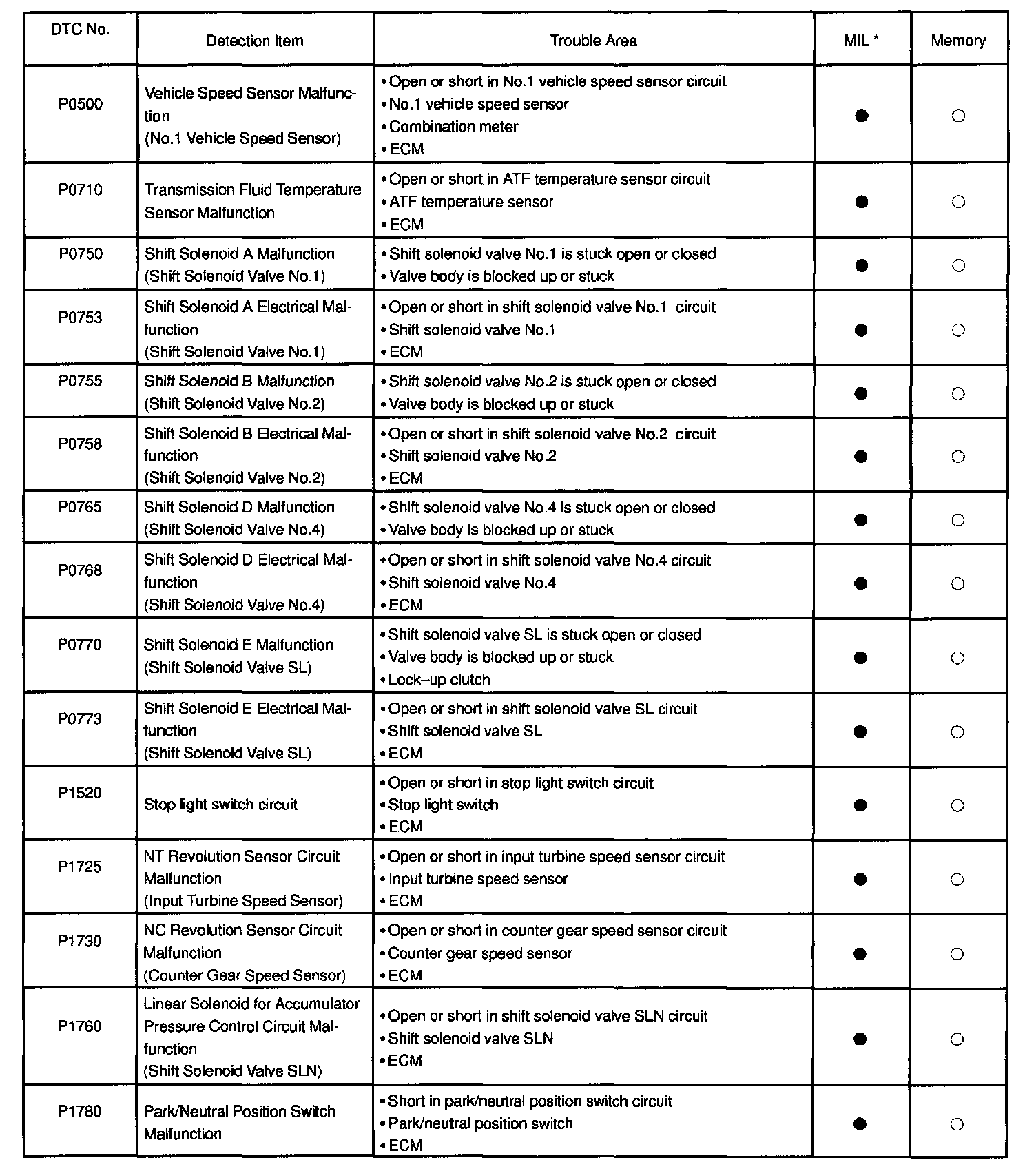

P0500 - P1780:
If a DTC is displayed during the DTC check, check the circuit listed for that code in the table.
* : -...MIL does not light /O...MIL light up
