B1442

CIRCUIT DESCRIPTION
The air inlet damper control servomotor is controlled by the A/C ECU (Combination meter ECU) and moves the air inlet damper to the desired position.

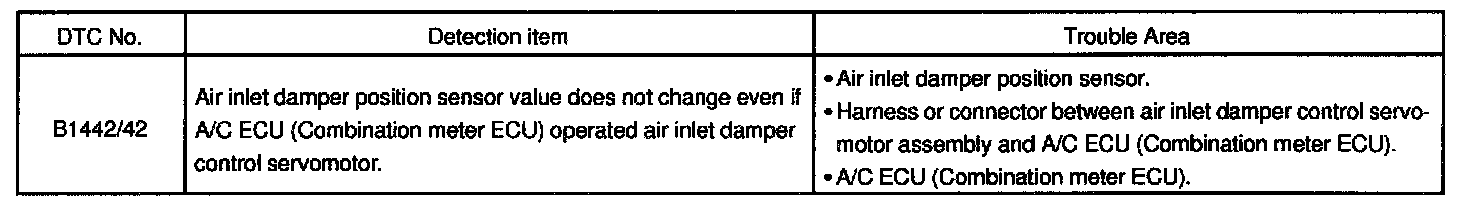

Detection Item:

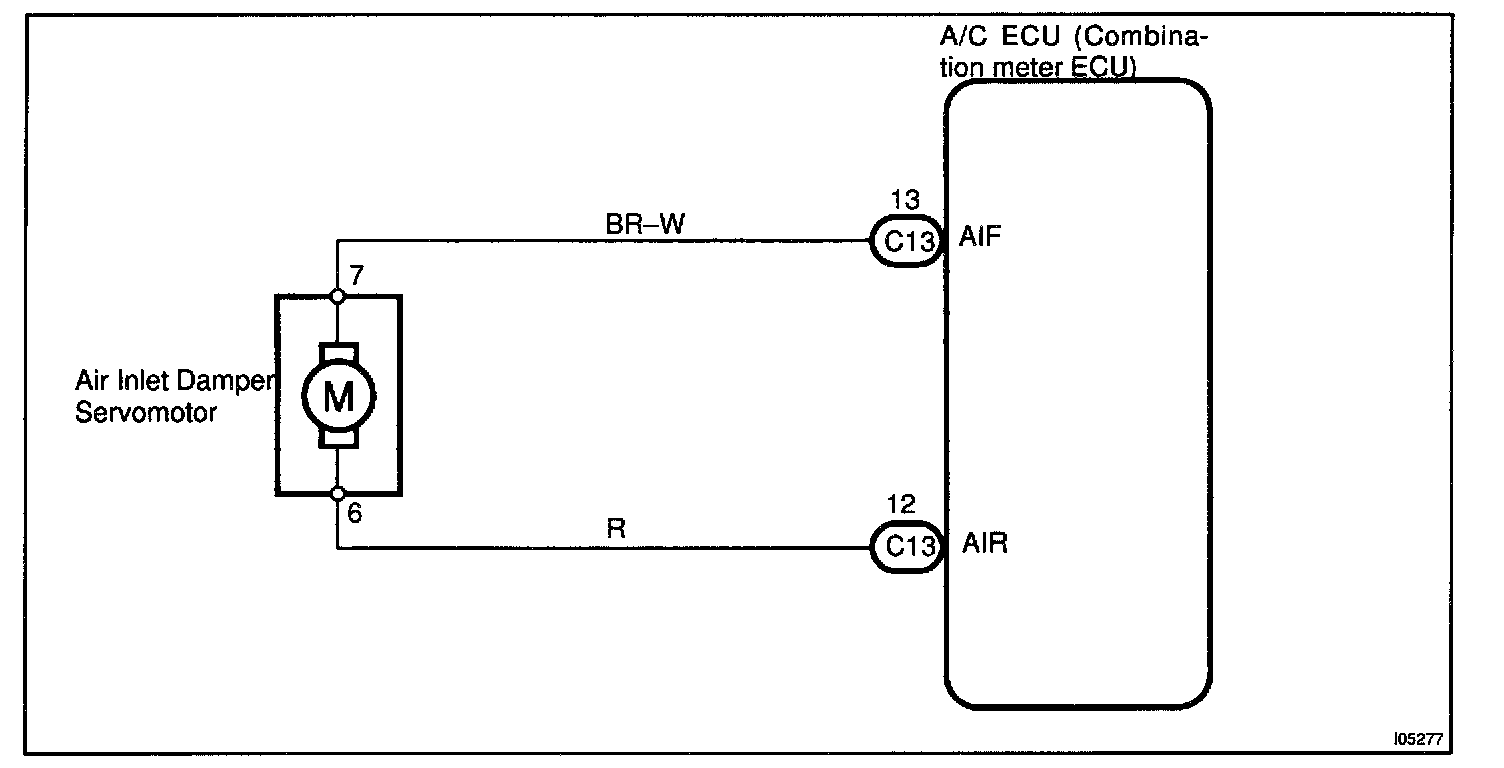

Wiring Diagram:

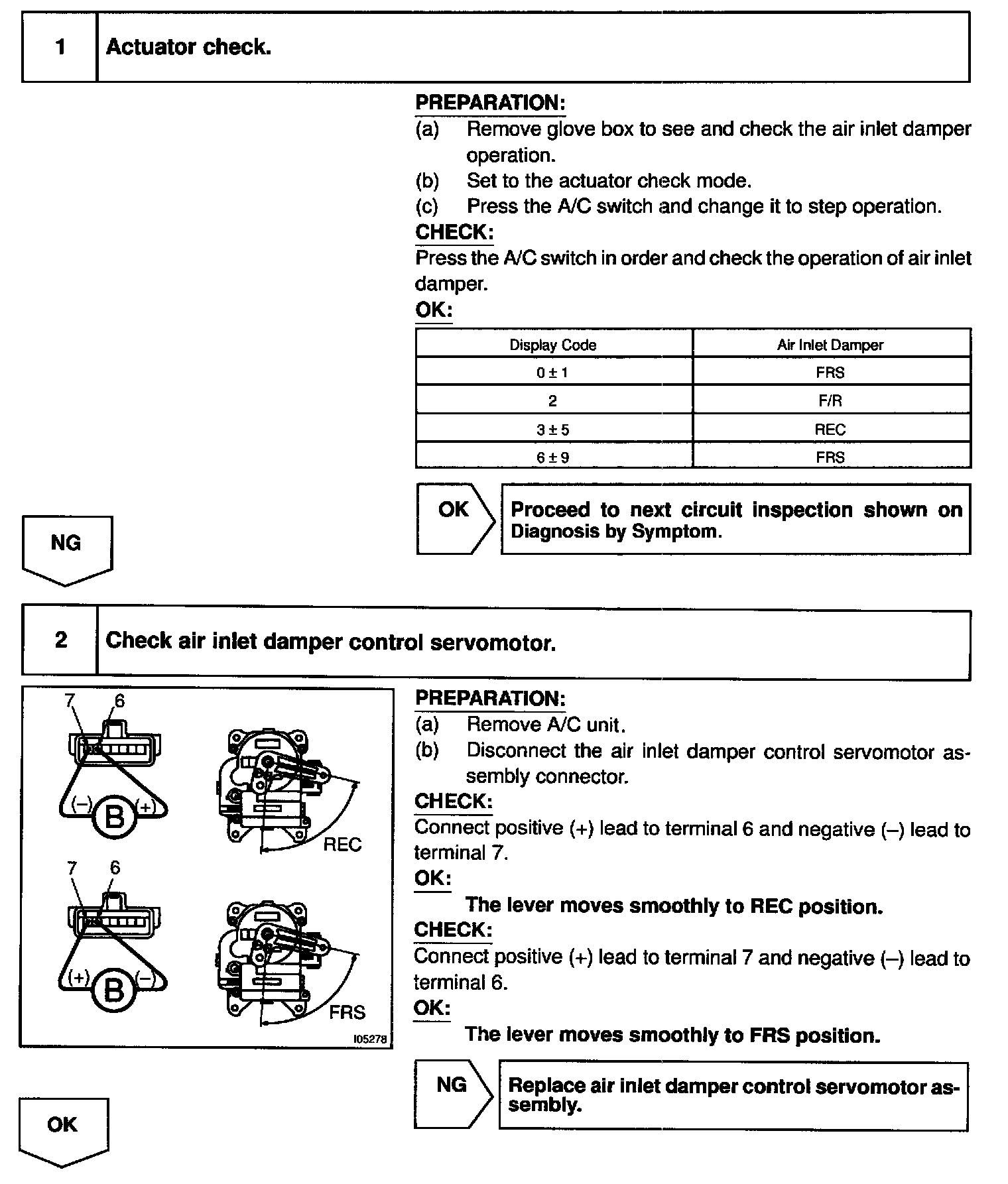

Steps 1 - 2:

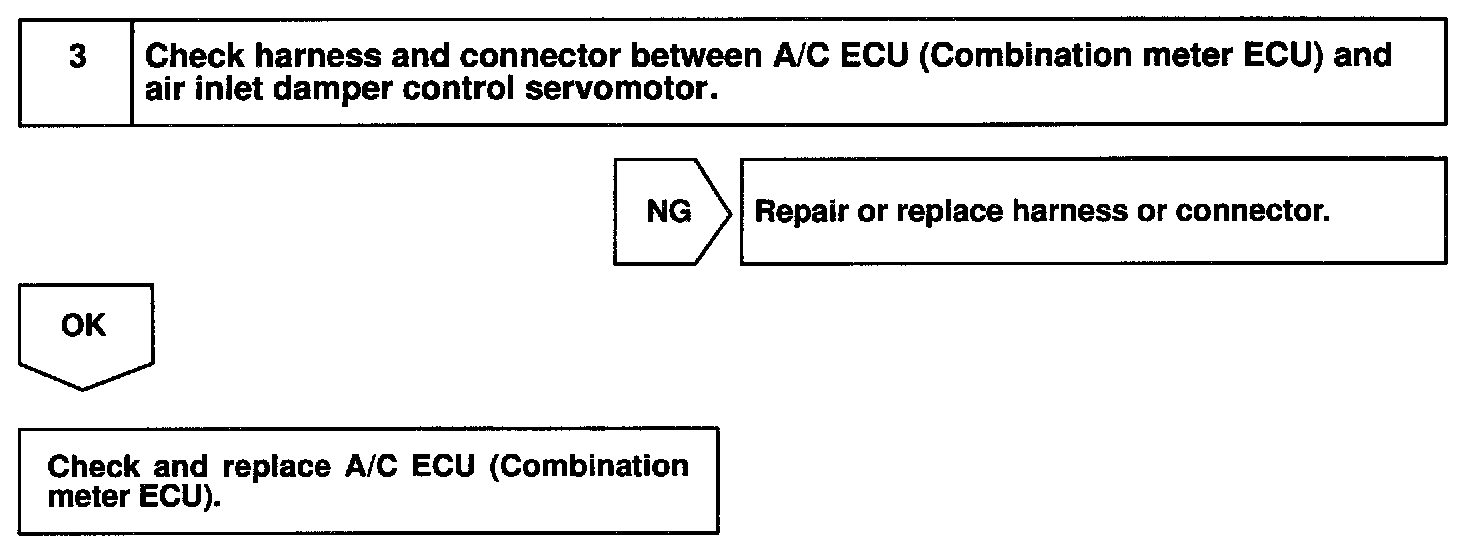

Step 3:

INSPECTION PROCEDURE
