B1433

CIRCUIT DESCRIPTION




This sensor detects the position of the air mix damper and sends the appropriate signals to the A/C ECU (Combination meter ECU).

The position sensor is built into the air outlet damper control servomotor assembly.

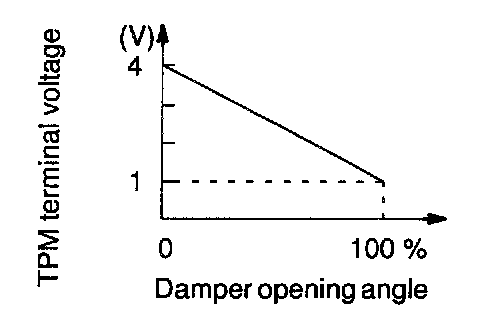

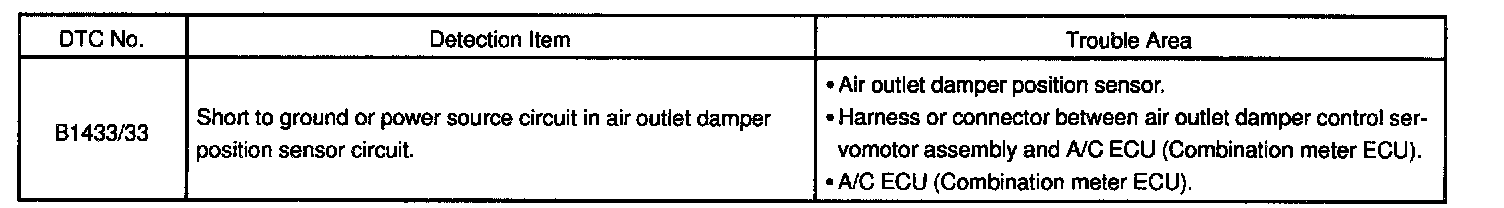

Detection Item:

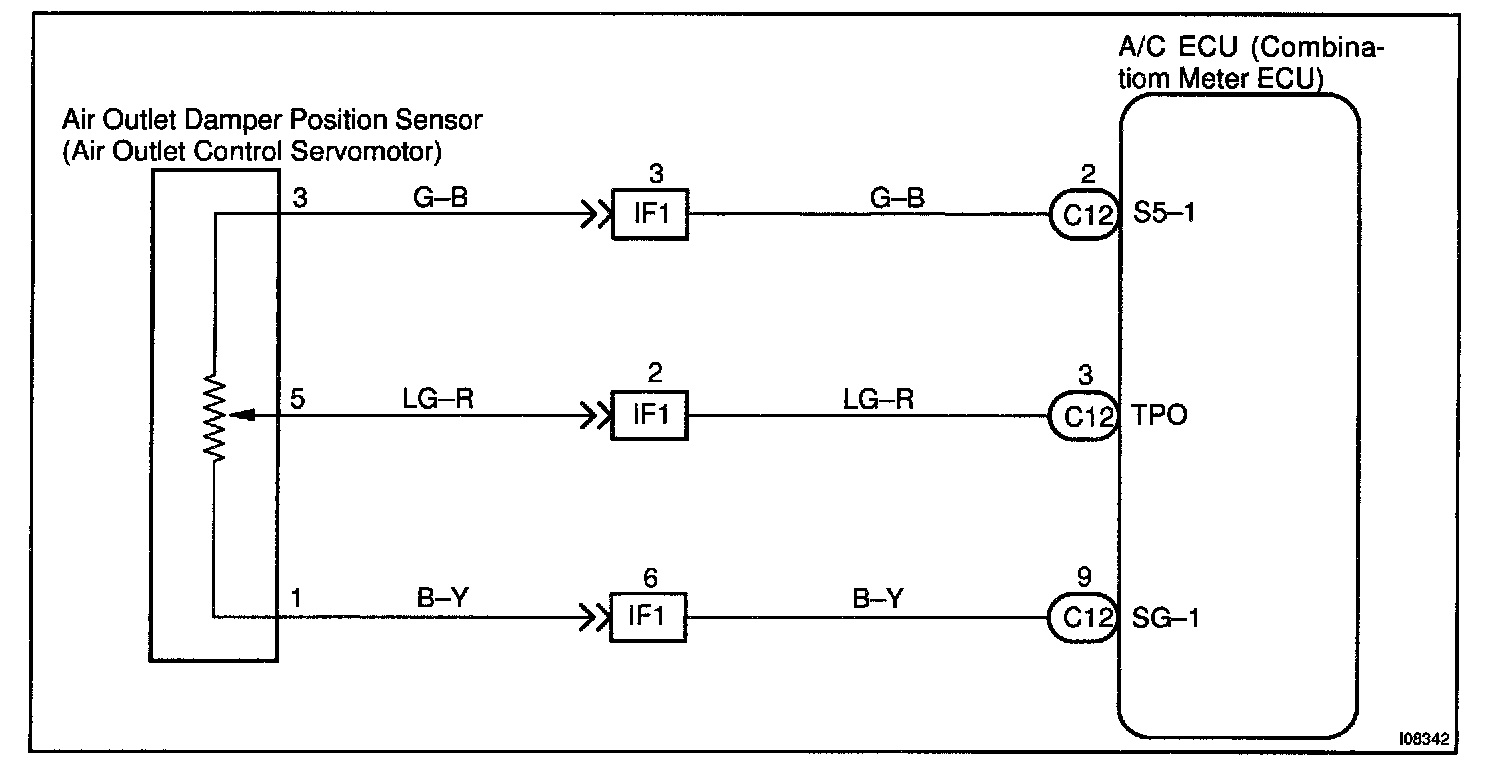

Wiring Diagram:

Steps 1 - 2:

Steps 3 - 4:

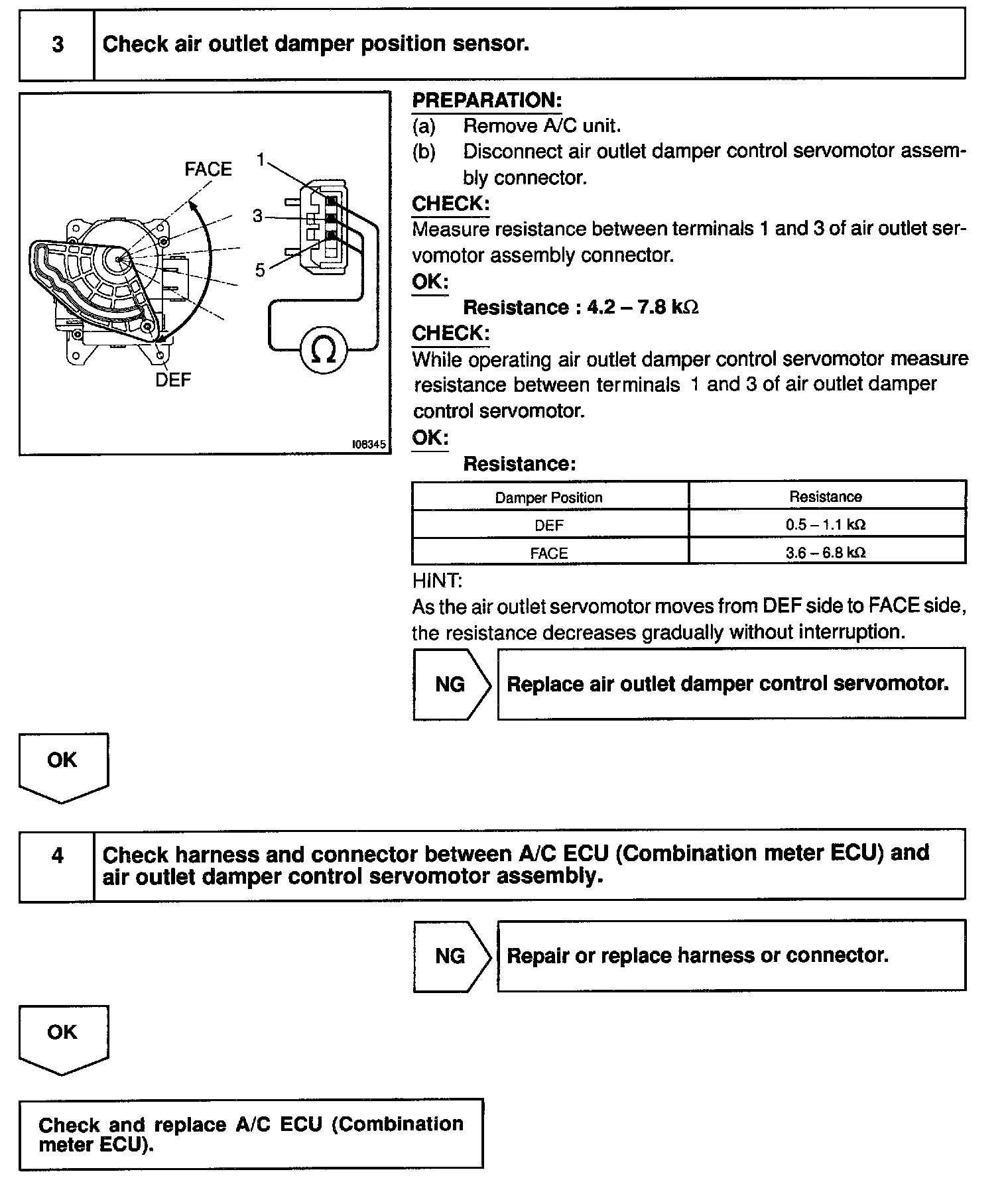

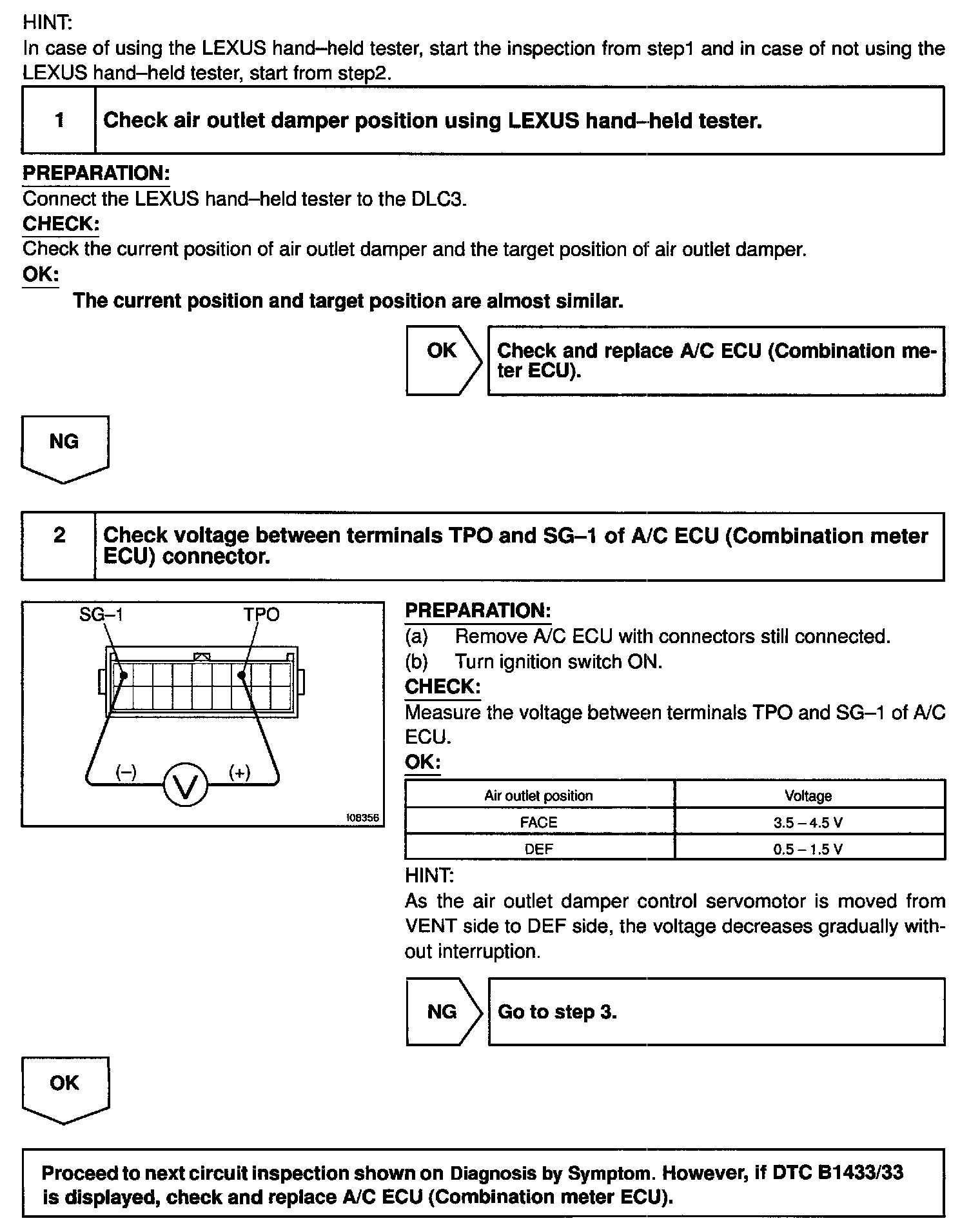

INSPECTION PROCEDURE
