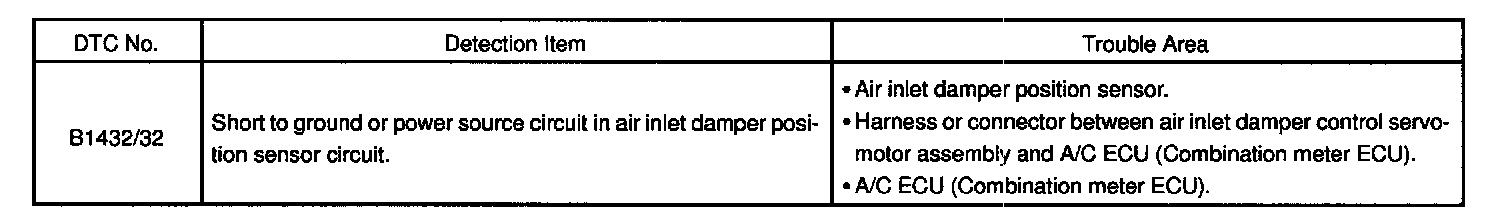

B1432

CIRCUIT DESCRIPTION




This sensor detects the position of the air inlet damper and sends the appropriate signals to the A/C ECU (Combination meter ECU).

The position sensor is built into the air inlet damper control servomotor assembly.

Detection Item:

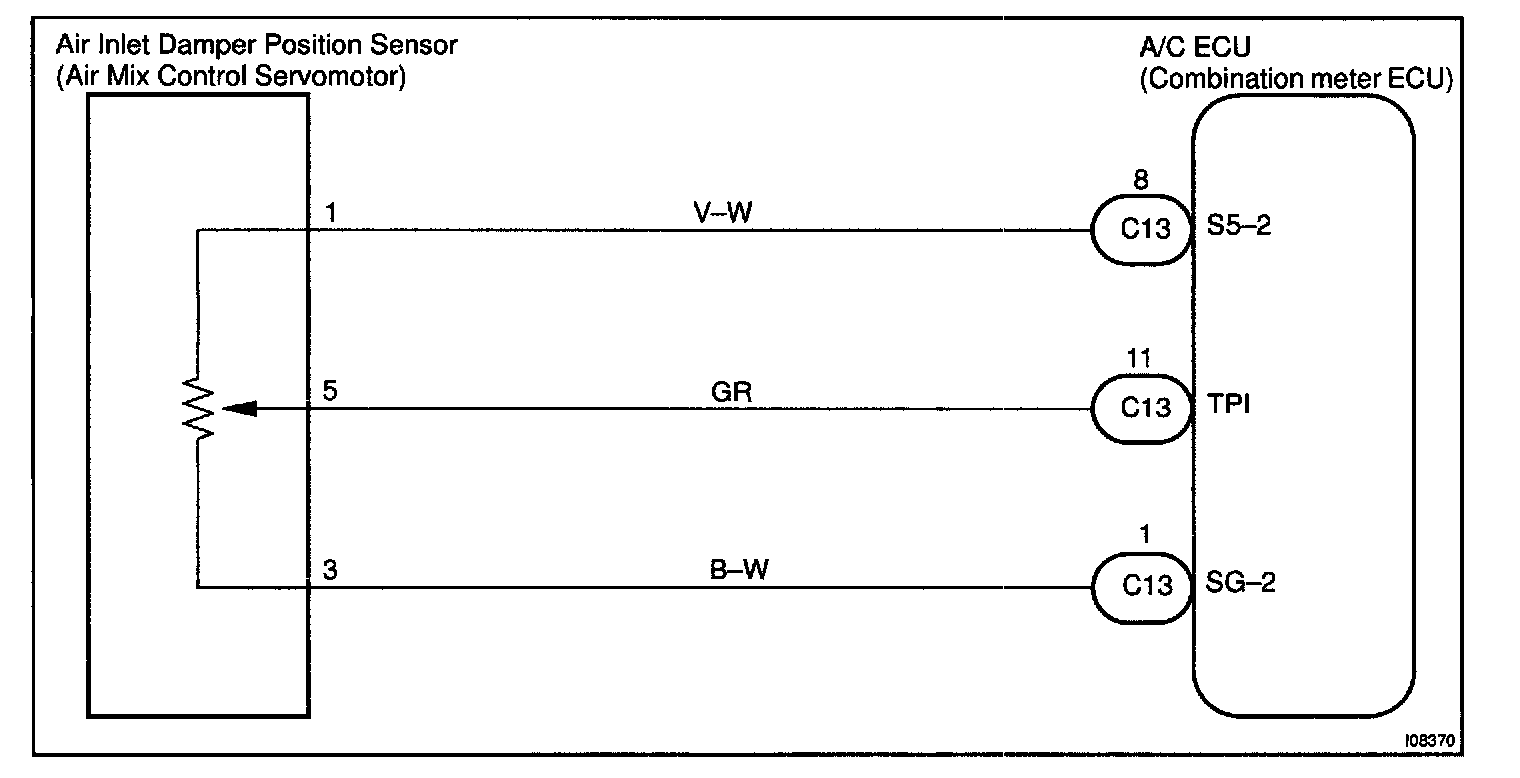

Wiring Diagram:

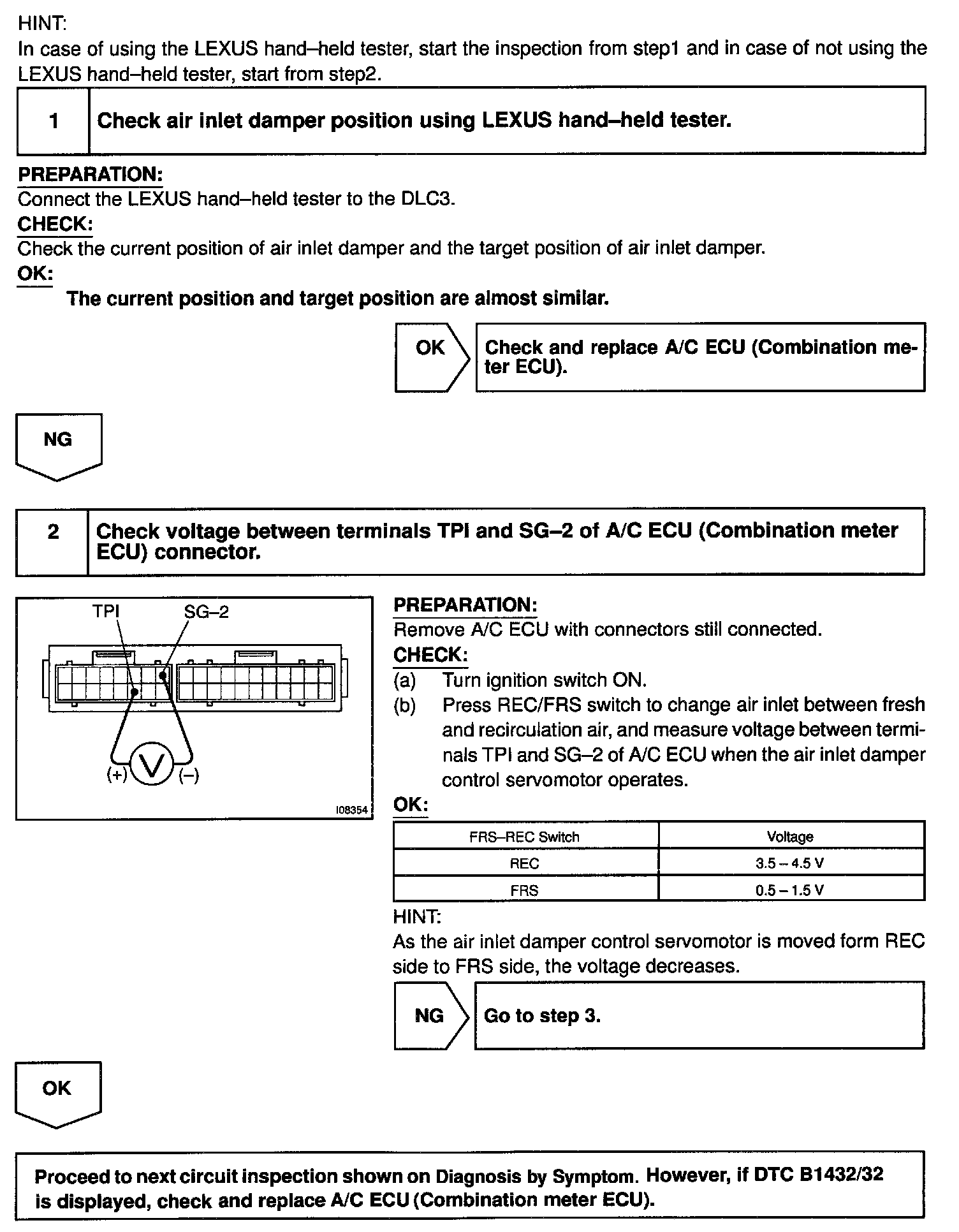

Steps 1 - 2:

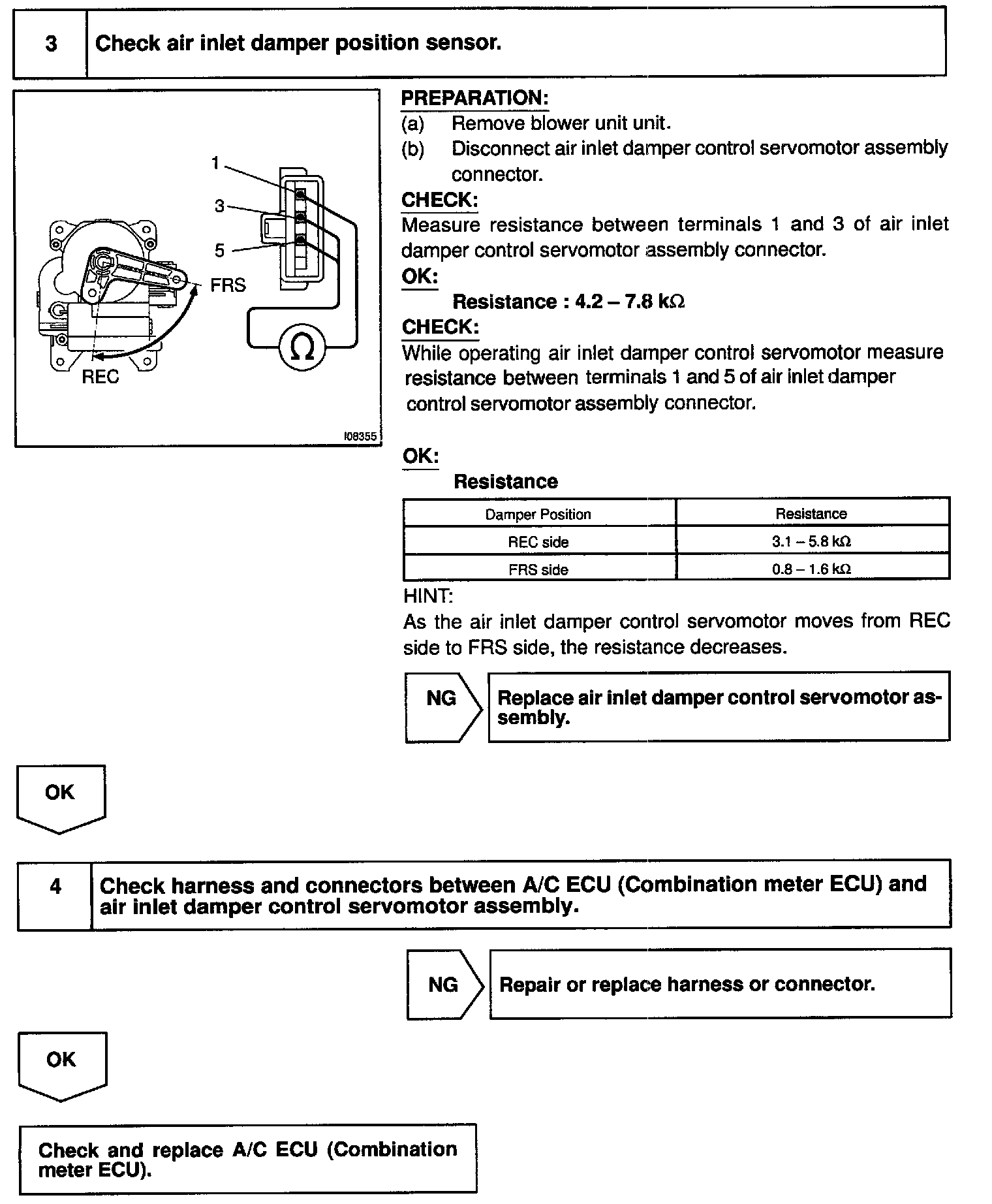

Steps 3 - 4:

INSPECTION PROCEDURE
