DTC B0103 Short in D Squib Circuit (to B+)




CIRCUIT DESCRIPTION

The D squib circuit consists of the airbag sensor assembly, spiral cable, steering wheel pad .
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, Description and Operation

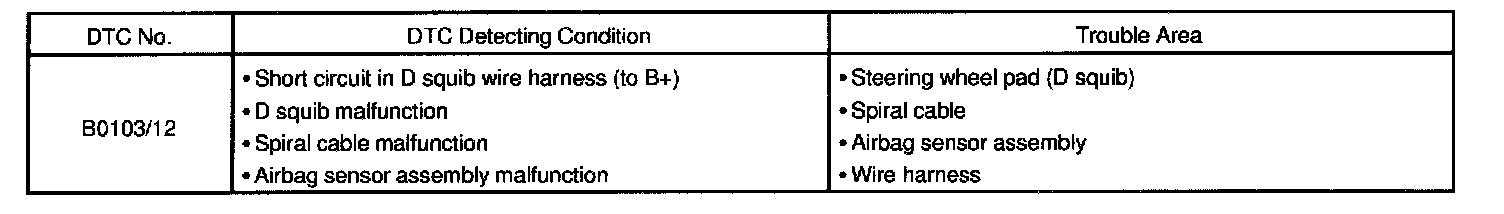

DTC B0103/12 is recorded when a B+ short is detected in the D squib circuit.

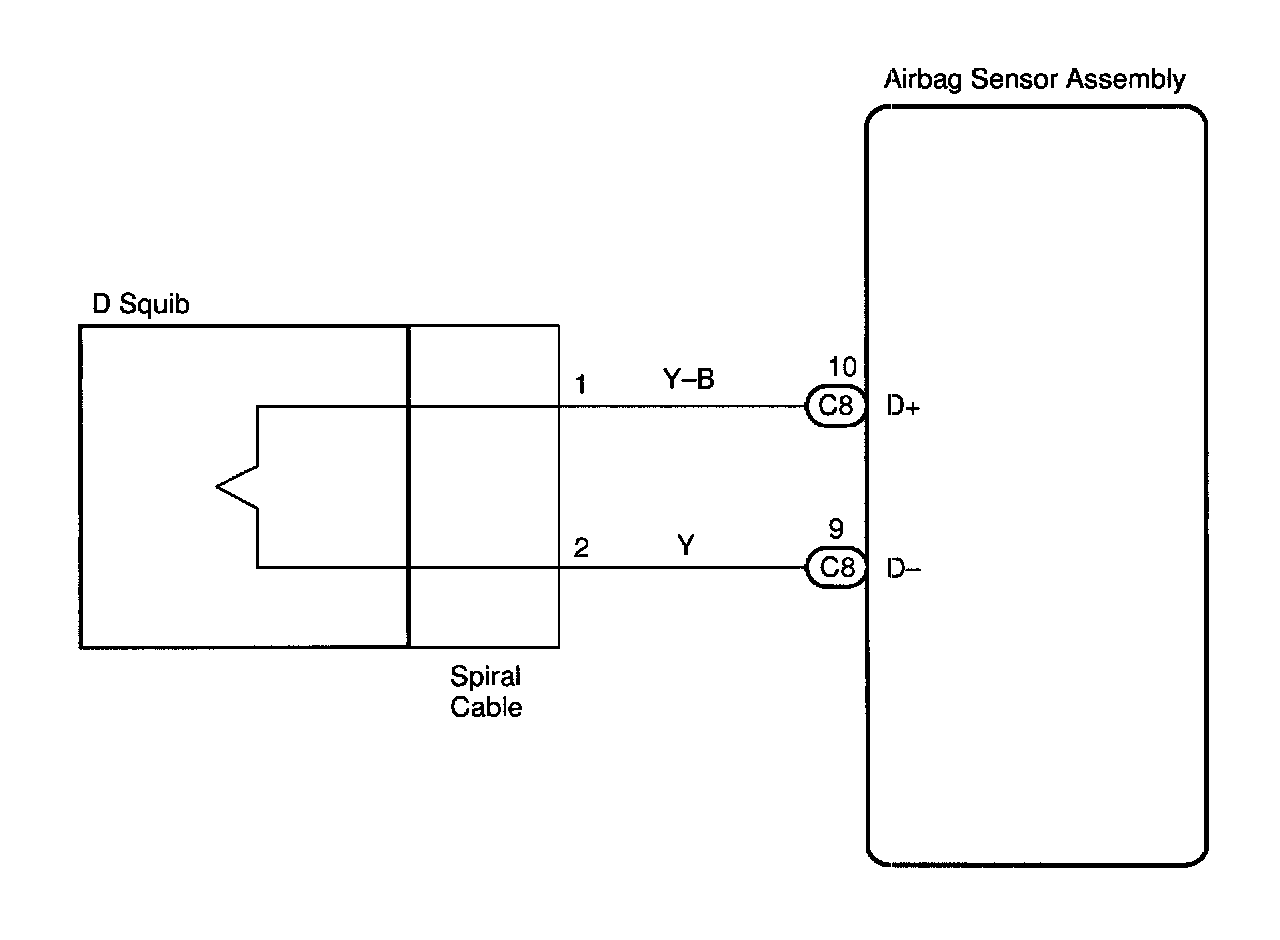

WIRING DIAGRAM

Step 1:

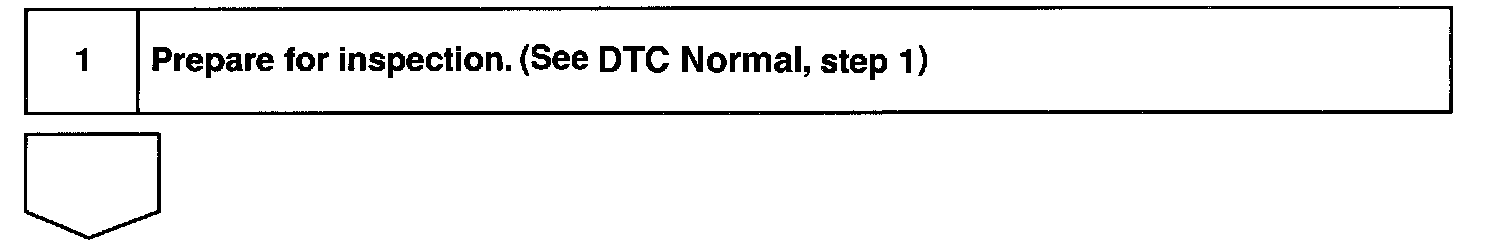

Step 2:

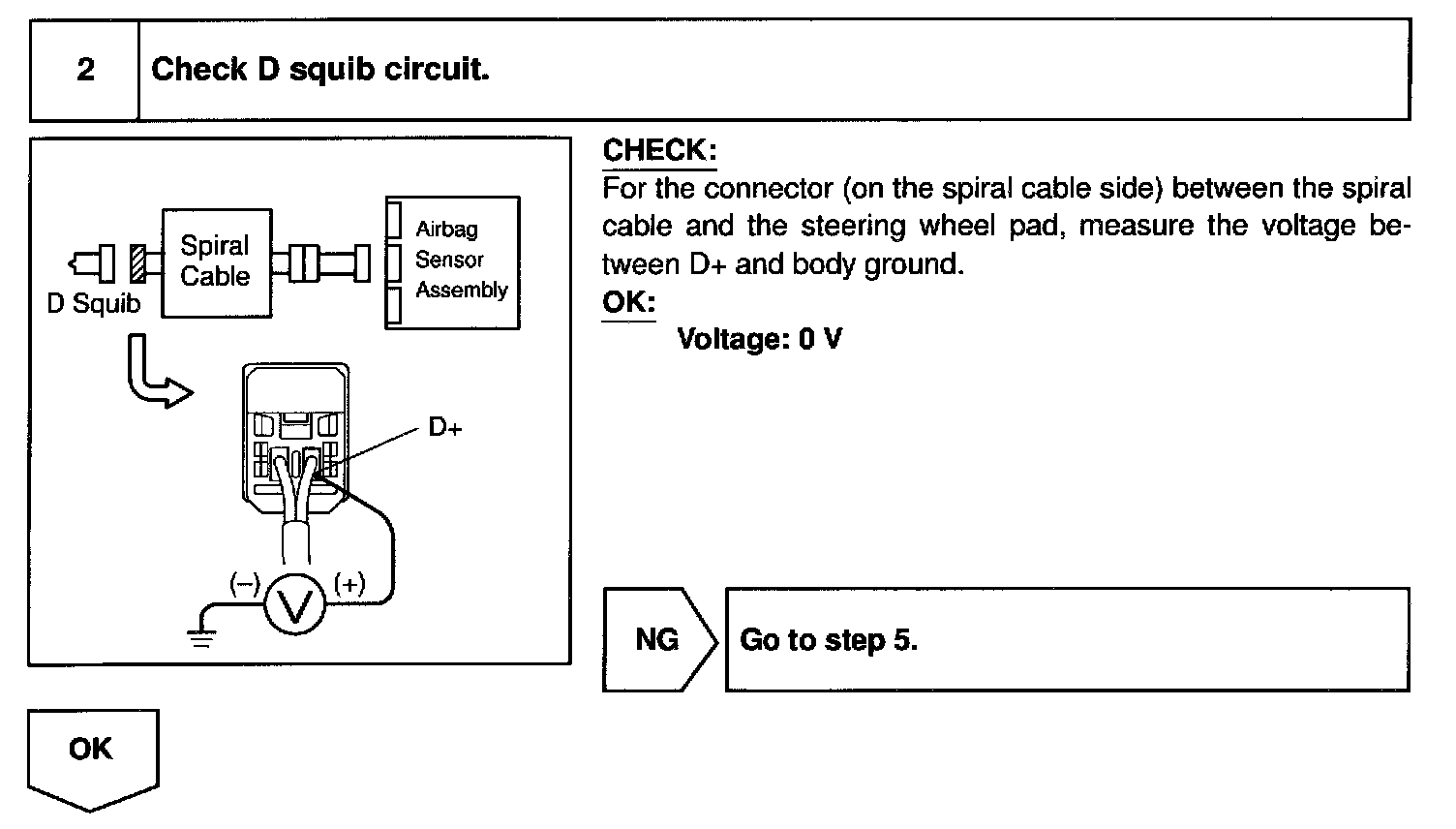

Step 3:

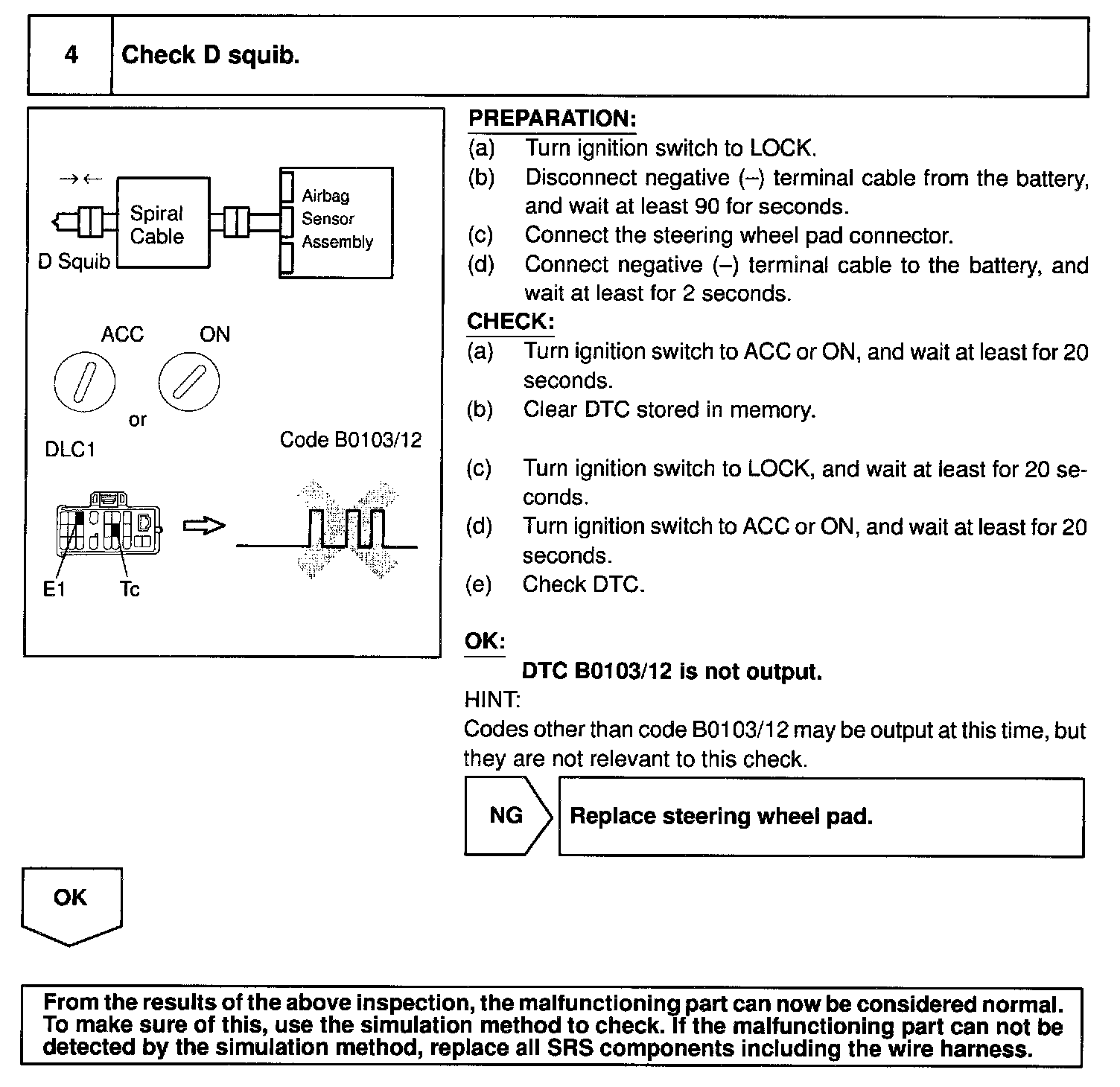

Step 4:

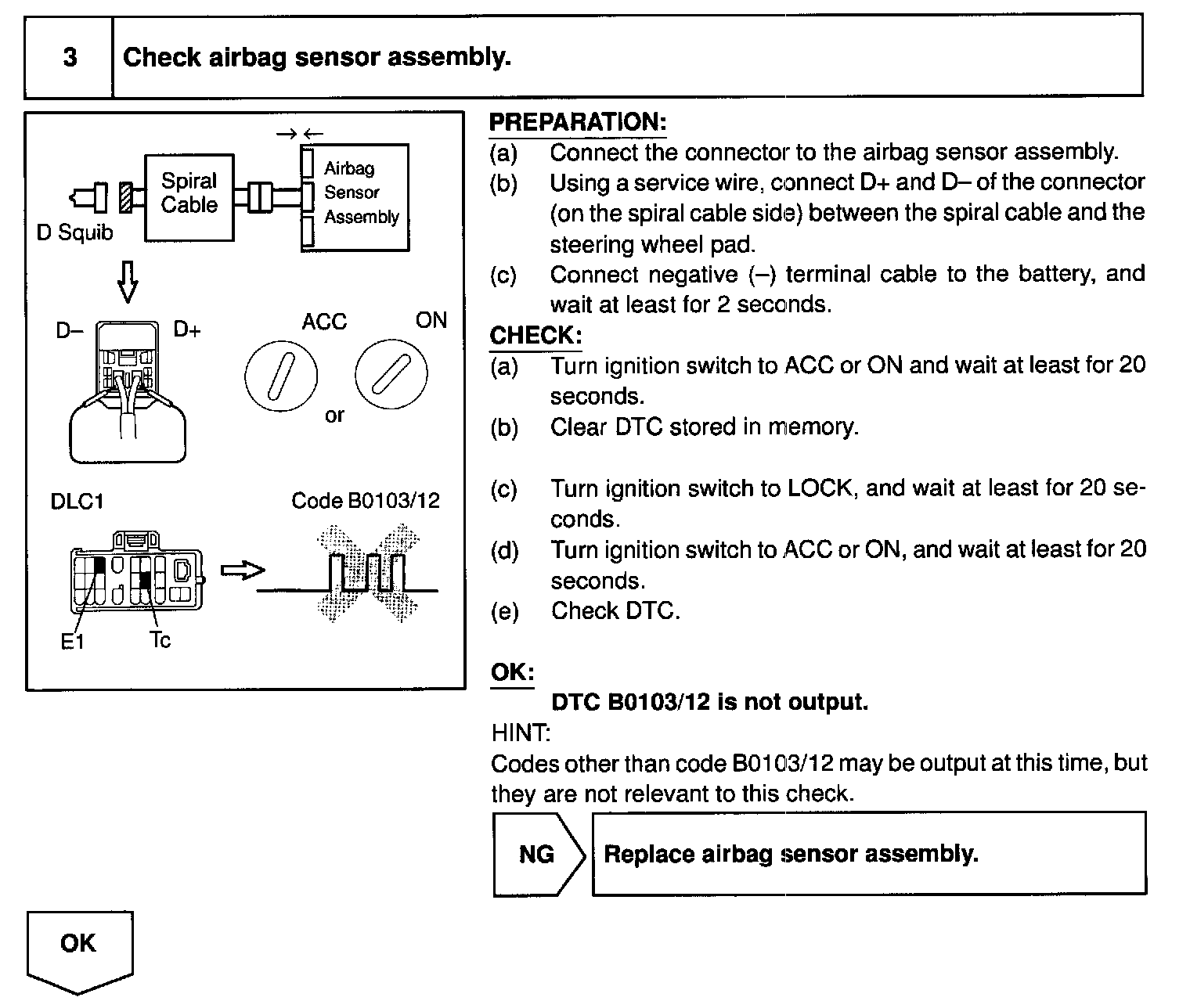

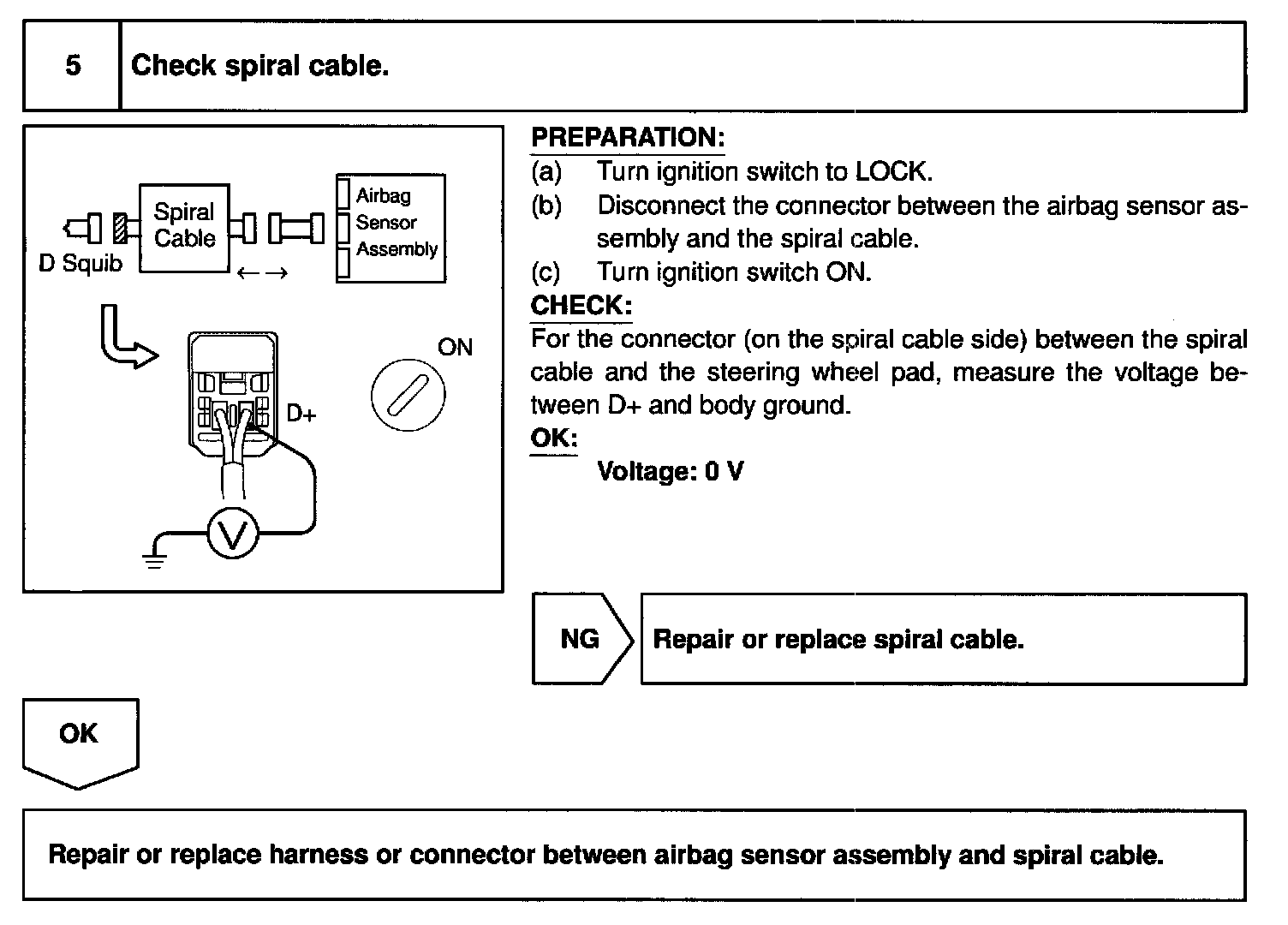

Step 5:

INSPECTION PROCEDURE
