DTC B0102 Short in D Squib Circuit (to Ground)




CIRCUIT DESCRIPTION

The D squib circuit consists of the airbag sensor assembly, spiral cable, steering wheel pad.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, Description and Operation

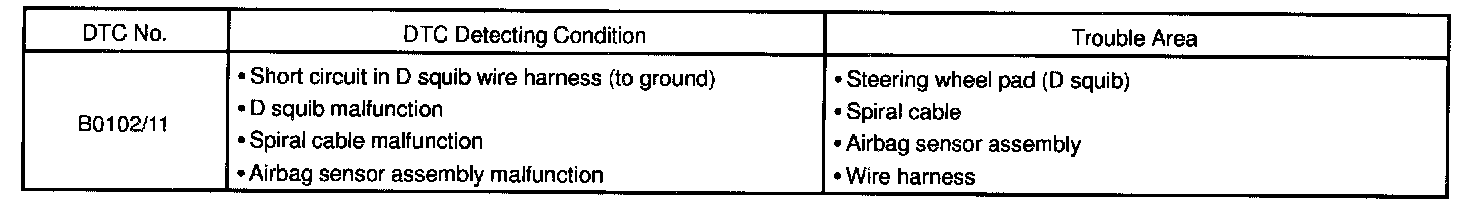

DTC B0102/11 is recorded when a B+ short is detected in the D squib circuit.




WIRING DIAGRAM

Step 1:

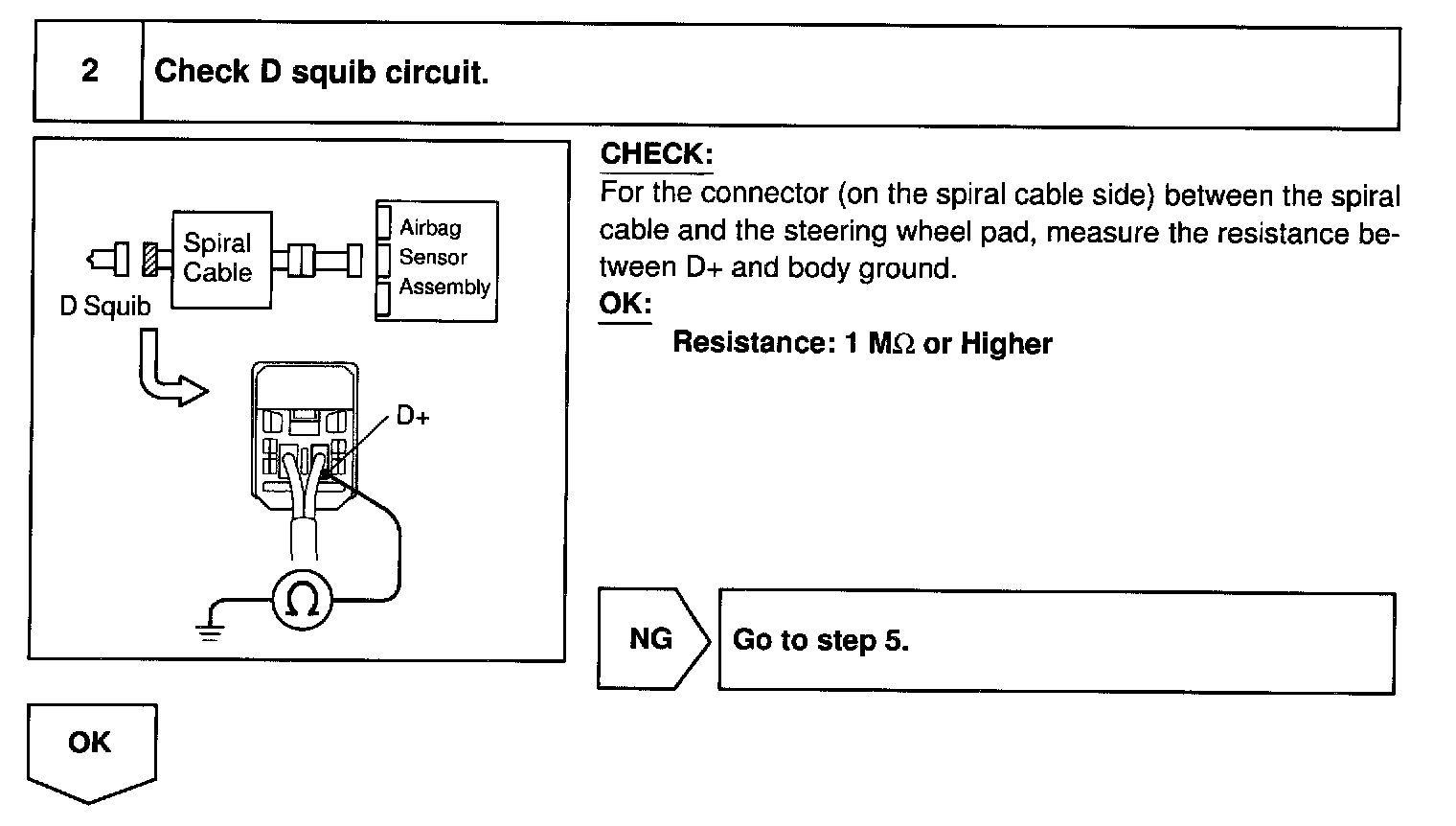

Step 2:

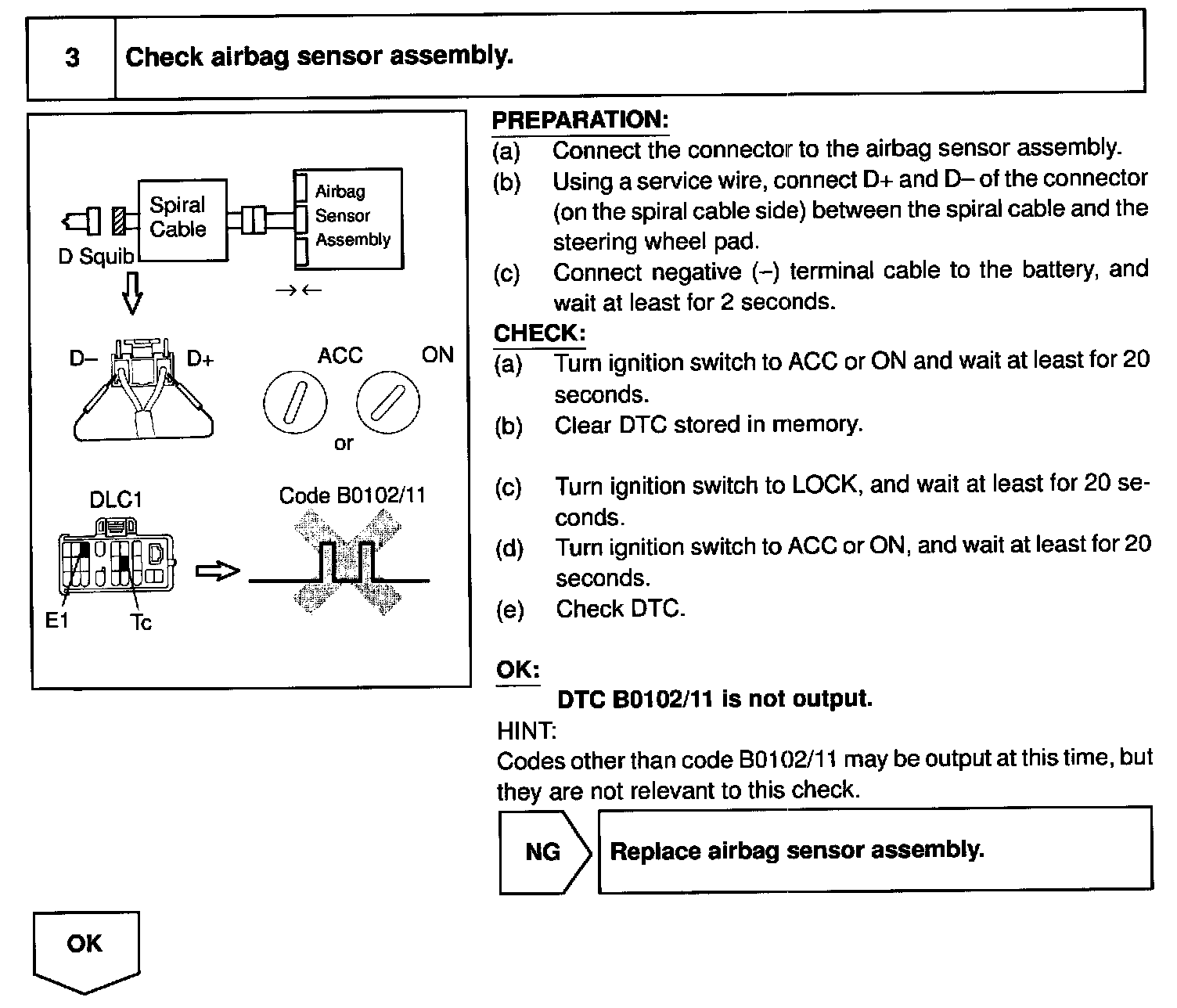

Step 3:

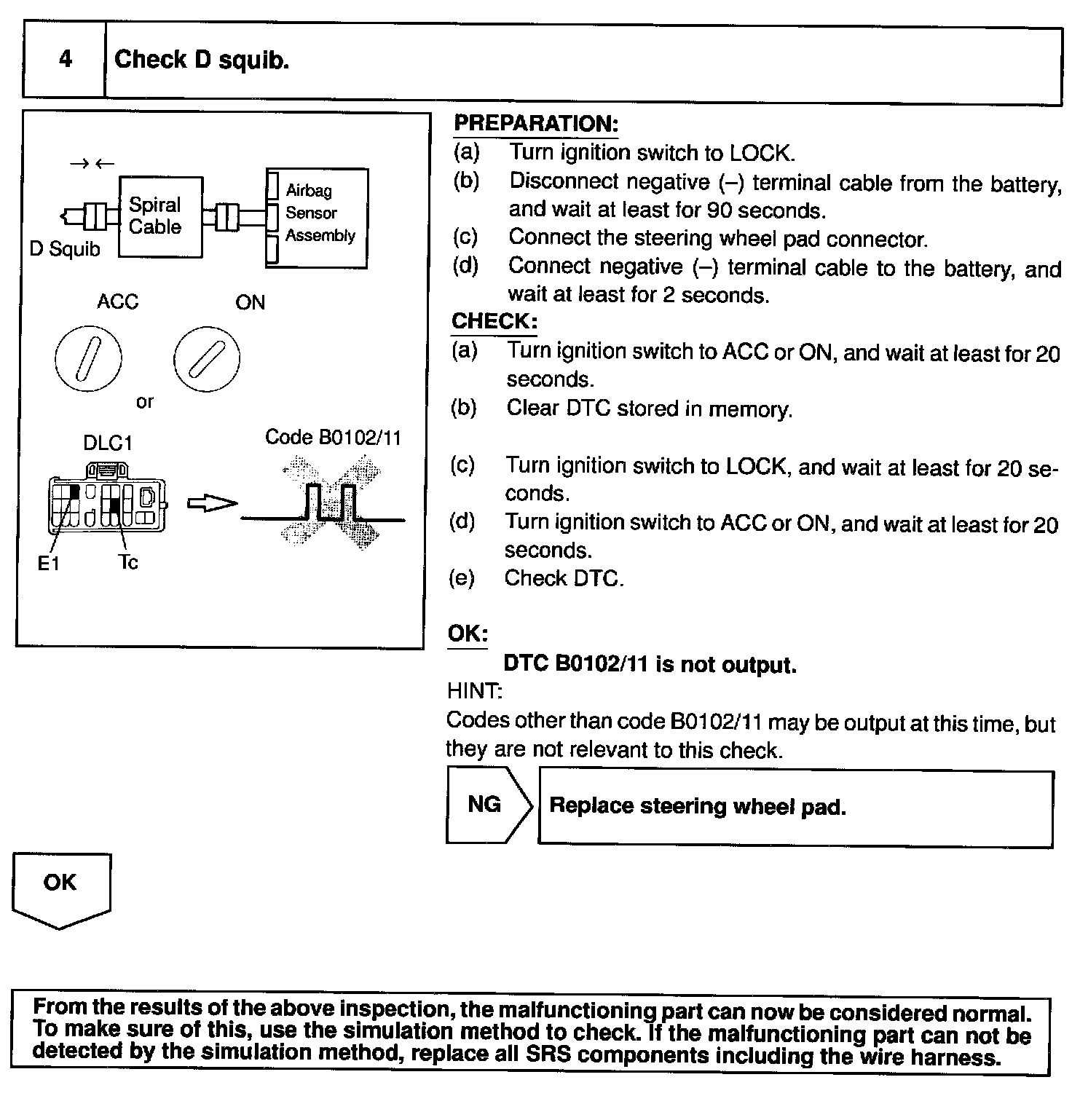

Step 4:

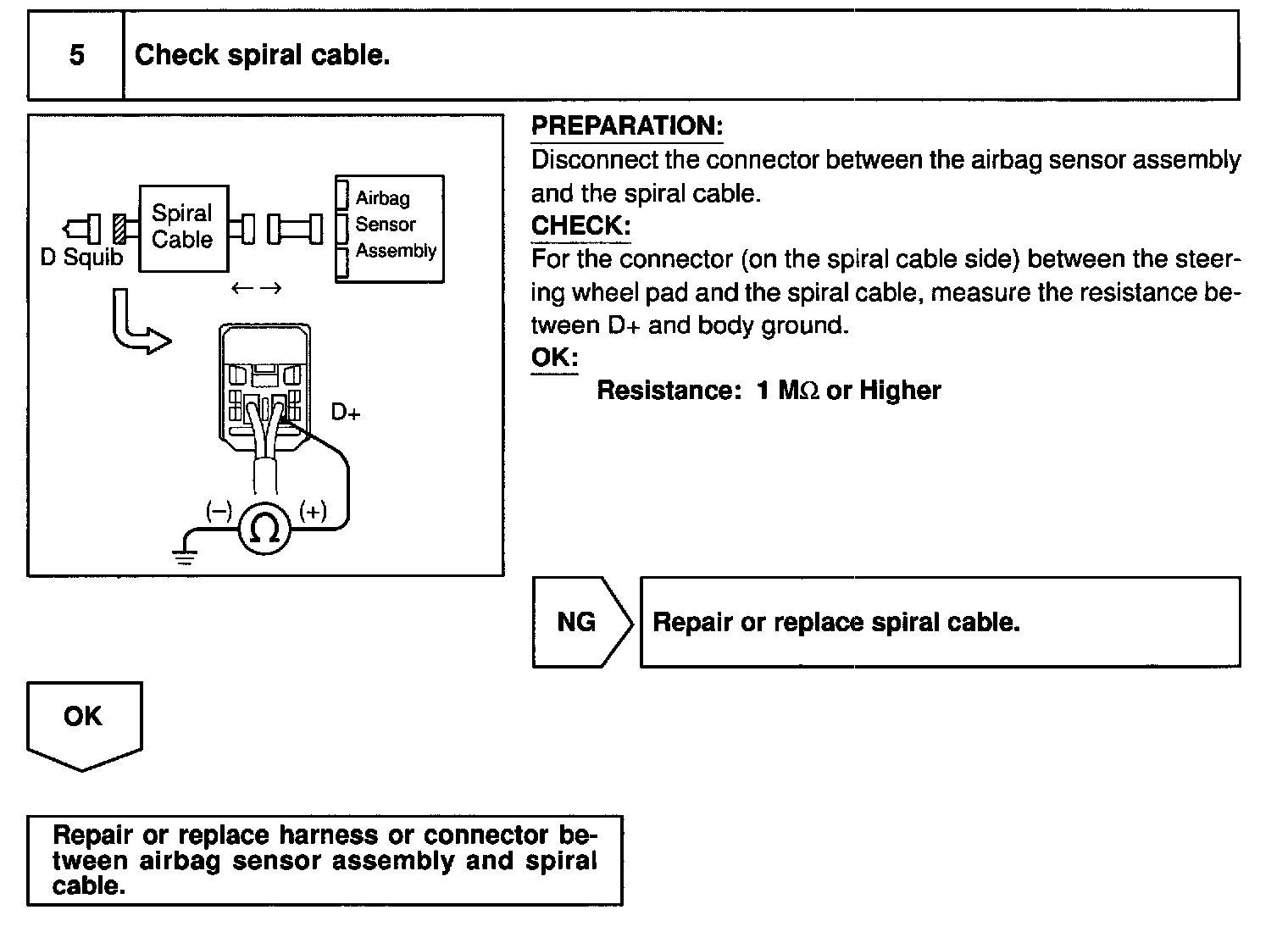

Step 5:

INSPECTION PROCEDURE
