Fuse Block: Locations

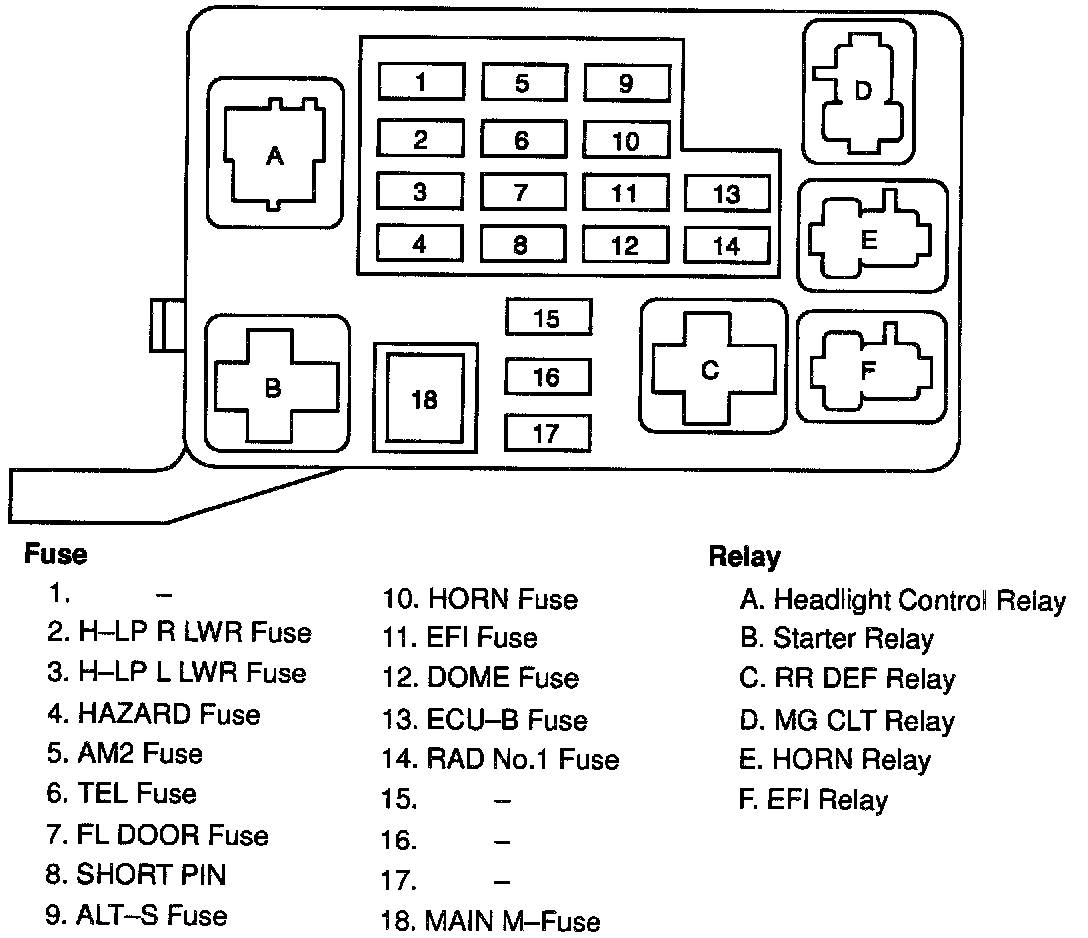

Engine Room Junction Block




Instrument Panel Junction Block

The power source supplies power to each 01: the vehicle's electrical devices. It is composed of the battery, fuses and relays, which are located centrally at engine room junction block, engine room No.1 relay block, fusible link block and engine room No.2 relay block in the engine compartment, and instrument panel junction block in the cabin near the driver's feet.
