Home >> Lexus Truck >> 1999 >> RX 300 AWD V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly >> System Specifications >> Differential Torque Data >> Rear

Rear

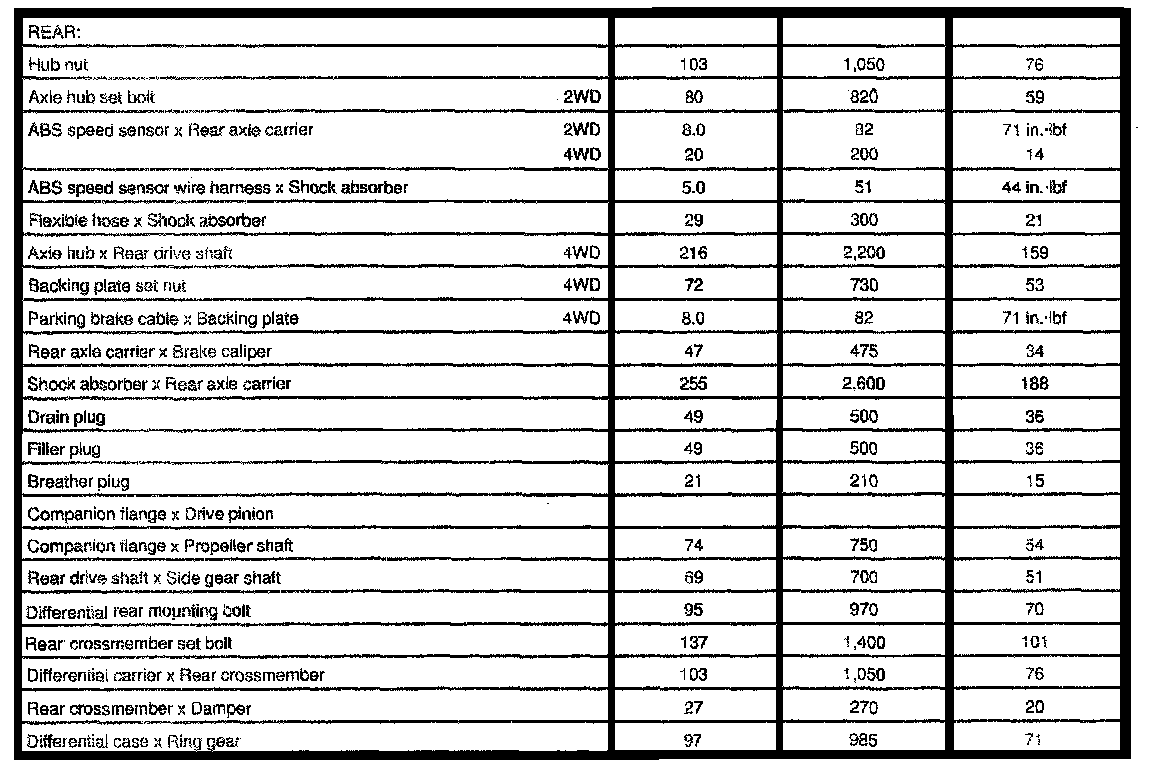

2wd/4wd Drive, Rear Differential Torque:




2wd/4wd Drive, Rear Differential Torque Cont.:
