IACV Control Circuit

CIRCUIT DESCRIPTION
This circuit opens and closes the IACV (Intake Air Control Valve) in response to the engine load in order to increase the intake efficiency (ACIS: Acoustic Control Induction System).

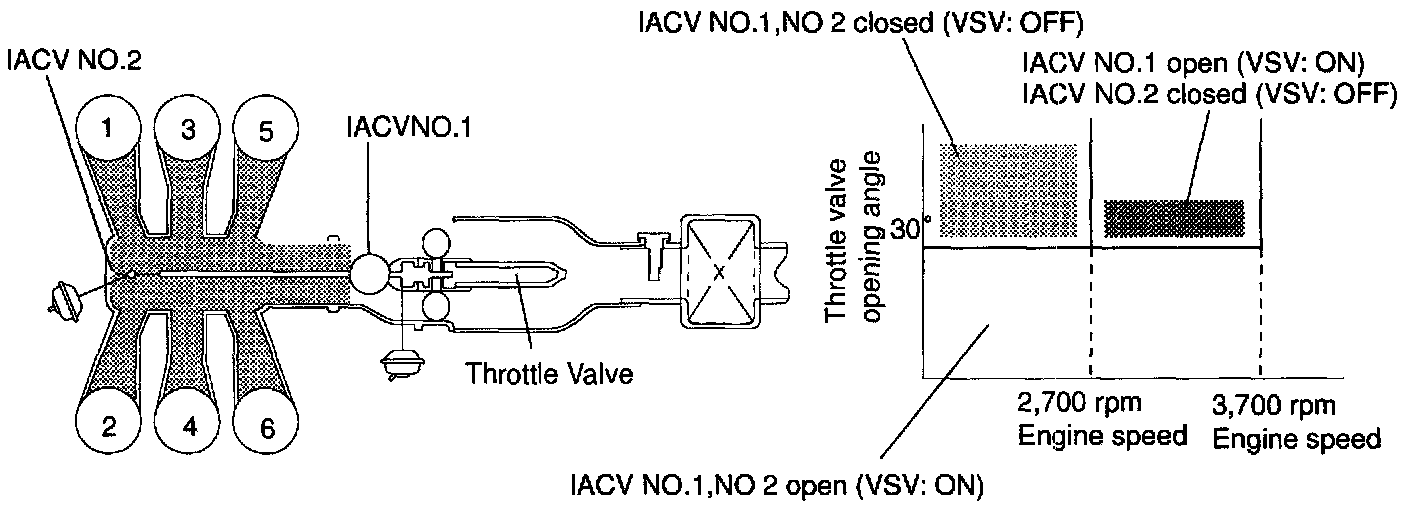

When the engine speed is 3,700 rpm or less and the throttle valve opening angle is 30° or more, the ECM turns the two VSV ON or OFF and operate the IACV.

INSPECTION PROCEDURE

Step 1:

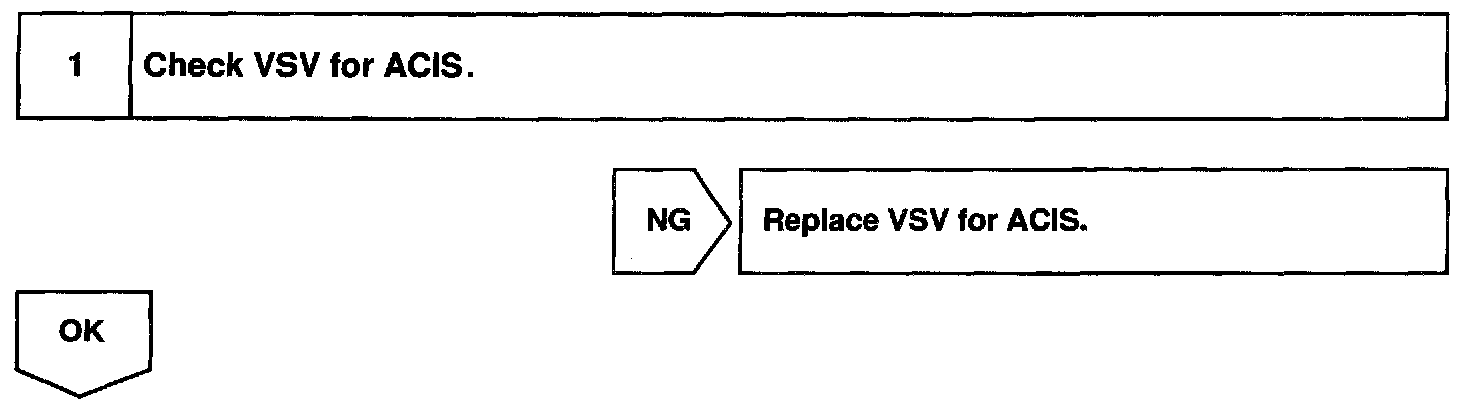

Step 2:

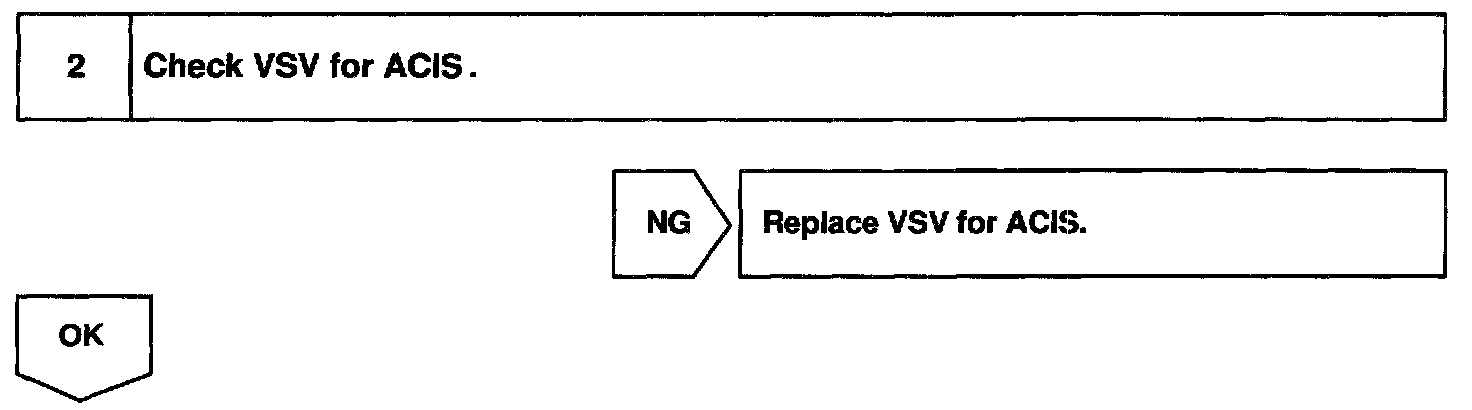

Step 3:

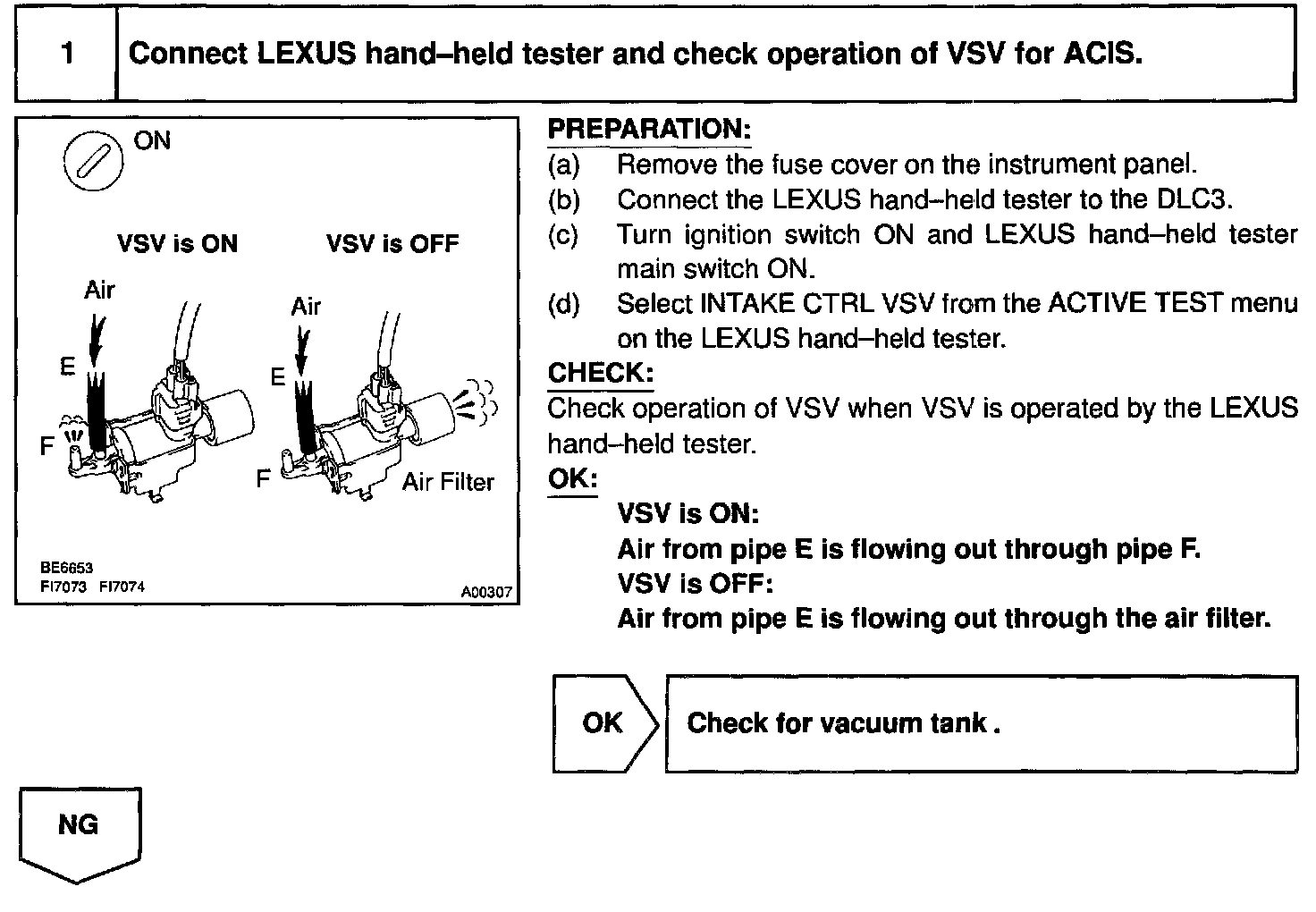

LEXUS hand-held tester

Step 1:

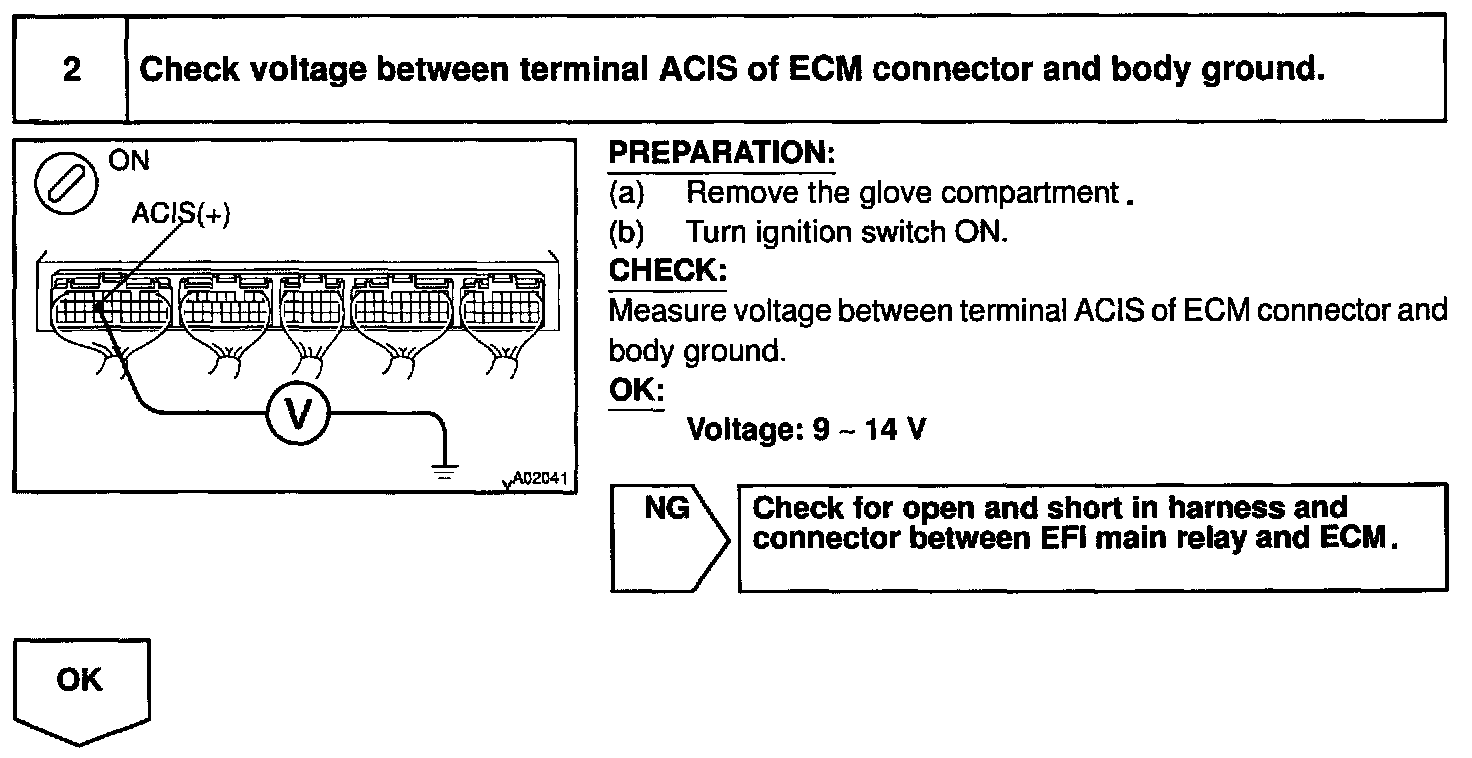

Step 2:

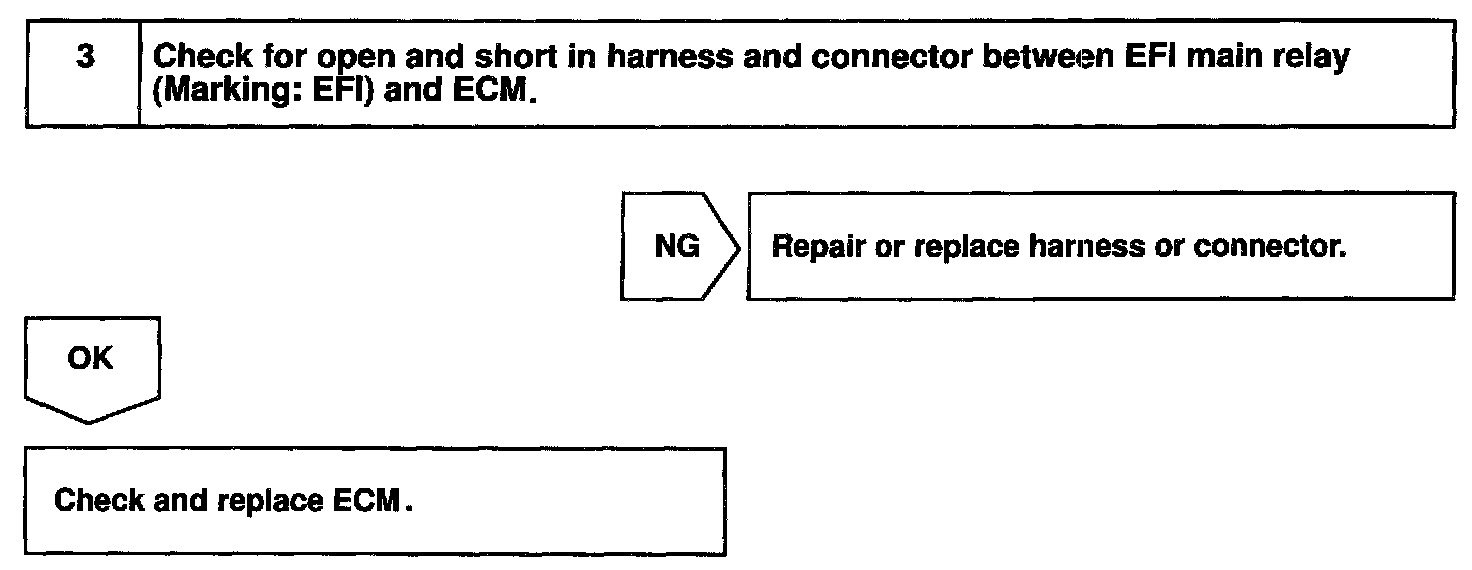

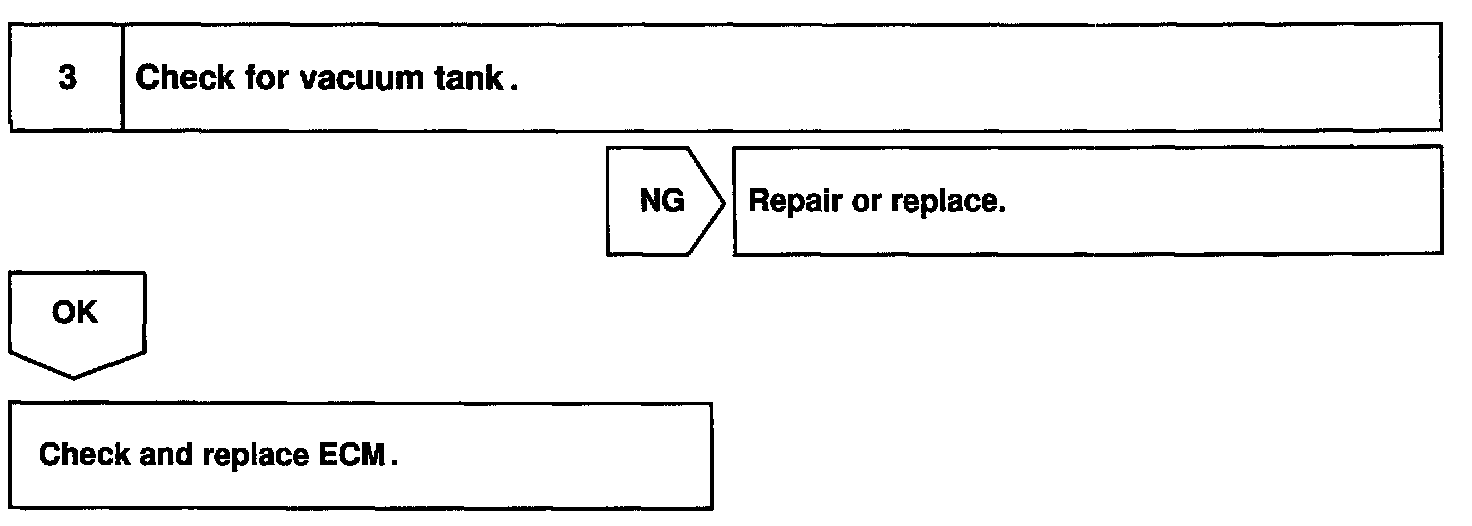

Step 3:

OBD II scan tool (excluding LEXUS hand-held tester)
