Description of On-Board Diagnostics

PRE-CHECK




1. WARNING FOR A/C COMPRESSOR LOCK

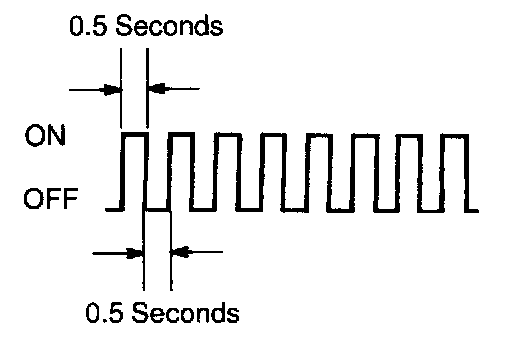

If compressor lock occurs during A/C operation, the A/C switch indicator on the A/C control assembly starts blinking. When this occurs, check for compressor lock (DTC B1422/22) using diagnosis trouble code check then proceed to inspect the circuit or the component.
Compressor lock sensor circuit.




2. LIST OF OPERATION METHODS

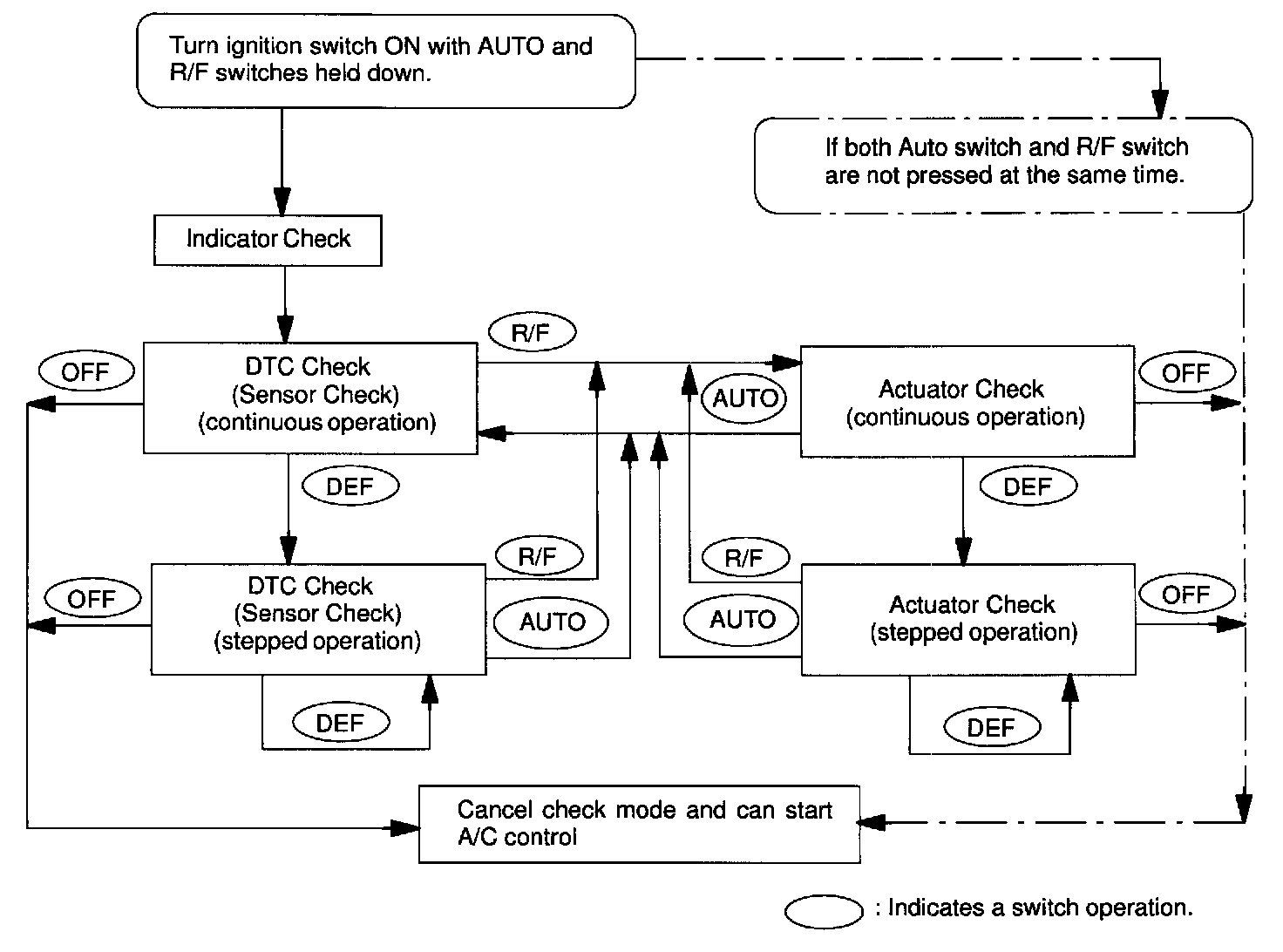

By operating each of the A/C control switches as shown in the diagram below, it is possible to enter the diagnosis check mode.
