Driver Seat Area - Squeaks & Rattles

NVH
NV004-99

March 12, 1999

Title:
SQUEAKS & RATTLES SERVICE TIPS-DRIVER SEAT AREA

Models:
'99 RX 300

Introduction
The following procedures were developed to help eliminate potential rubbing noise from the Driver Seat area.

Affected Vehicles
^ 1999 RX300s.

PART NUMBER PART NAME QTY
08231-00801 Interior Noise Kit 1

Part Number Information

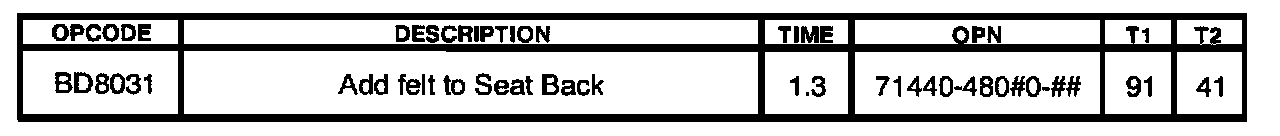

Warranty Information

Applicable Warranty*:
This repair is covered under the Lexus Basic Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

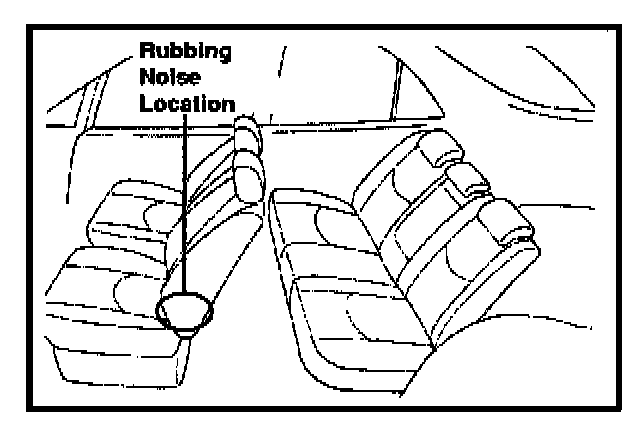

Repair Procedure / Driver's Seat Lumbar Support Noise

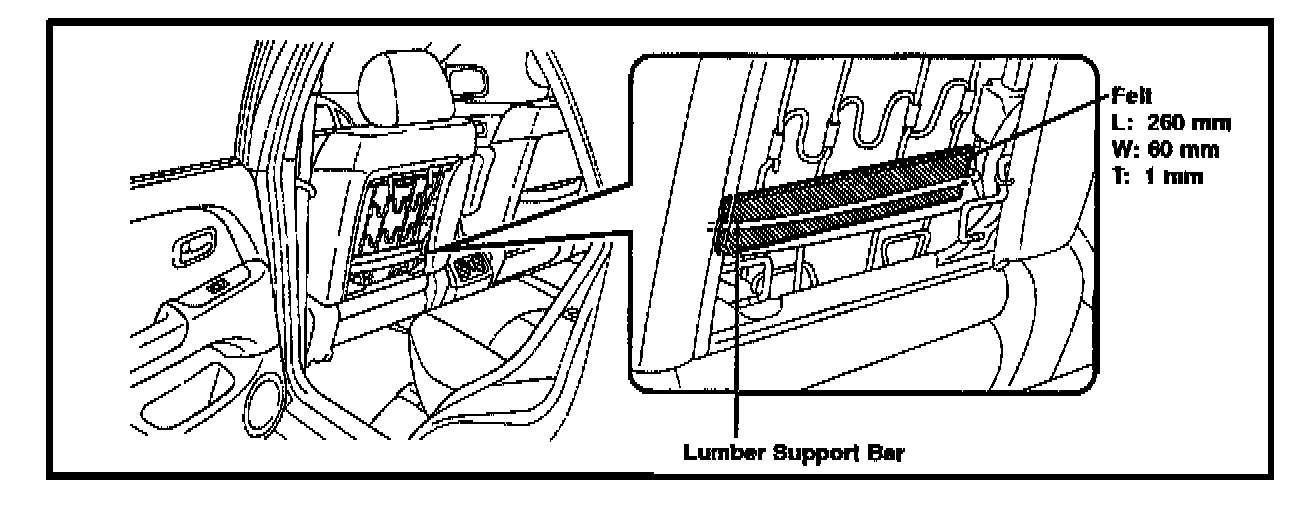

To help eliminate a potential rubbing noise, fit a piece of felt (size L: 260 mm, W: 60 mm, and T: 1 mm, from the Interior Noise Kit (P/N
08231-00801) to the back side of the seat back as shown.
