DTC 24

CIRCUIT DESCRIPTION
These DTC notify how switch works as follows:
If DTC is not output when operating switch, it means failure of switch contact. If DTC is output when not operating switch, it means stick of switch. When something wrong is found by this diagnosis, inspect each switch.

Then, replace the switch if there is a problem, or check the wire harness if there is no problem.

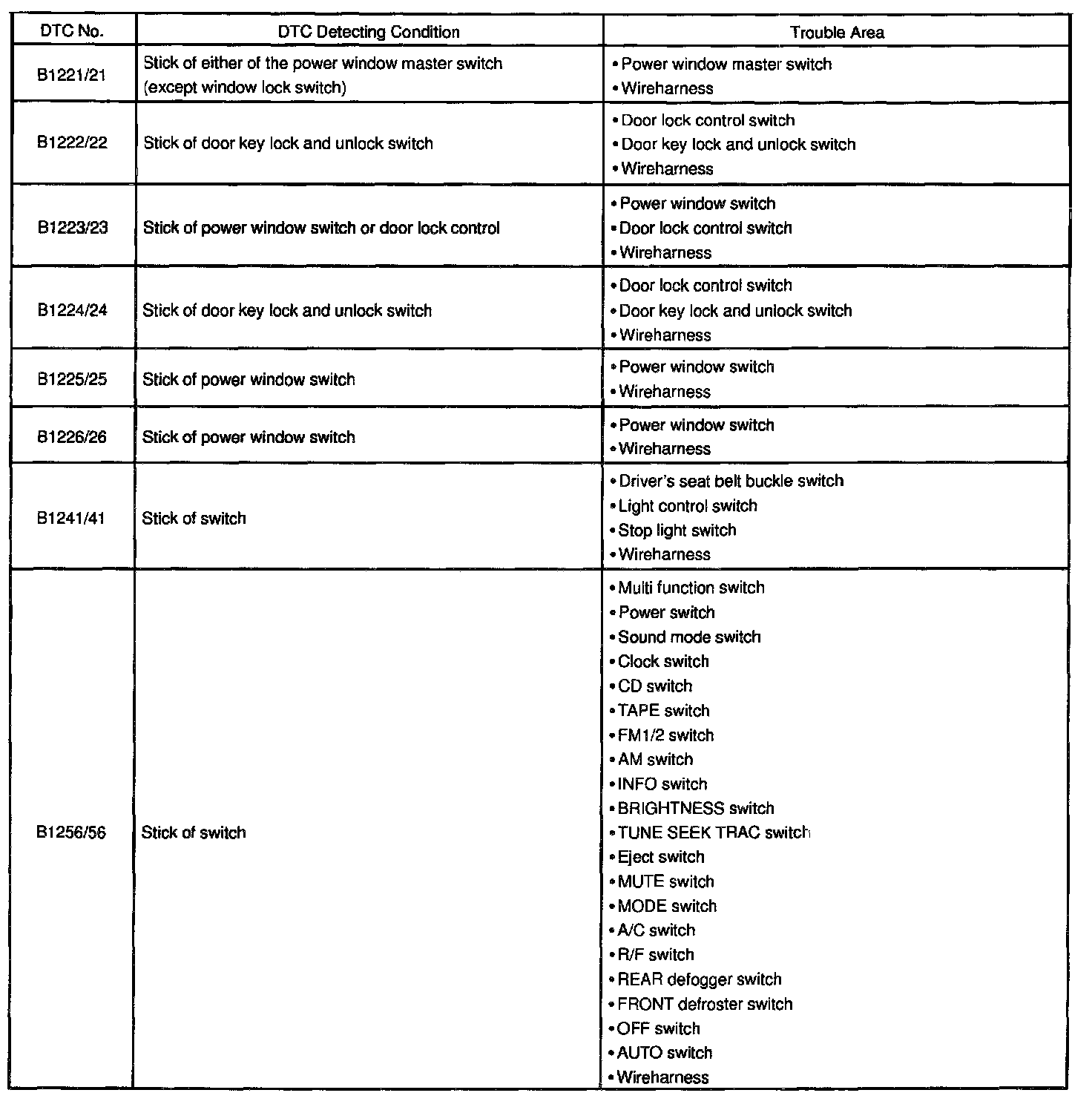

DETECTING CONDITION

HINT: Please refer to indicated component for switch inspection procedures, and to each door system (refer to Body and Frame, Testing and Inspection) for wire harness inspection.
