ABS W/Traction Control System

CIRCUIT DESCRIPTION

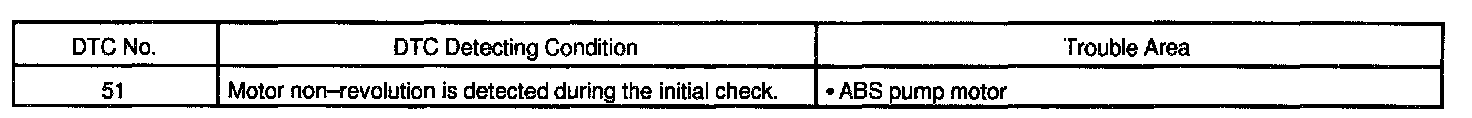

DETECTING CONDITION

Fail safe function:
If trouble occurs in the ABS & TRAC pump motor, the ECU cuts off current to the ABS & TRAC solenoid relay and prohibits ABS control and TRAC control.




WIRING DIAGRAM

Step 1:

INSPECTION PROCEDURE
