DTC 41

CIRCUIT DESCRIPTION
This is the power source for the ECU, hence the actuators.

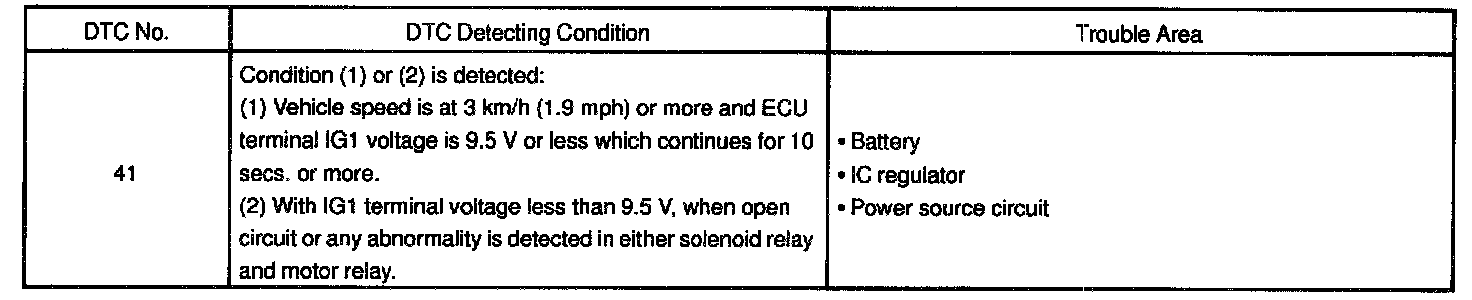

DETECTING CONDITION

Fail safe function:
If trouble occurs in the power source circuit, the ECU cuts off current to the ABS solenoid relay and prohibits ABS control.

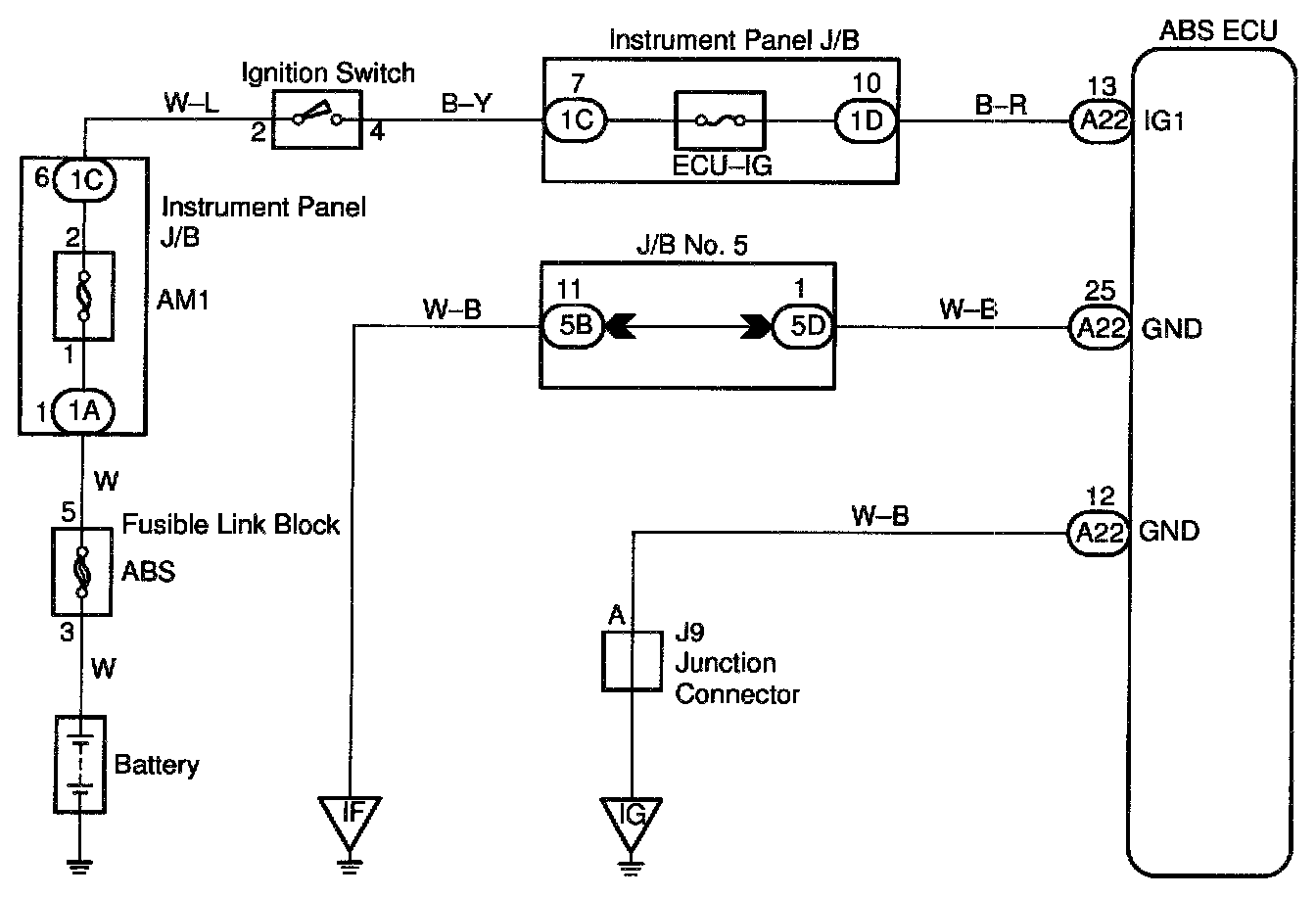

WIRING DIAGRAM

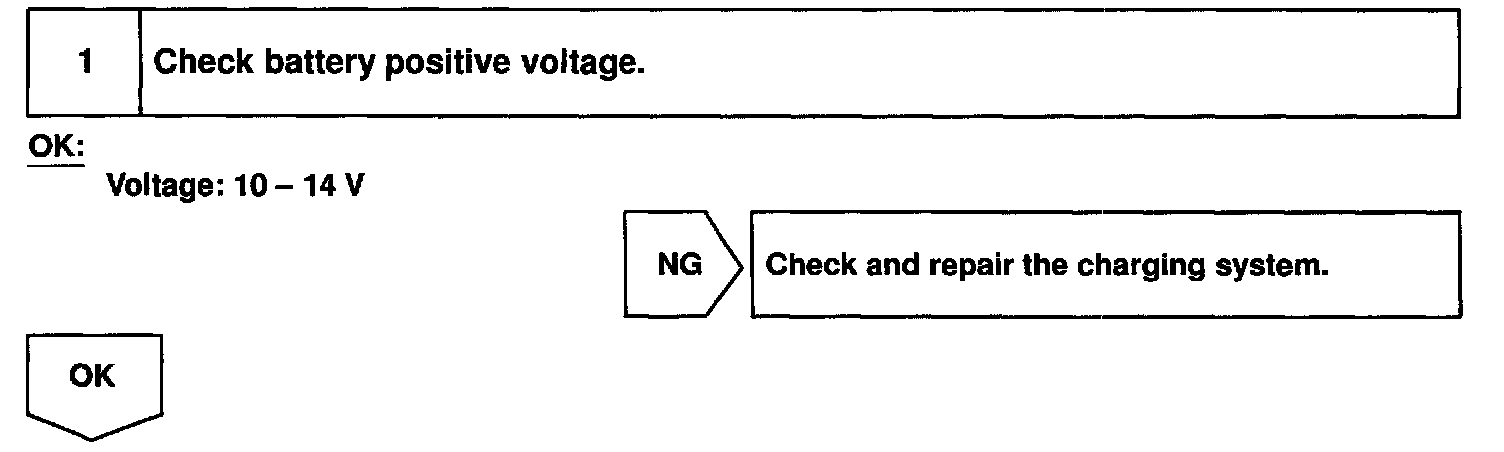

Step 1:

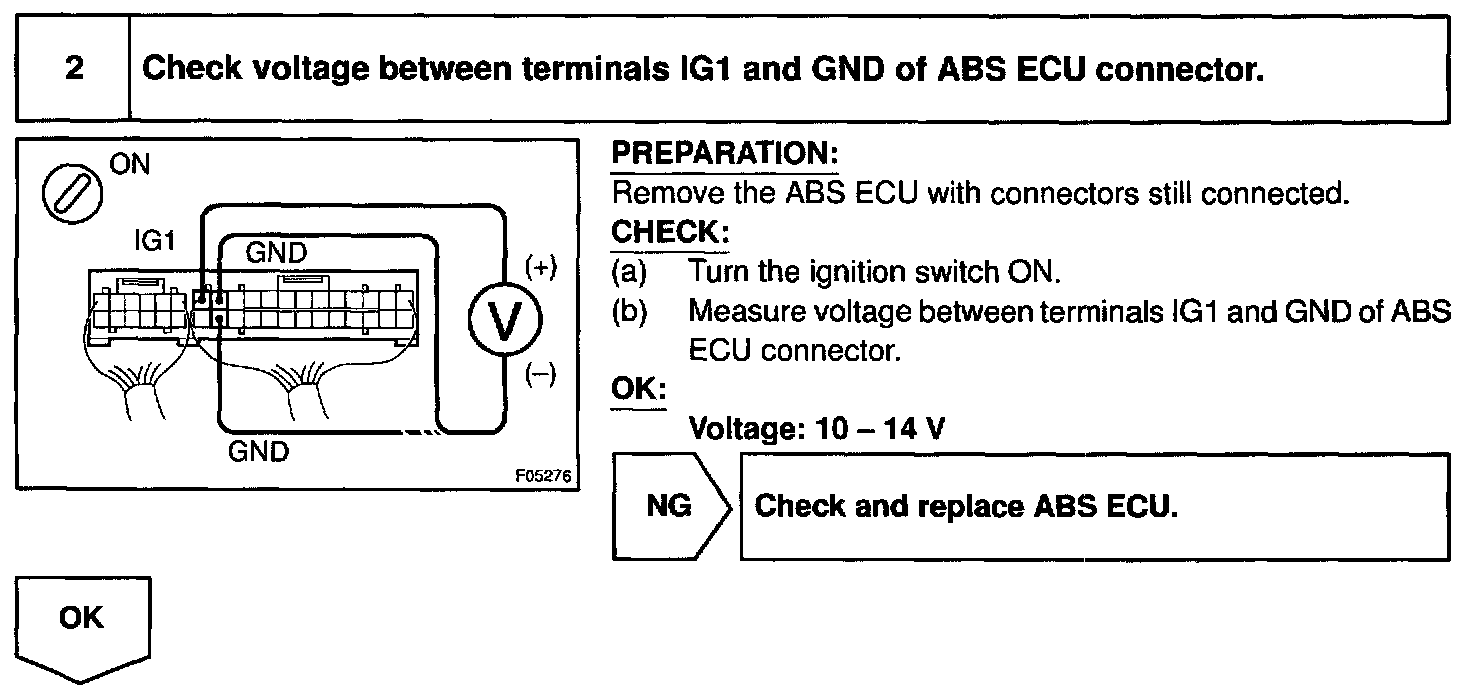

Step 2:

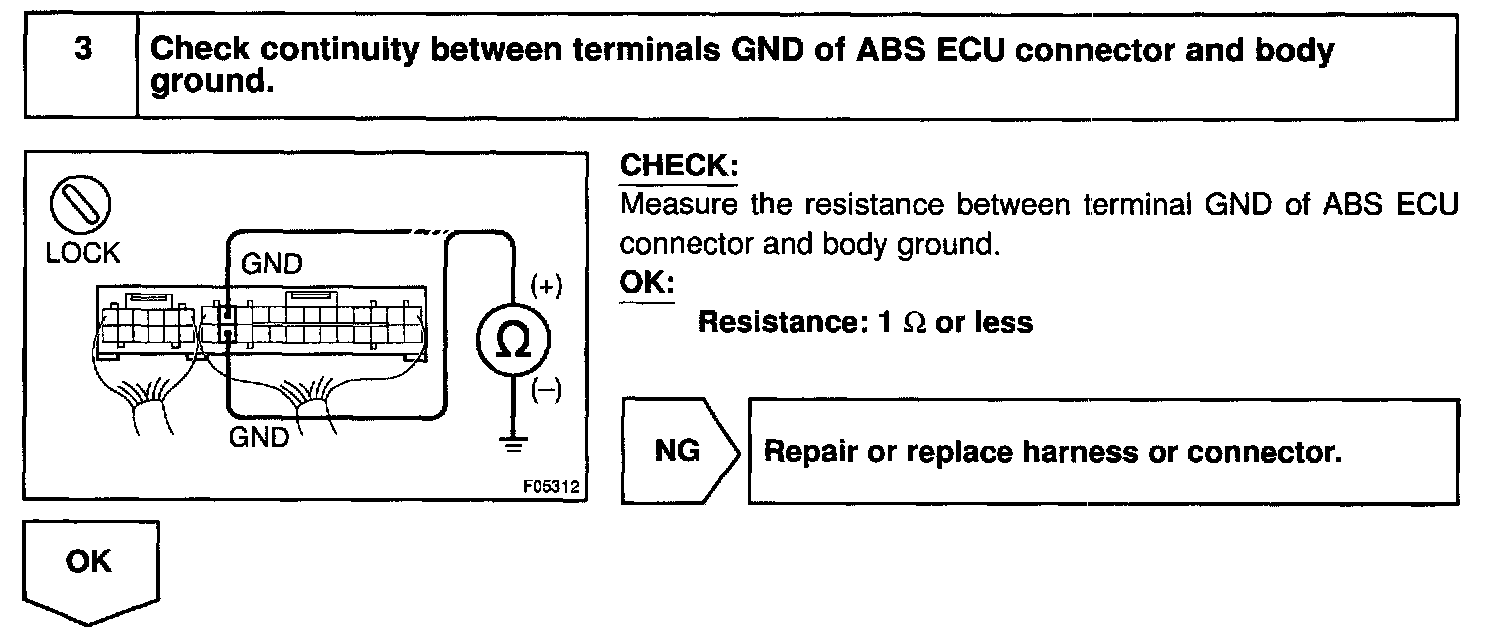

Step 3:

Step 4:

INSPECTION PROCEDURE
