ABS W/Traction Control (TRAC)

Diagnosis System

HINT:
- Using SST 09843-18020, connect the terminals Tc and E1.
- If any abnormality is not found when inspection parts, inspect the ECU.

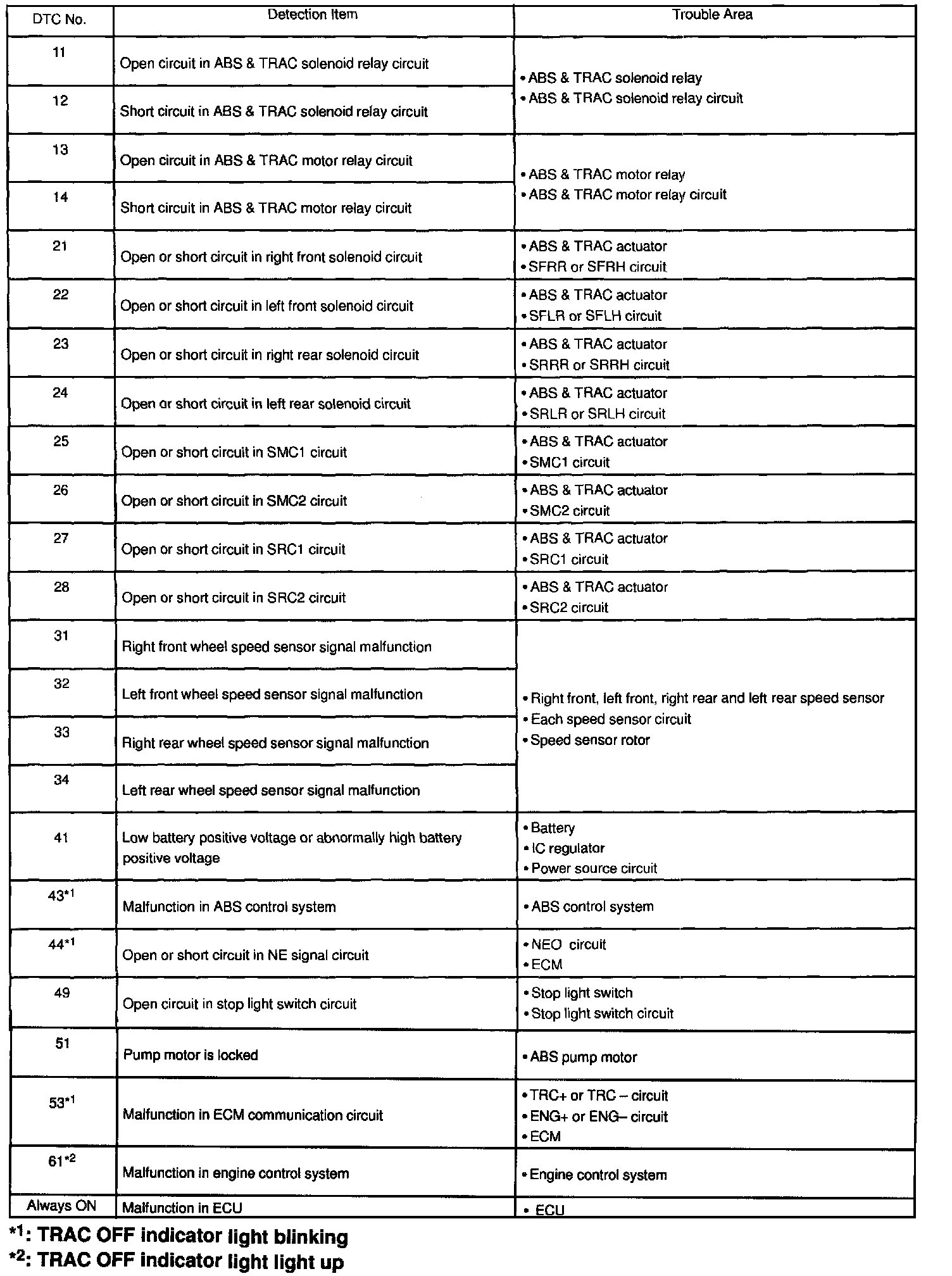

- If a malfunction code is displayed during the DTC check, check the circuit listed for that code.

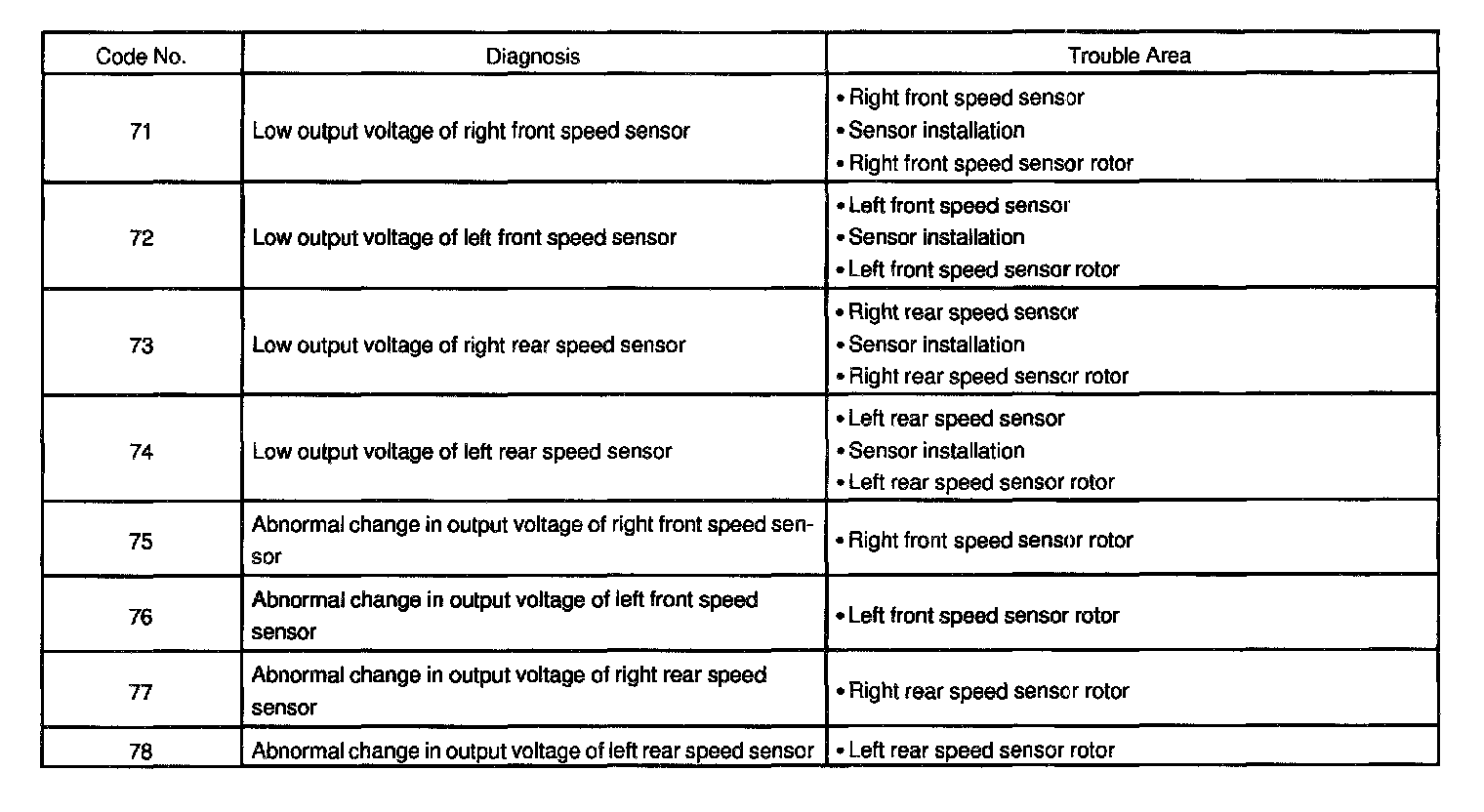

DTC of the Speed Sensor Check function






HINT:
- See the list of DTC shown.
- If every sensor is normal, a normal code is output (A cycle of 0.25 sec. ON and 0.25 sec. OFF is repeated).
- If 2 or more malfunctions are indicated at the same time, the lowest numbered code will be displayed 1st.
