ABS (Antilock Brake System)

Diagnosis System

HINT
- Using SST 09843-18020, connect the terminals Tc and E1, and remove the short pin.
- If any abnormality is not found when inspection parts, inspect the ECU.

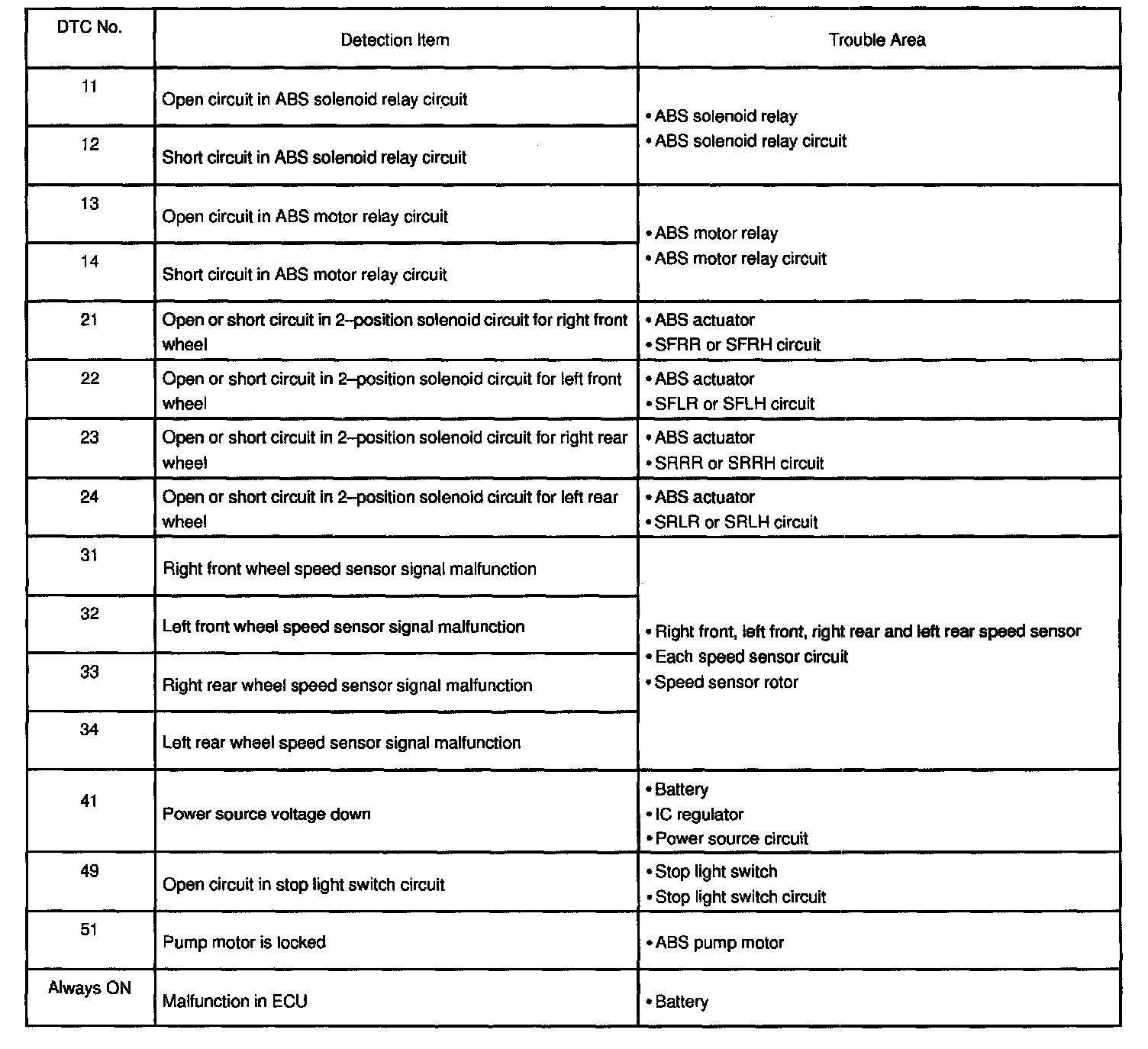

- If a malfunction code is displayed during the DTC check, check the circuit listed for the code. For details of each code, turn to the respective "DTC No." in the DTC chart.




DTC of the Speed Sensor Check function

HINT:
- See the list of DTC.
- If every sensor is normal, a normal code is output (A cycle of 0.25 sec. ON and 0.25 sec. OFF is repeated).
- If 2 or more malfunctions are indicated at the same time, the lowest numbered code will be displayed 1st.
