B1441

CIRCUIT DESCRIPTION
The air mix damper control servomotor is controlled by the A/C ECU (Combination meter ECU) and moves the air mix damper to the desired position.

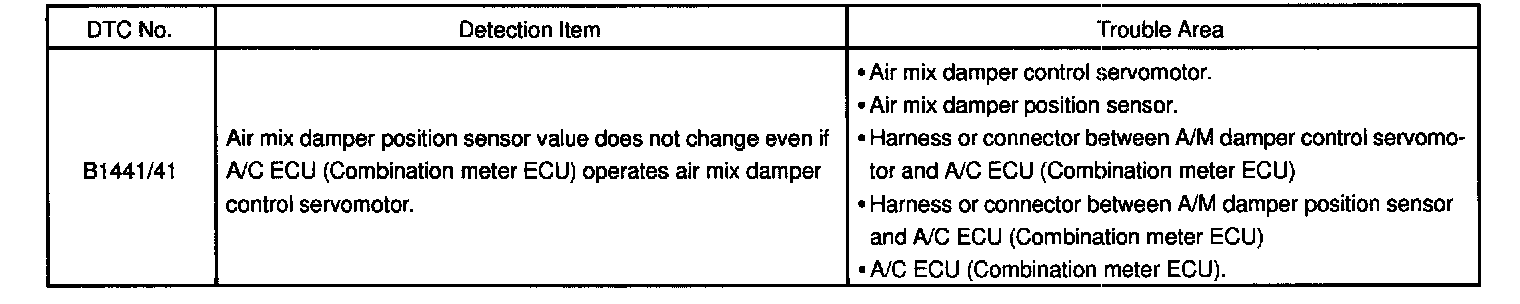

DETECTING CONDITION




WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

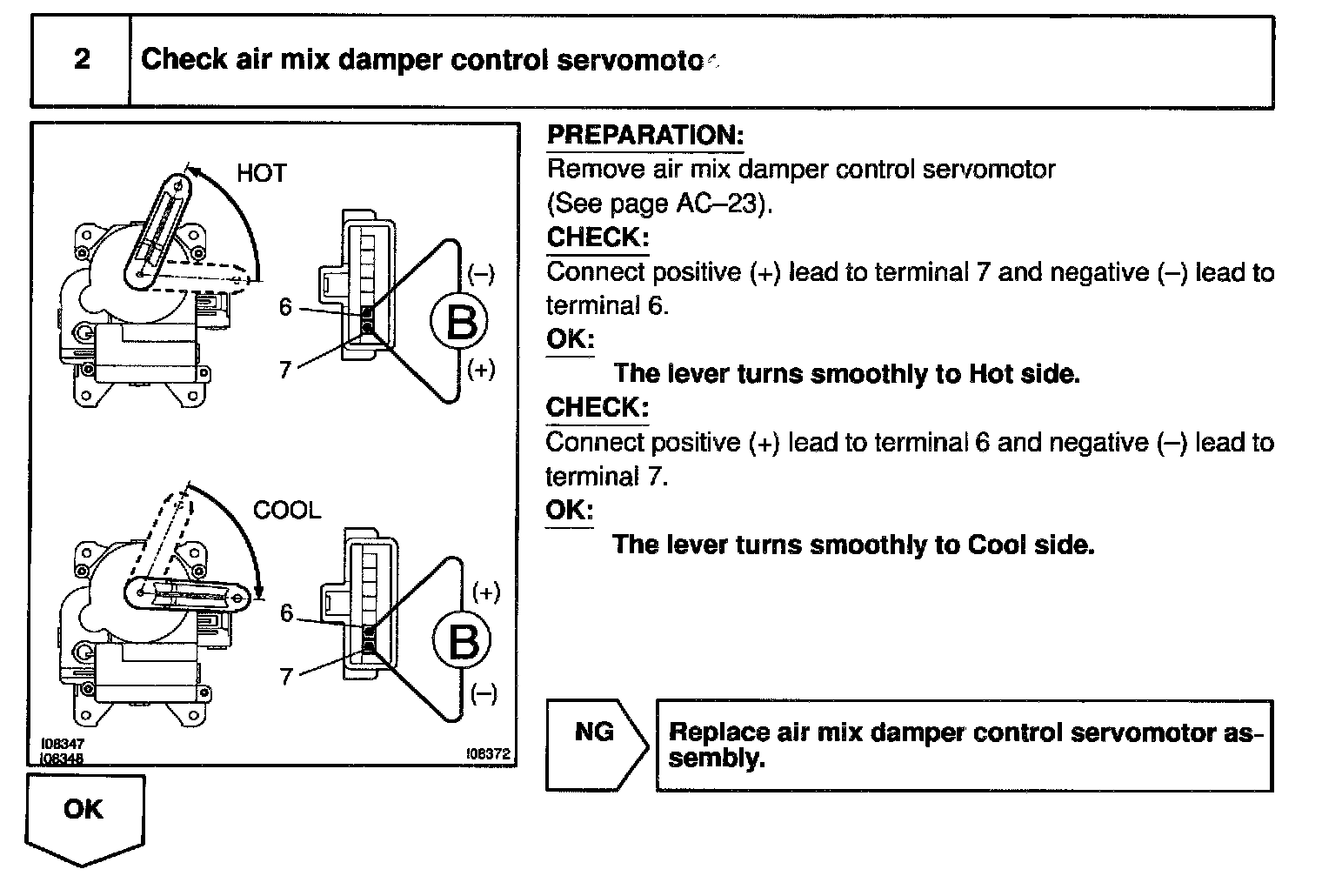

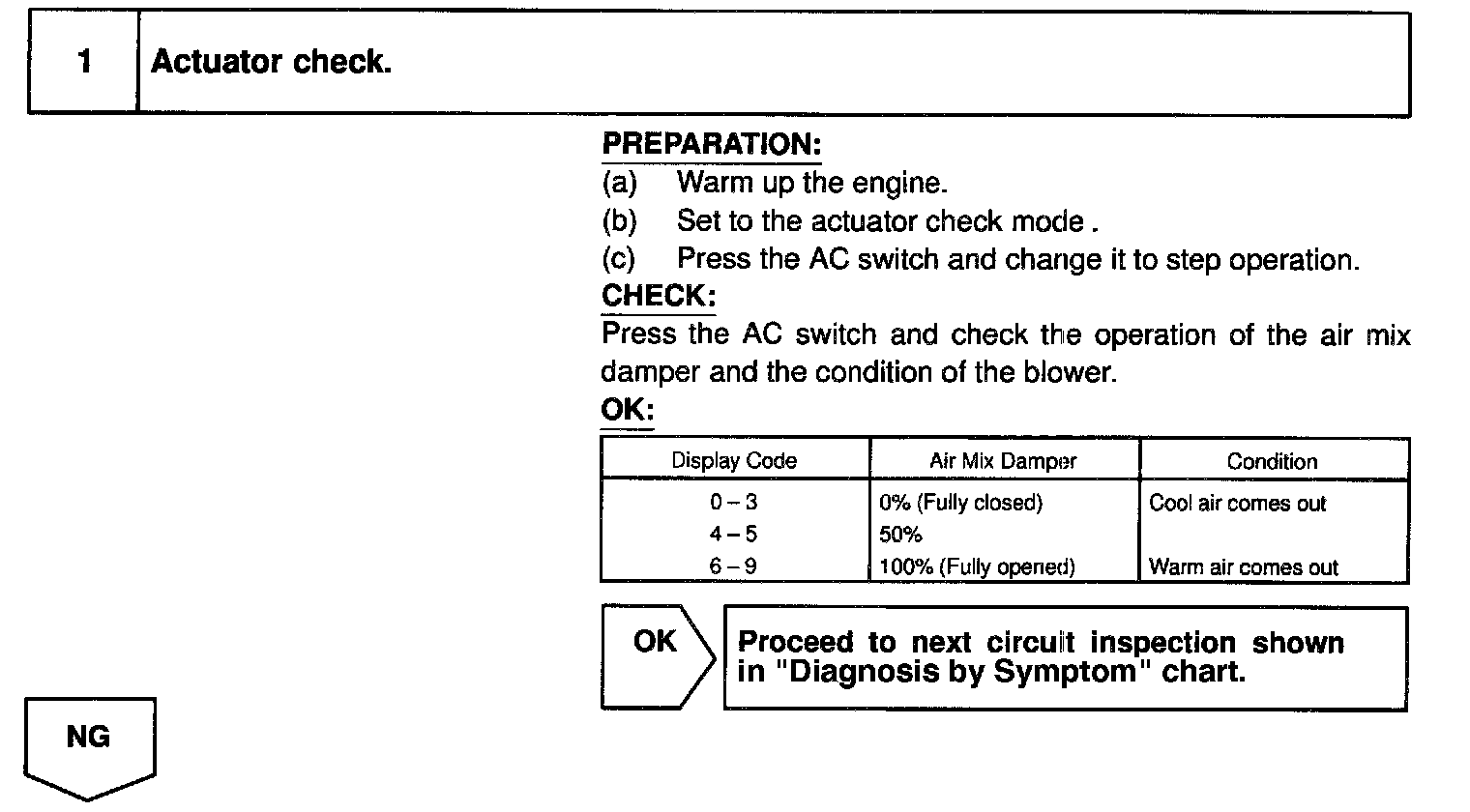

INSPECTION PROCEDURE
