B1433

CIRCUIT DESCRIPTION

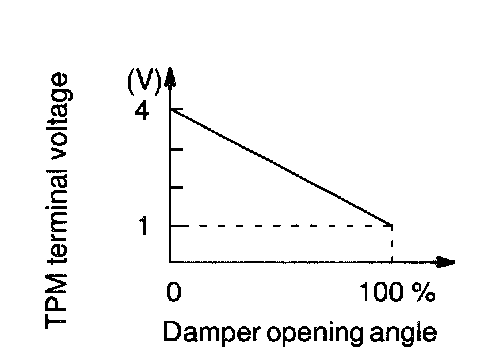

This sensor detects the position of the air mix damper and sends the appropriate signals to the A/C ECU (Combination meter ECU).
The position sensor is built into the air outlet damper control servomotor assembly.

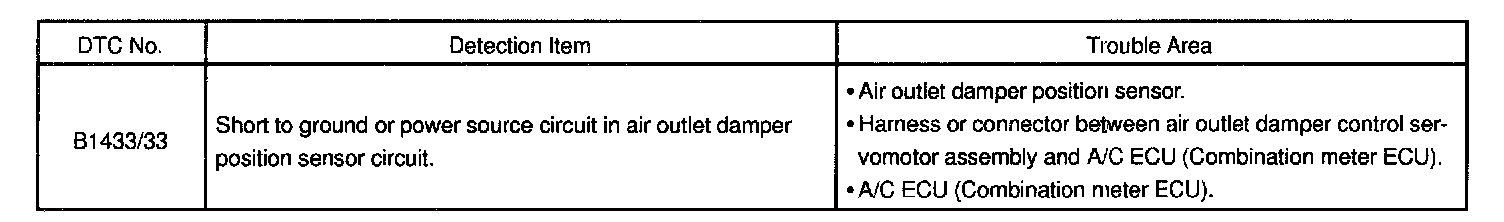

DETECTING CONDITION

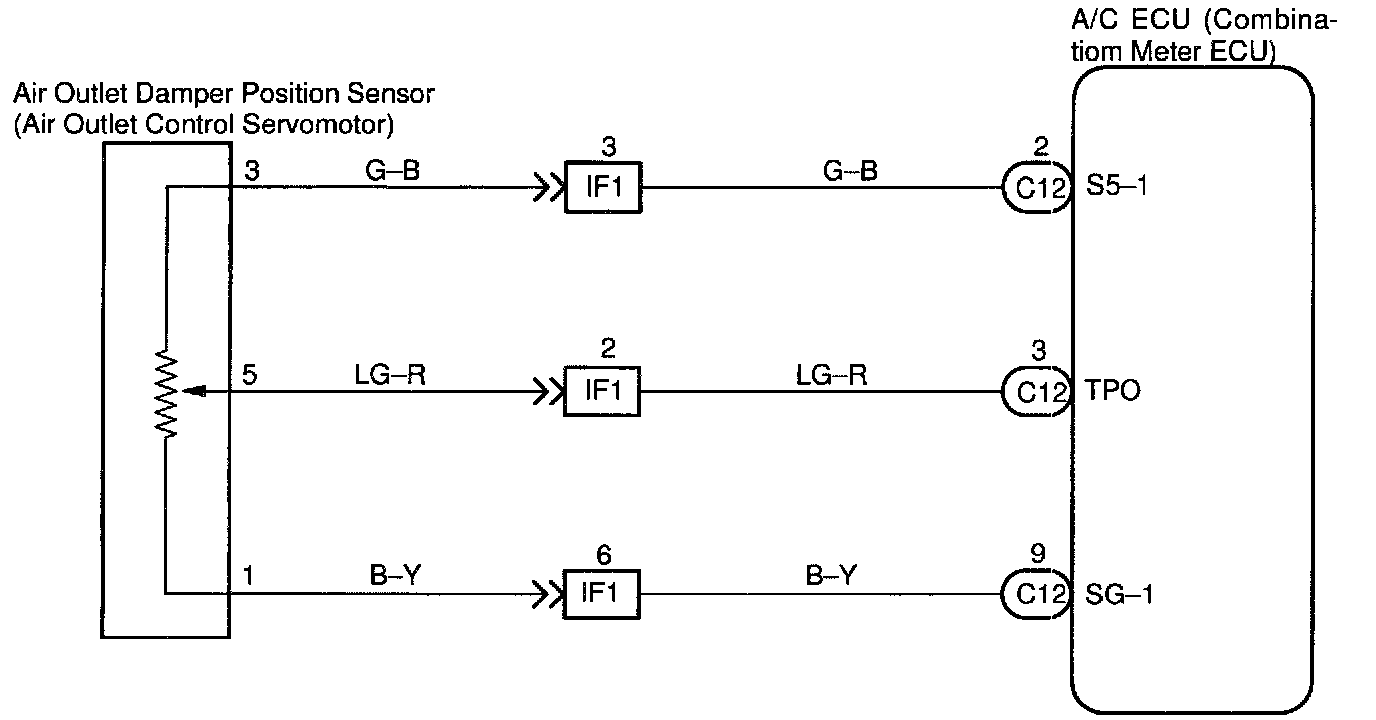

WIRING DIAGRAM

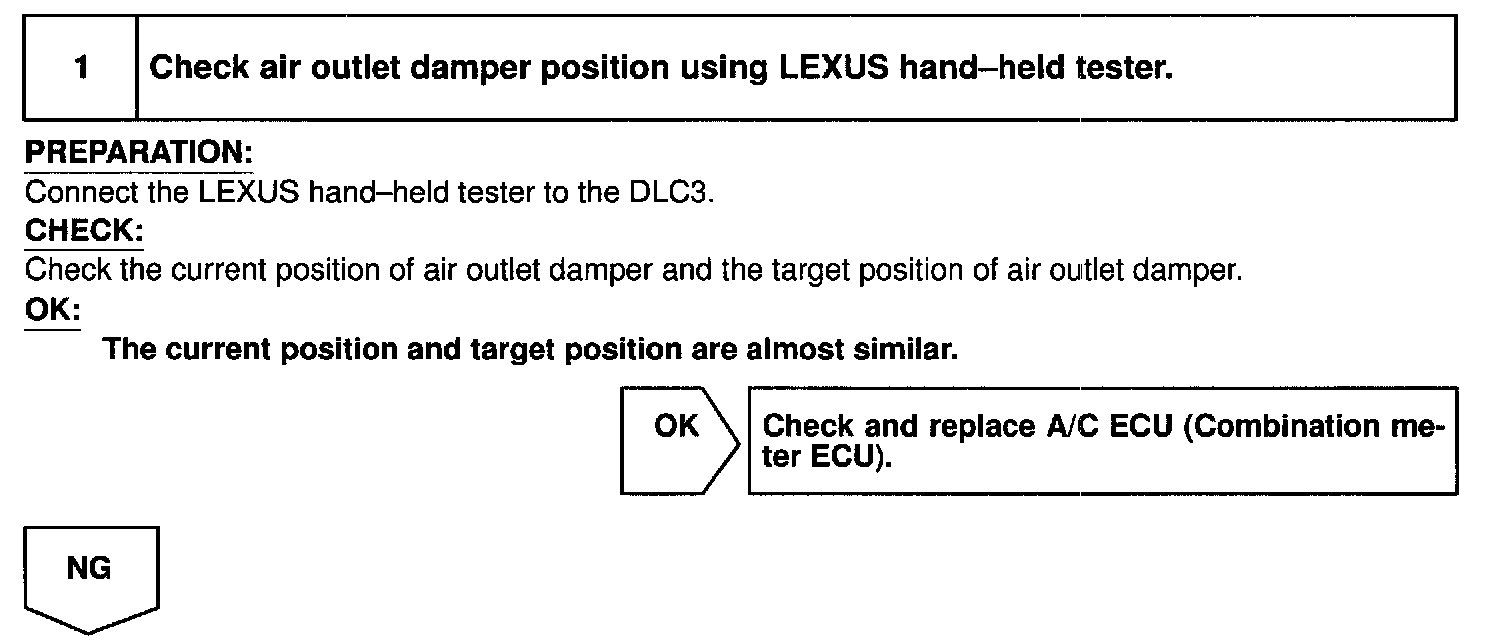

Step 1:

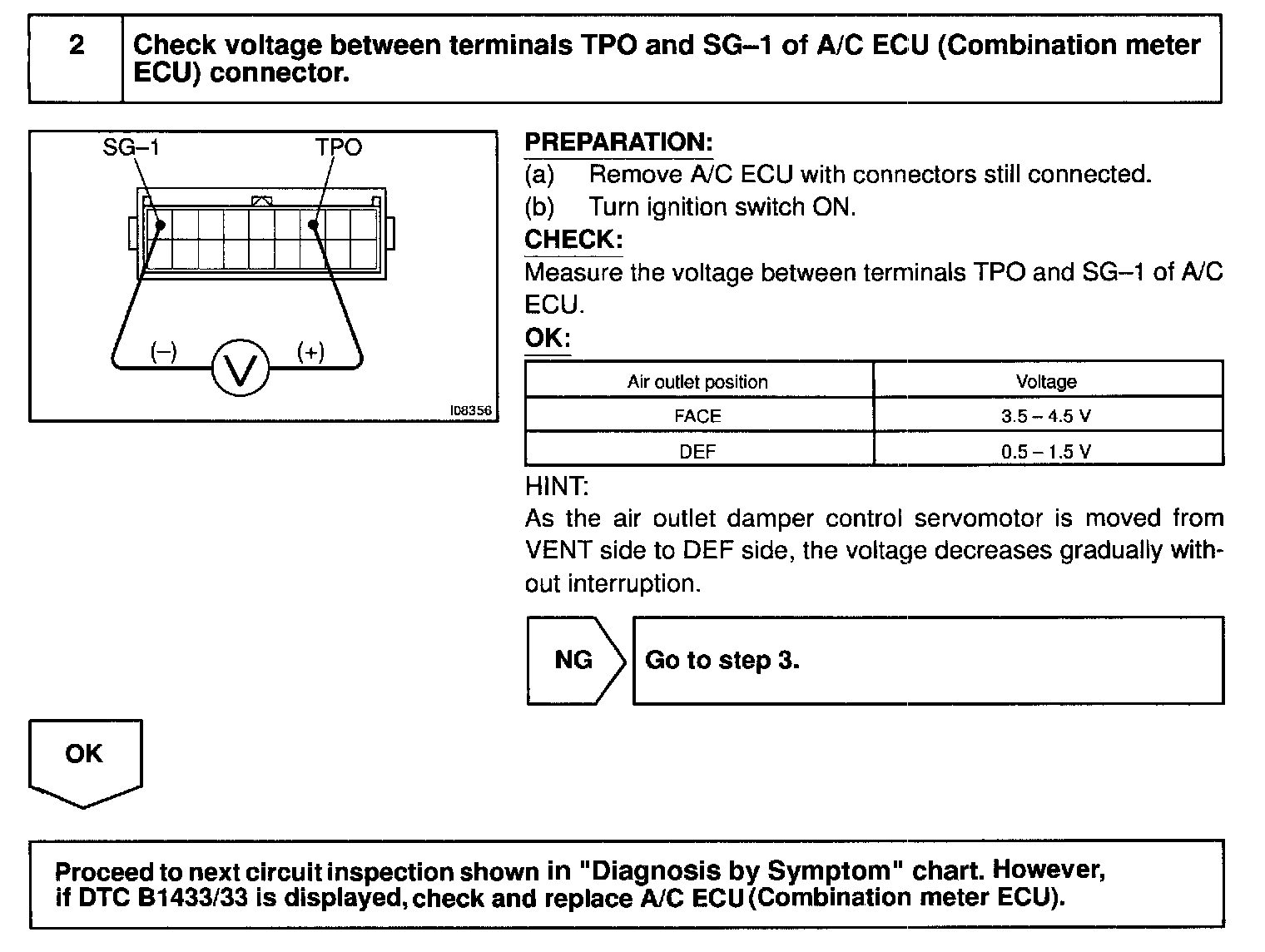

Step 2:

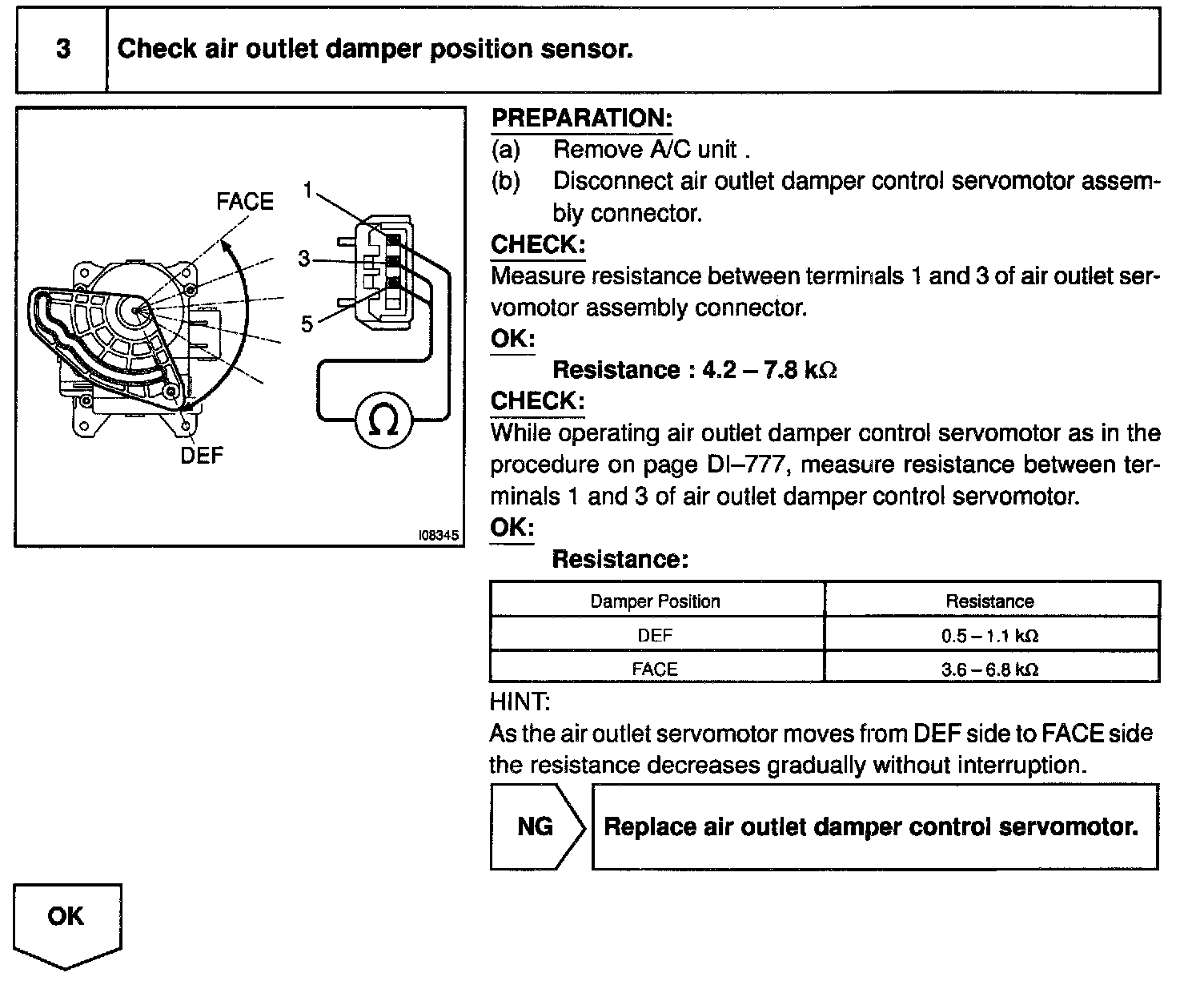

Step 3:

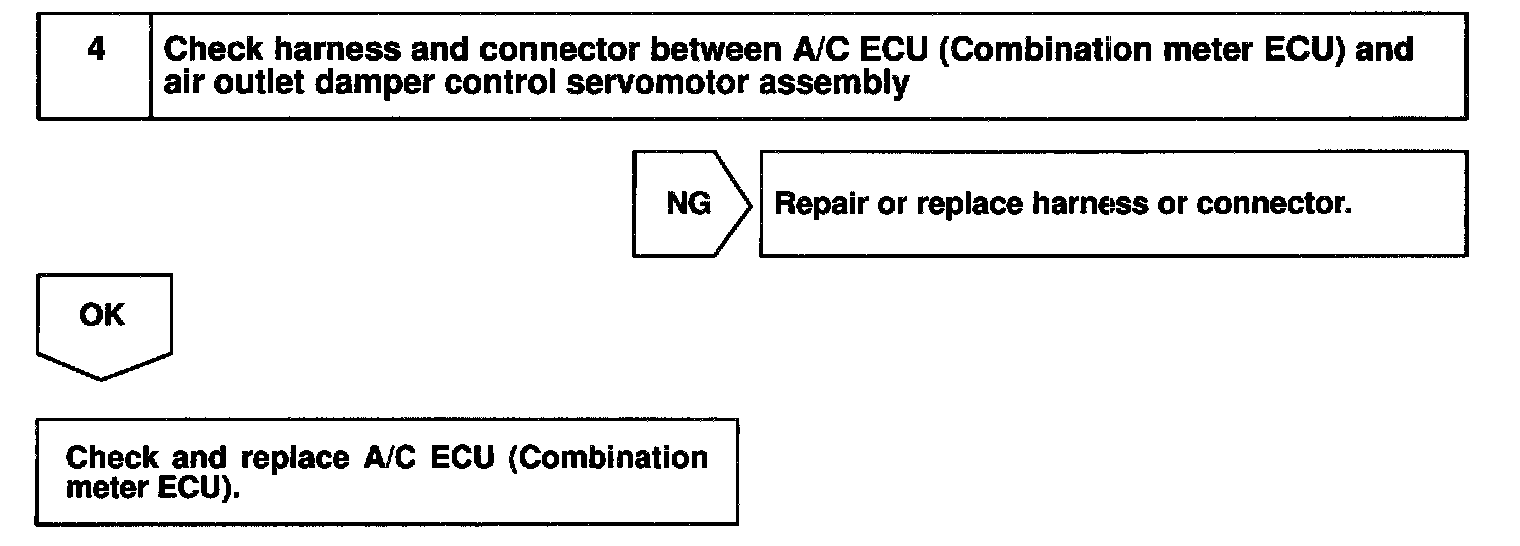

Step 4:

INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection from step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
