Body Removal

Body

Removal

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

NOTE:
Some illustrations may show the engine removed for clarity.

All vehicles
1 Remove the battery for access. For additional information, refer to Battery




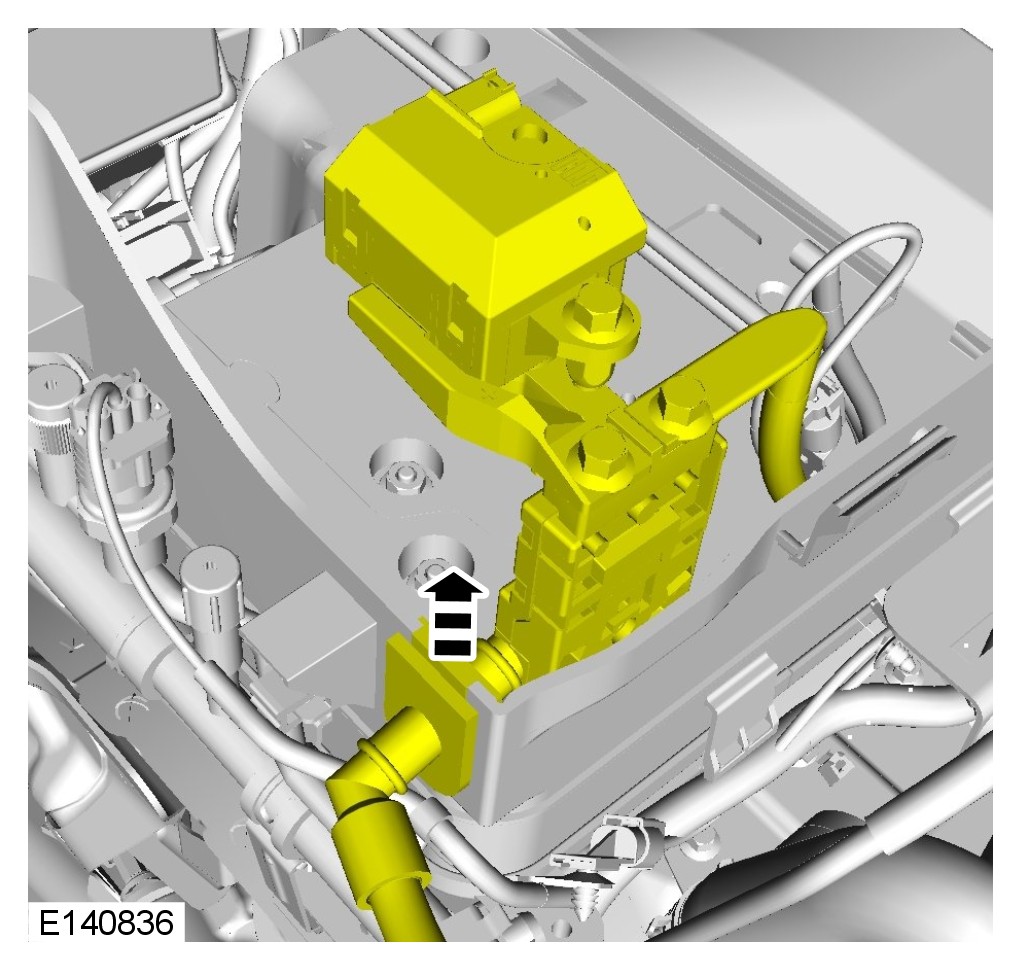

2




3




4
NOTE:
RHD illustration shown, LHD is similar.





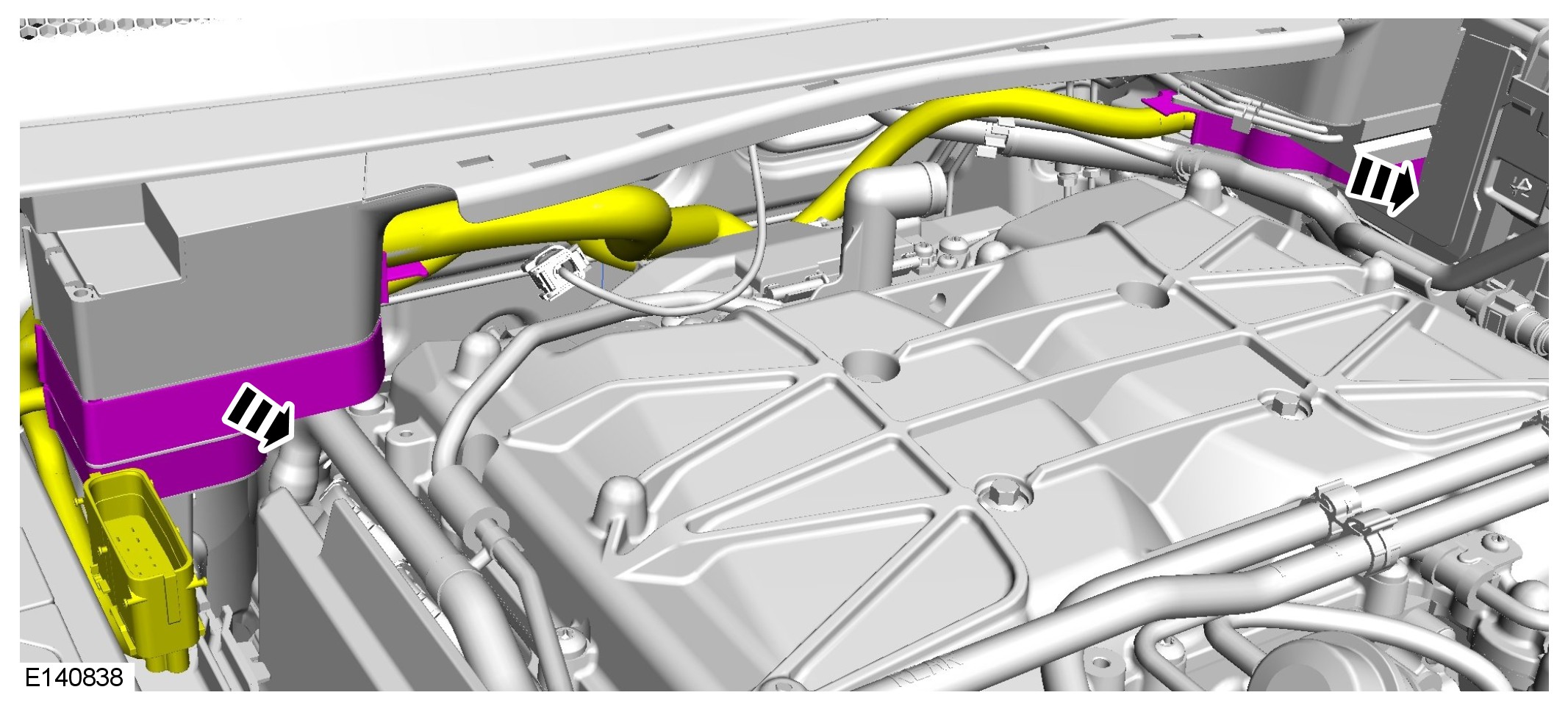

5




6




7




8
9 For additional information, refer to Air Cleaner LH

10 For additional information, refer to Air Cleaner RH

11 For additional information, refer to Coolant Expansion Tank - V8 S/C 5.0L Petrol, 5.0L

12 For additional information, refer to Air Conditioning (A/C) System Recovery, Evacuation and Charging

Vehicles with active damping





13

All vehicles





14
CAUTION: Make sure that all openings are sealed. Use new blanking caps.

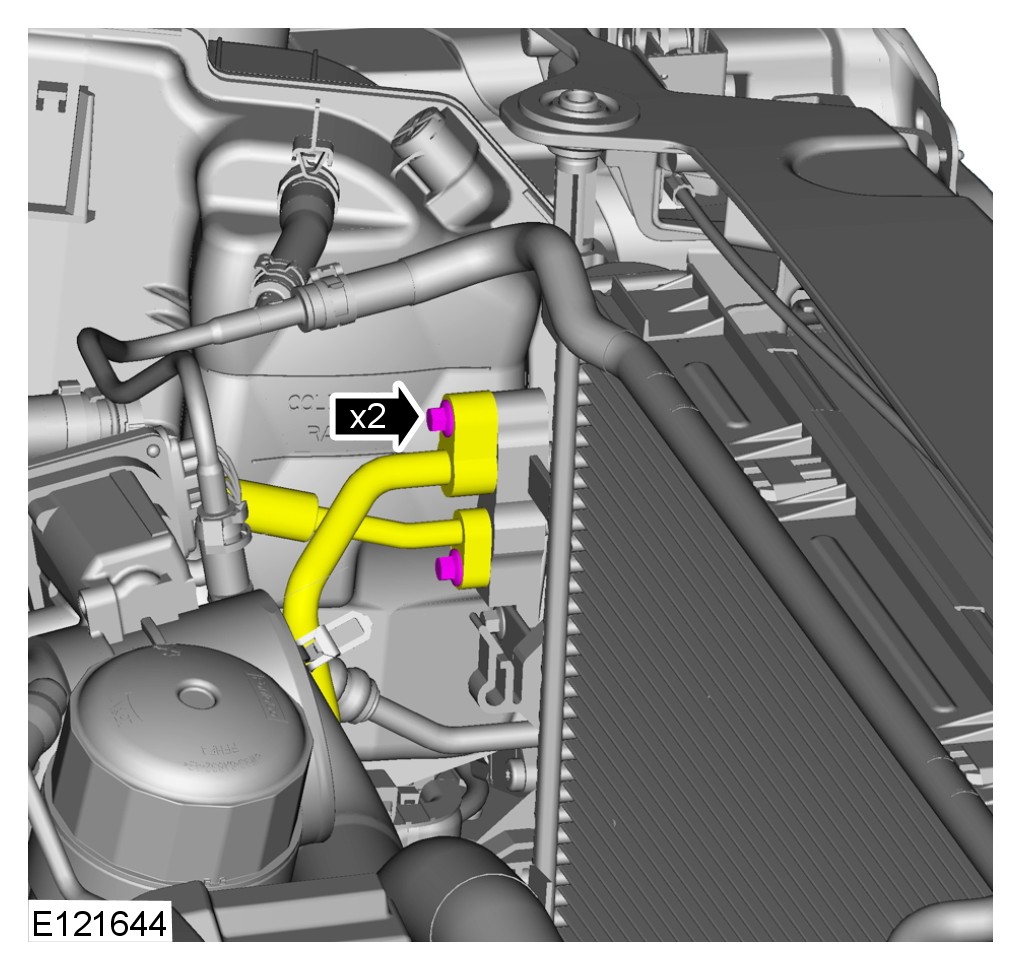

- Remove and discard the 2 O-ring seals.





15
CAUTION: Make sure that all openings are sealed. Use new blanking caps.

- Discard the O-ring seal.





16
WARNING: Be prepared to collect escaping fluid.






17





18

19 For additional information, refer to Auxiliary Battery Tray





20





21





22





23





24





25





26





27
- Remove and discard the bolt.

28
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.

29 For additional information, refer to Front Bumper Cover





30





31





32





33





34





35





36





37





38





39





40





41





42
CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

- Position an absorbent cloth to collect fluid spillage.
- Disconnect the line union.
- Remove the clip.





43
CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

- Position an absorbent cloth to collect fluid spillage.
- Disconnect the line union.
- Remove the clip.





44

45 For additional information, refer to Rear Bumper Cover





46

47 Remove the fuel filler cap.





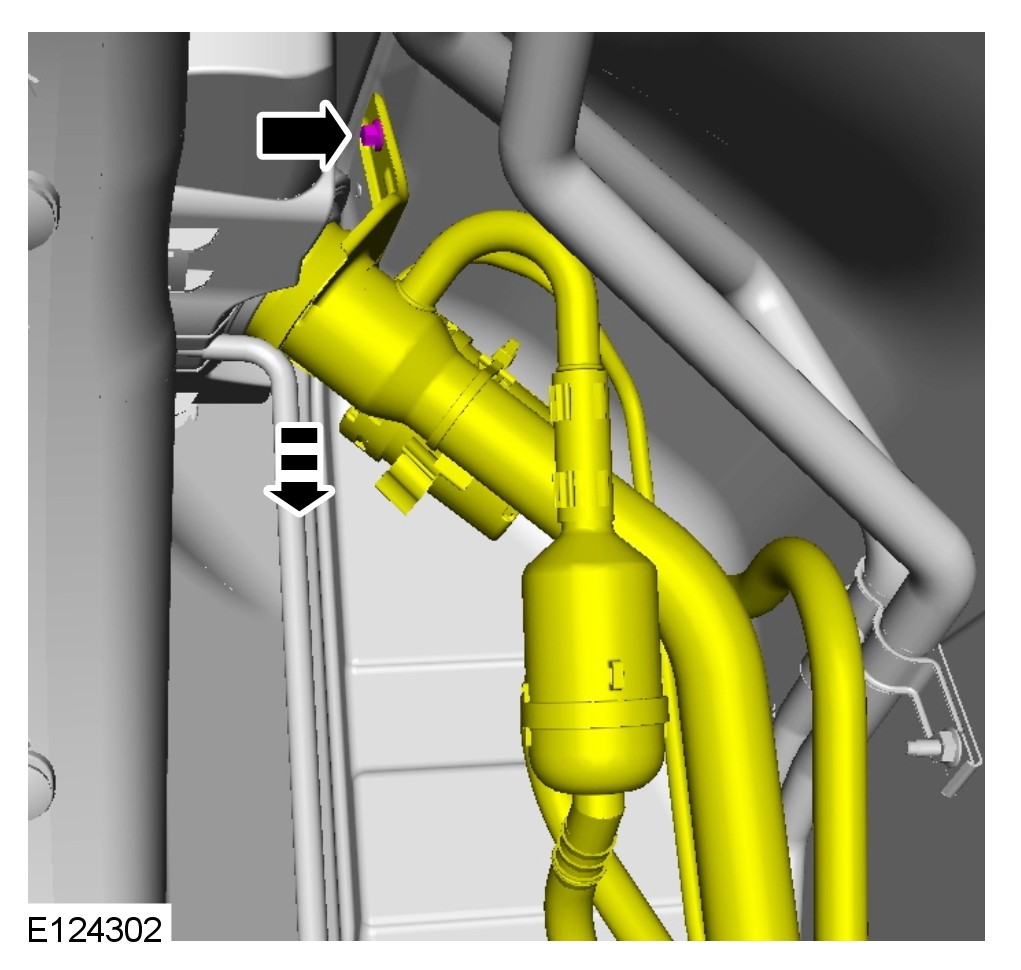

48





49
CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

- Position an absorbent cloth to collect fluid spillage.
- Disconnect the line union.
- Remove the clip.





50
CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

- Position an absorbent cloth to collect fluid spillage.
- Disconnect the line union.
- Remove the clip.





51





52





53





54
CAUTION: Note the fitted position of the seal.






55





56





57





58





59





60





61





62

63 Lower the vehicle.





64 Remove and discard the 10 body mount bolts.
- Remove the 10 spacing washers.





65

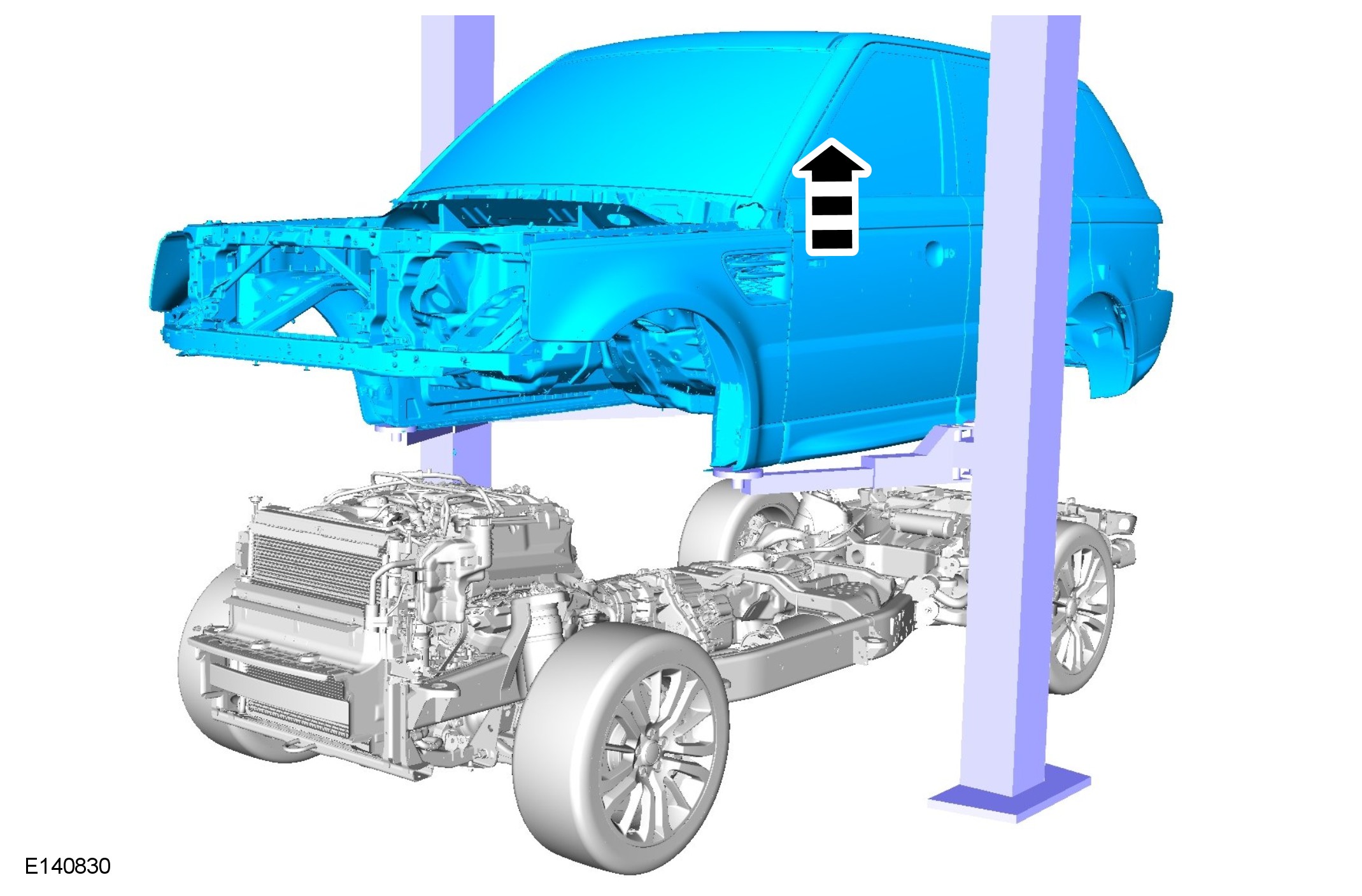

CAUTION: To prevent the body becoming unstable when raised from the integrated body frame, install the vehicle tie down straps.
NOTE:
Note the fitted position of the body mounts.
Using an assistant raise and support the body.
- Remove the body mounts.
