Rear Door Fixed Window Glass

Rear Door Fixed Window Glass

Removal
1 Remove the rear door window motor and regulator assembly. For additional information, refer to Rear Door Window Regulator and Motor Service and Repair
2 Lower the rear door glass to the bottom of the door.

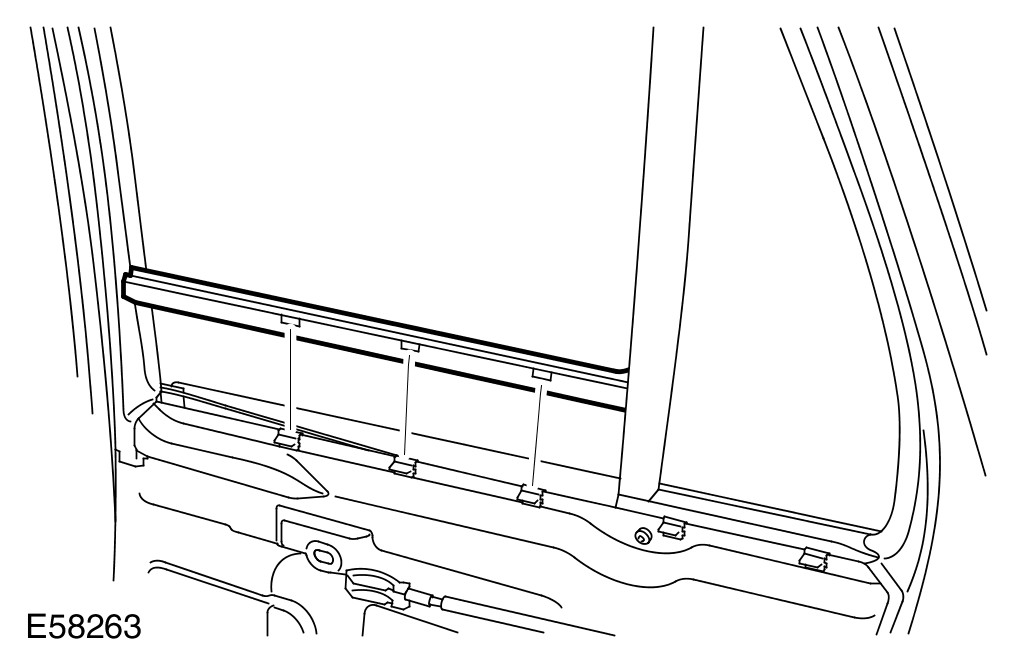

- Remove the wedge.

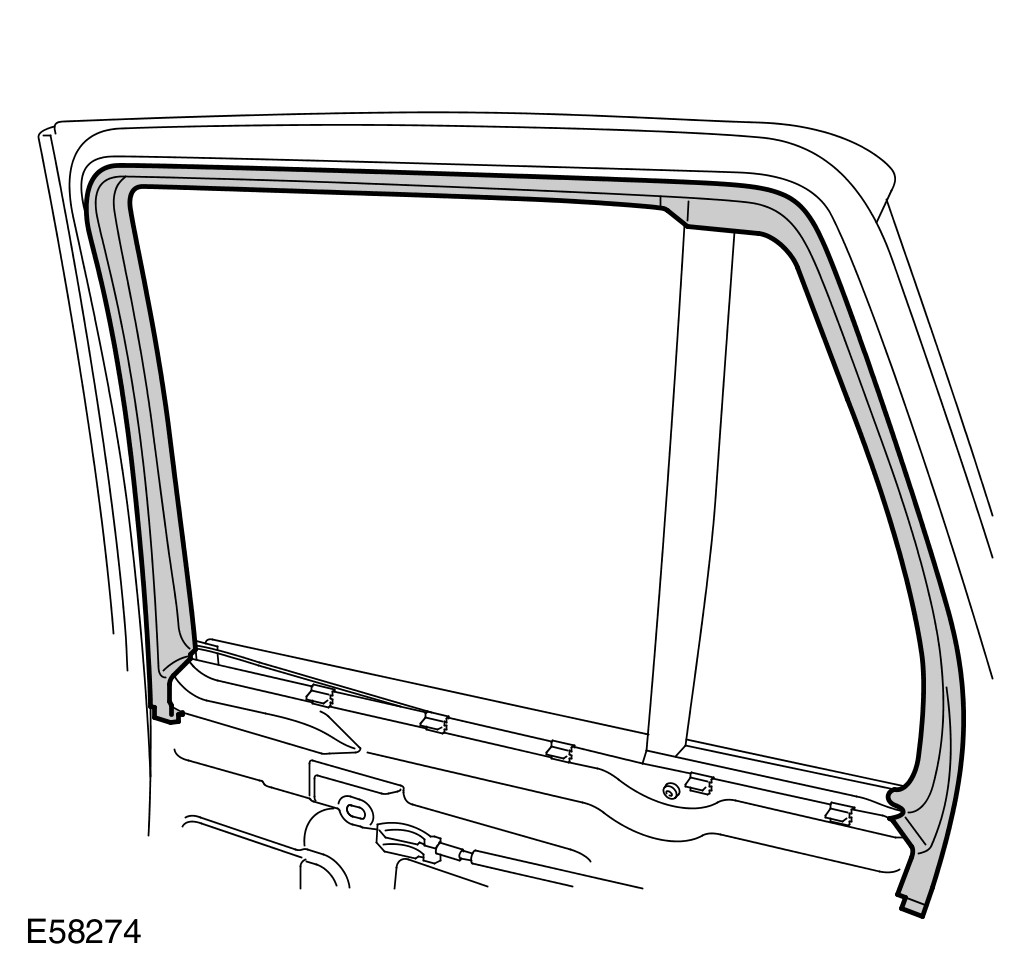

3 Remove the rear door frame trim.
- Carefully release the adhesive strip.

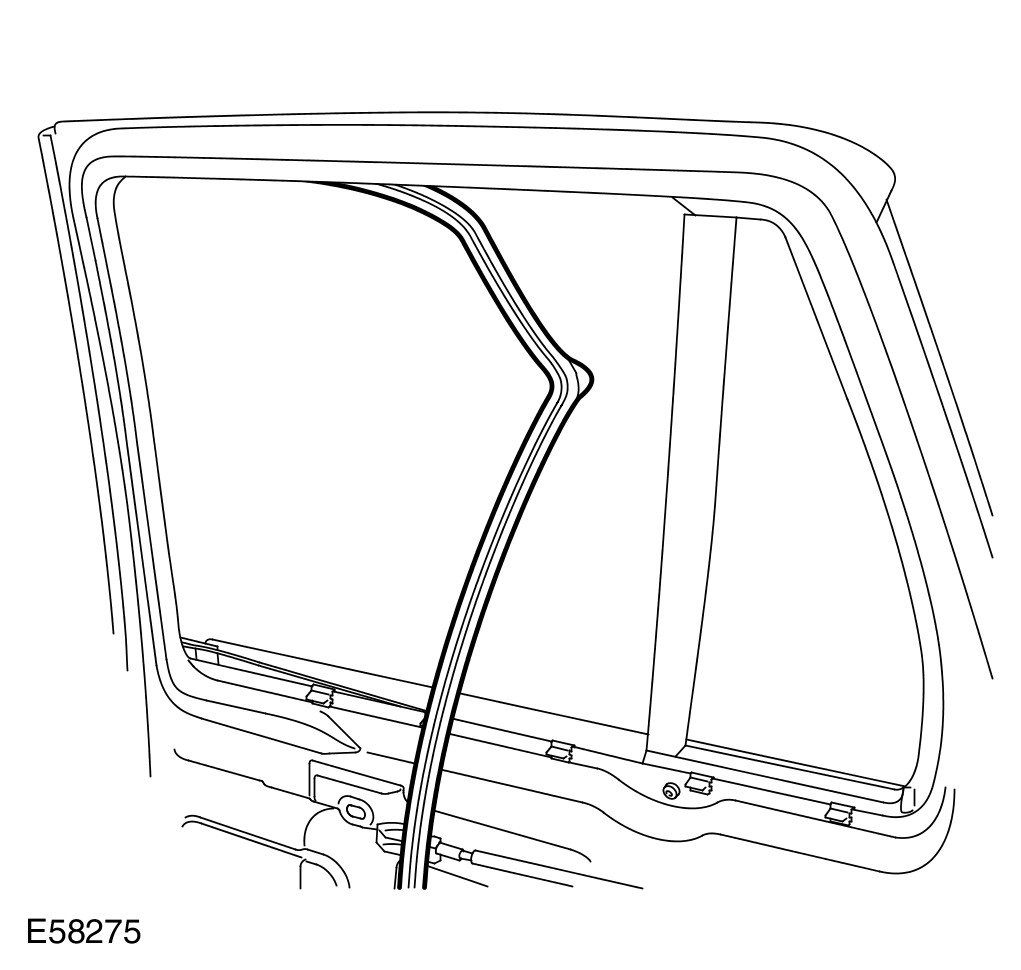

4 Carefully remove the inner waist seal.




5 Release the lining from the glass rear guide channel.

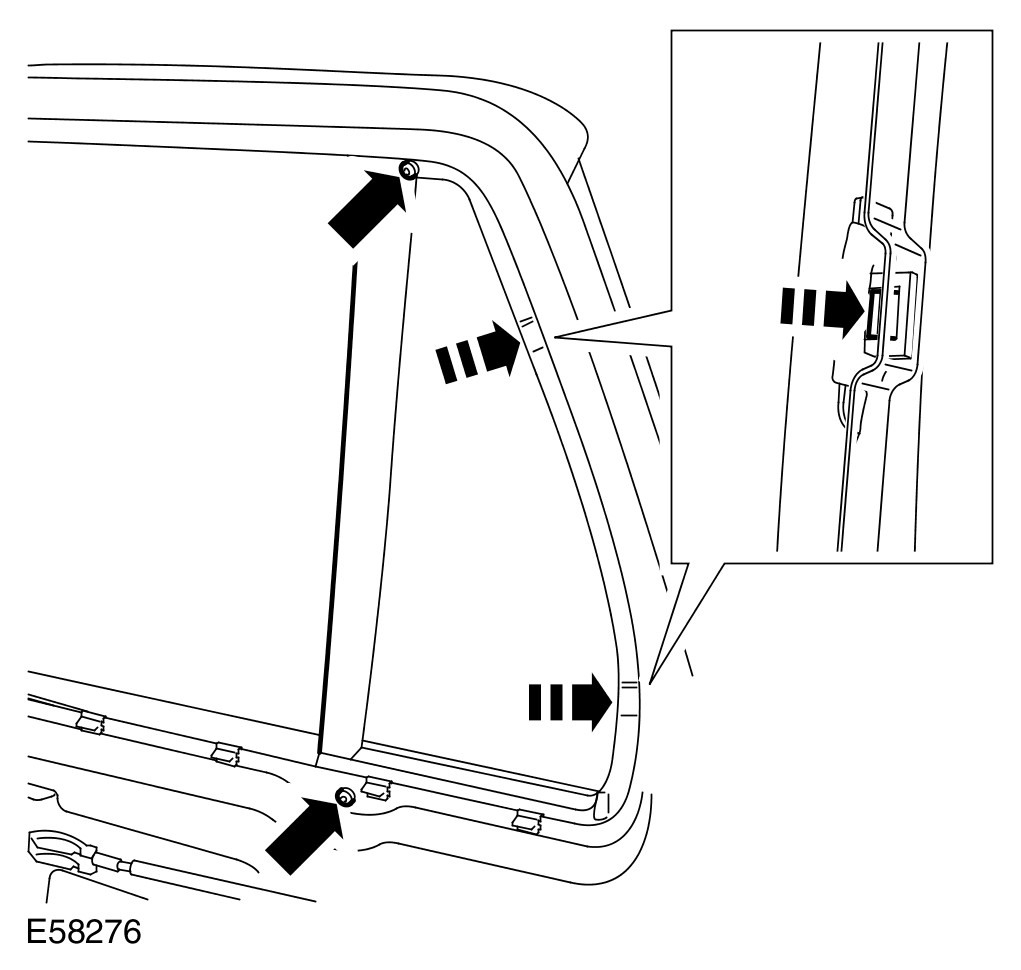

6 Remove the rear door window fixed glass.
- Remove the 2 Torx screws.
- Release the 2 clips.

Installation
1 Install the rear door window fixed glass.
- Clean the component mating faces.
- Secure the 2 clips.
- Tighten the Torx screws to 10 Nm (7 lb.ft).
2 Install the guide channel lining.
3 Install the inner waist seal.
4 Install the door frame trim.
- Clean the component mating faces.
- Remove backing tape from adhesive strip.
5
NOTE:
Wedge the glass in this position.
Raise the rear door glass fully.
- Engage the door glass with the channel.
6 Install the rear door window motor and regulator assembly. For additional information, refer to Rear Door Window Regulator and Motor Service and Repair
