Transfer Case Input Shaft Seal

Transfer Case Input Shaft Seal

Special Service Tools






Oil seal remover

303-903(LRT-12-092)

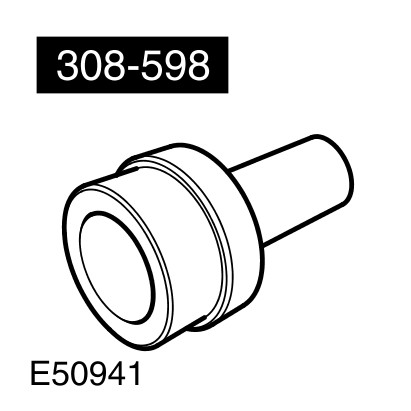

Oil seal installer

308-598

Removal
1
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
2 Remove the transfer case. For additional information, refer to Transfer Case - 5.0L Transfer Case Removal




3
CAUTION: Care must be taken to avoid damage to the seal register and running surface.

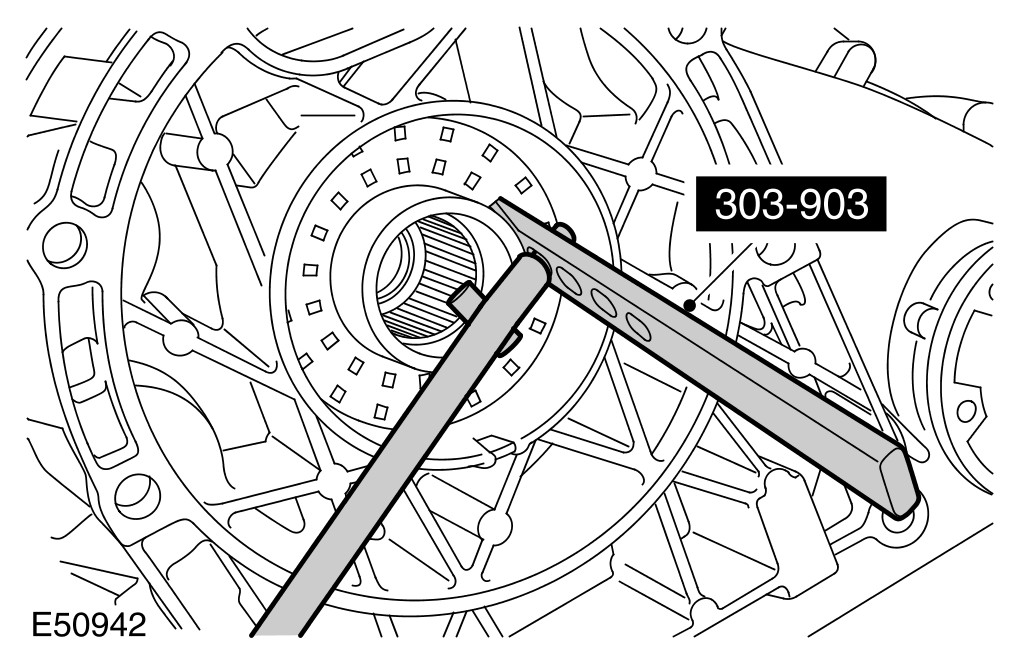

Carefully remove and discard the oil seal.
- Use the special tool.

Installation





1
CAUTION: Oil seals must be fitted dry.

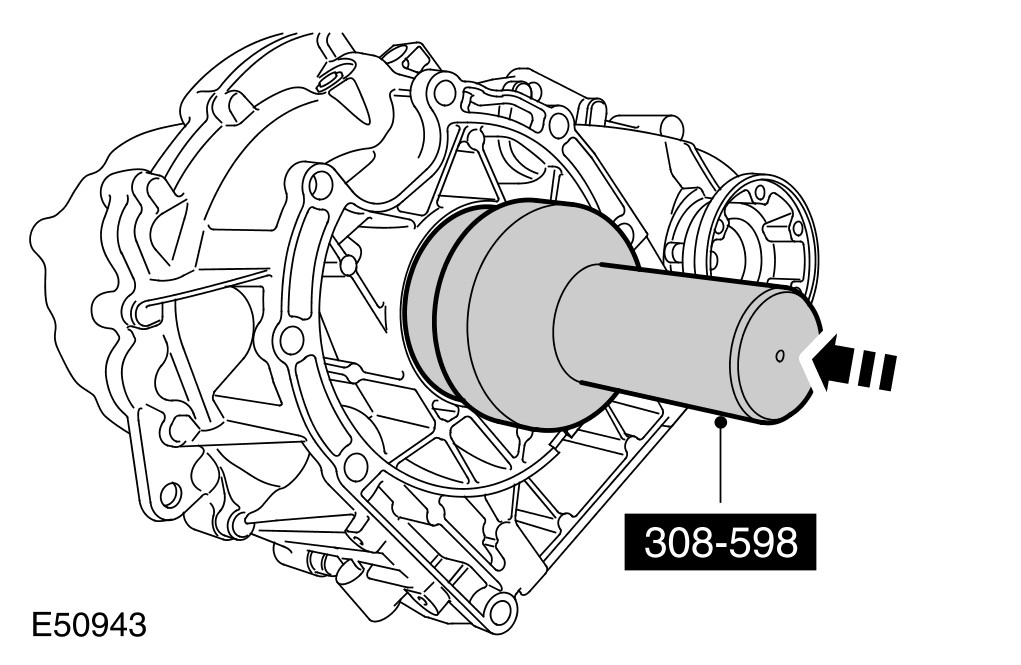

Install a new seal.
- Clean the seal register.
- Use the special tool.
2 Install the transfer case. For additional information, refer to Transfer Case - 5.0L Transfer Case Removal
