Front Drive Axle/Differential

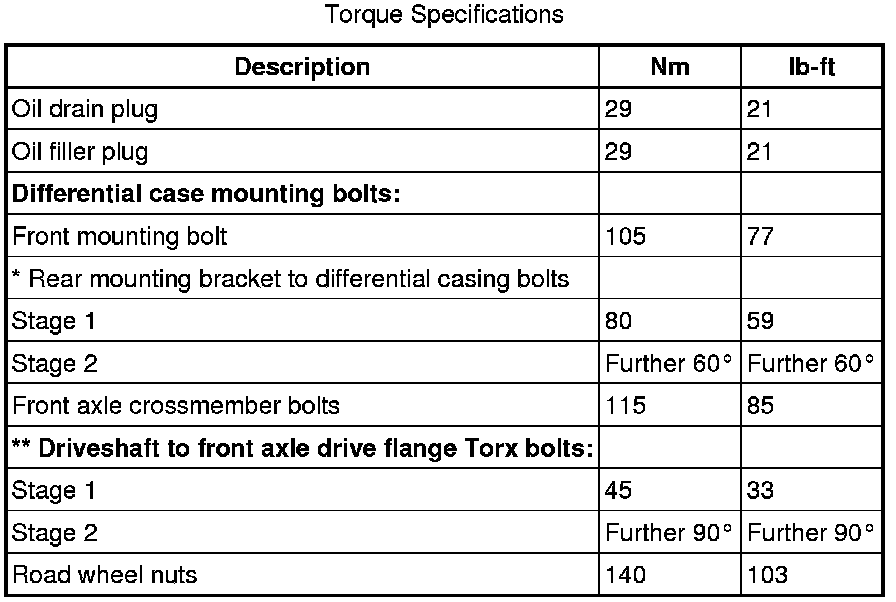

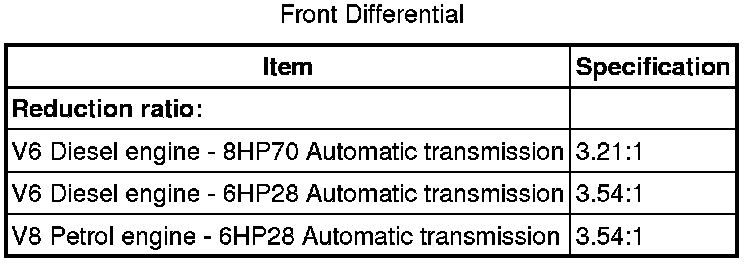

Specifications

NOTE:
Do not use any lubricant other than that specified










* New bolts must be installed
** New patchlock torx bolts must be installed
