Part 3

Vehicle Dynamic Suspension

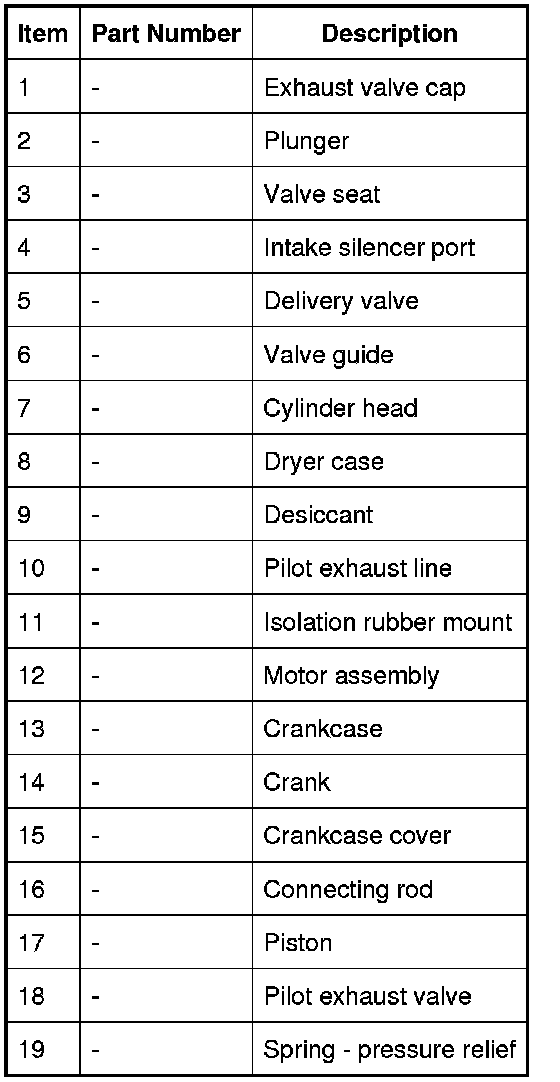

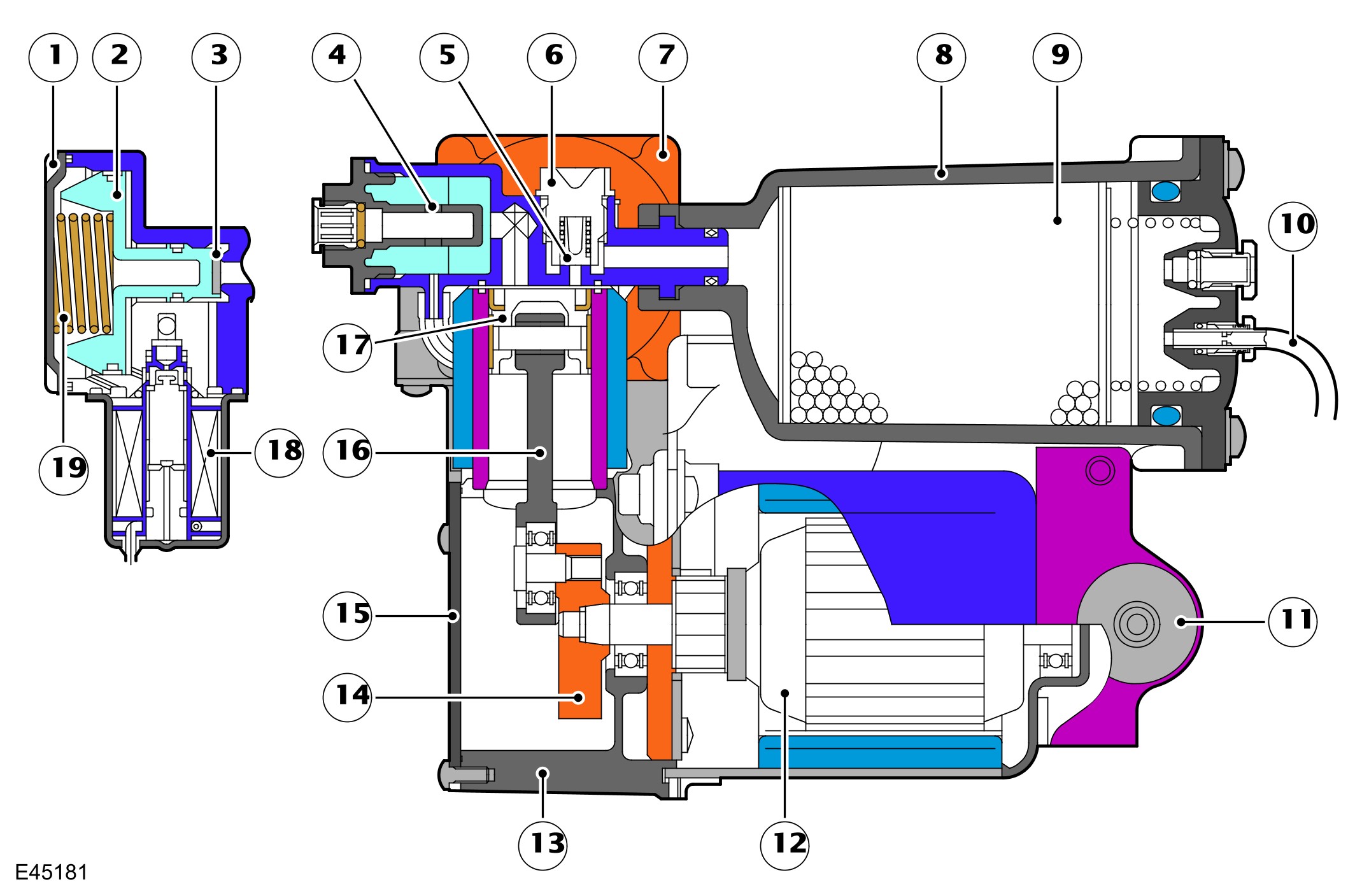

Air Supply Unit - Sectional View









Electric Motor
The electric motor is a 12V DC (direct current) motor with a nominal operating voltage of 13.5V. The motor drives a crank which has an eccentric pin to which the compressor connecting rod is attached.
The motor is fitted with a temperature sensor on the brush Printed Circuit Board (PCB) assembly. The sensor is connected to the air suspension control module which monitors the motor temperature and can suspend motor operation if the operating thresholds are exceeded.

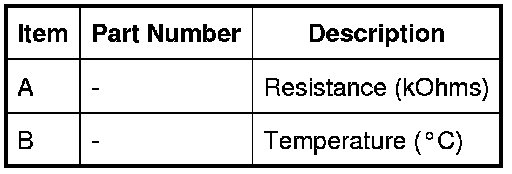

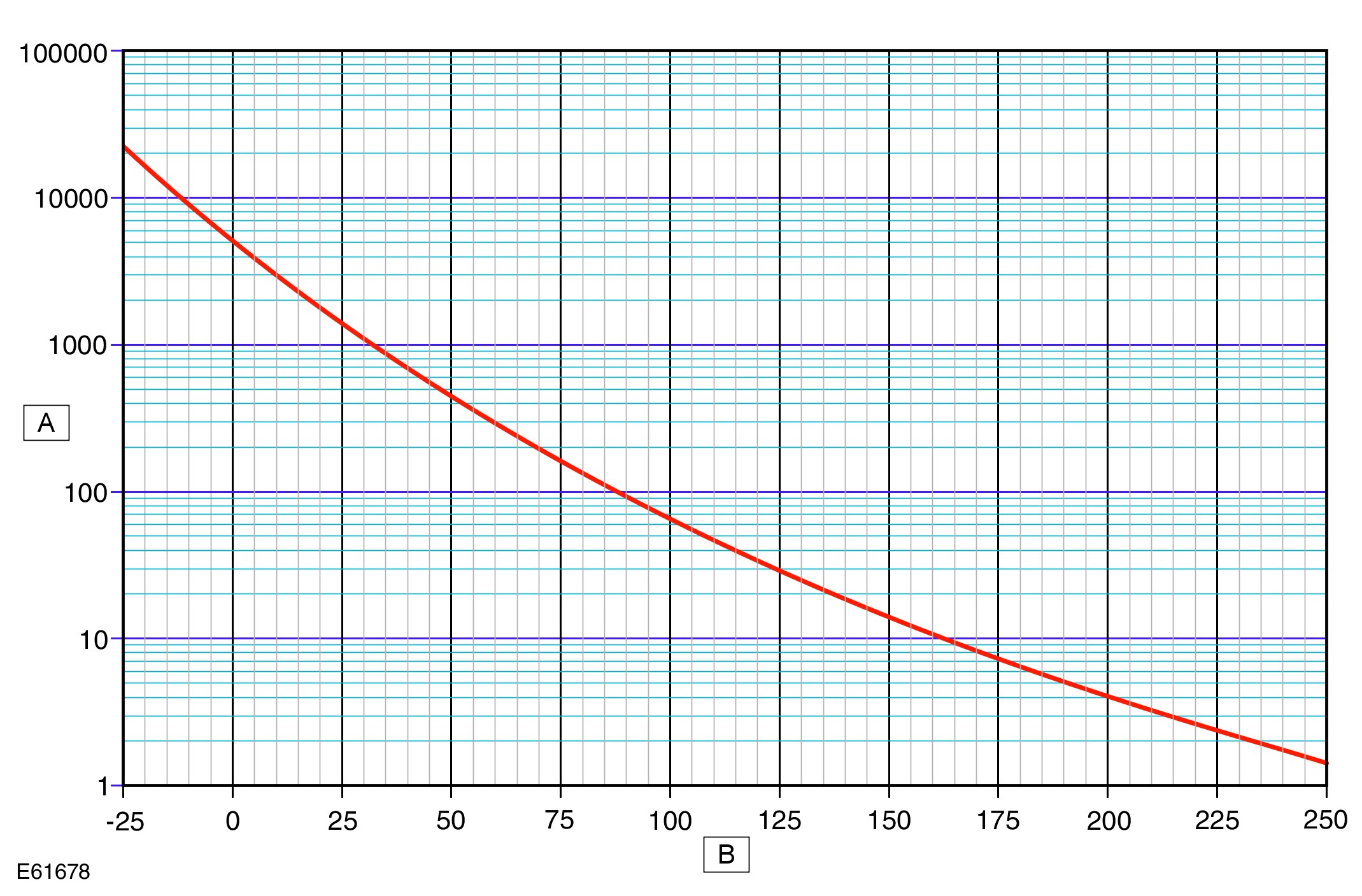

The following graph shows motor temperature sensor resistance values against given temperatures.

NOTE:
This graph is also applicable for the compressor cylinder head temperature sensor.

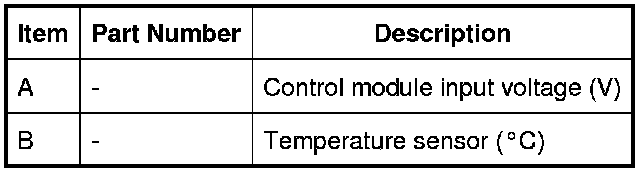

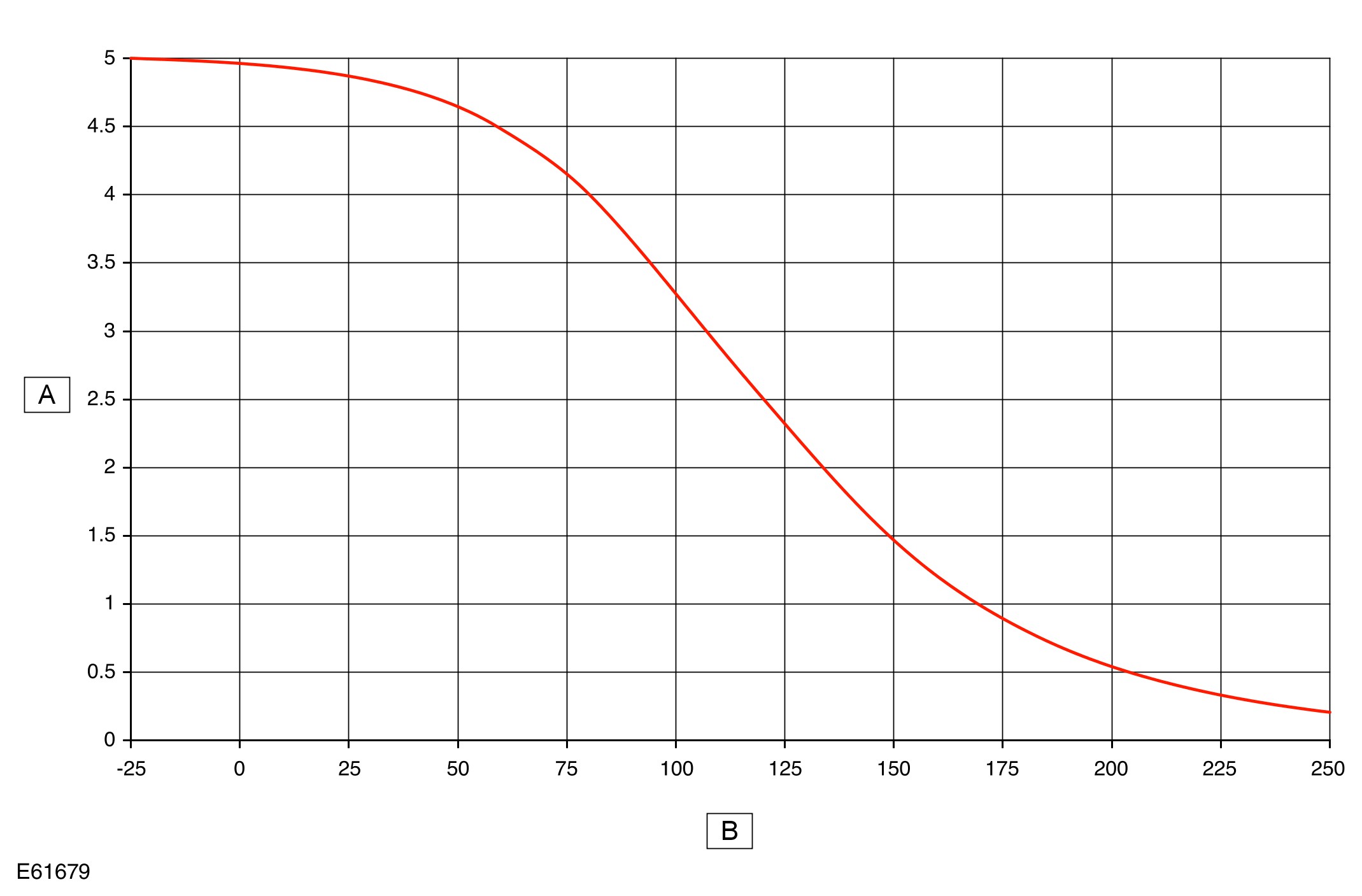

The following graph shows air suspension control module output voltages against motor temperature sensor temperatures.

NOTE:
This graph is also applicable for the compressor cylinder head temperature sensor.









Compressor
The compressor is used to supply air pressure to the air suspension reservoir. The air suspension control module monitors the pressure within the reservoir and, when the engine is running, maintains a pressure of 16.8 bar gage (244 lbf/in2).
The compressor comprises a motor driven connecting rod and piston which operate in a cylinder with a separate cylinder head. The motor rotates the crank moving the piston up and down in the cylinder bore. The air in the cylinder is compressed with the up stroke and is passed via the delivery valve through the air dryer and into the system.
The cylinder head is fitted with a temperature sensor. The sensor is connected to the air suspension control module which monitors the cylinder temperature and can suspend motor and compressor operation if an overheat condition occurs.
The compressor will not be allowed to start if the pressure sensor reads 4 bar (absolute).

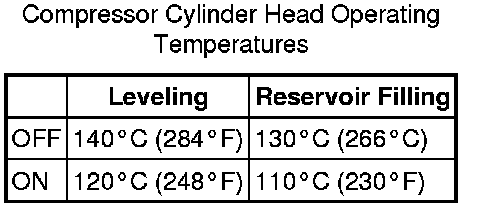

The following table shows the control module operating parameters for the differing air supply unit functions and the allowed compressor cylinder head operating temperatures.





Refer to the motor temperature sensor graph for compressor cylinder head temperature sensor resistance values and the air suspension control module output voltage / temperature sensor graph.
Air Dryer
Attached to the compressor is the air dryer which contains a Desiccant for removing moisture from the compressed air. Pressurized air is passed through the air dryer which removes any moisture in the compressed air before it is passed into the reservoir and/or the system.
When the air springs are deflated, the exhaust air also passes through the air dryer, removing the moisture from the unit and regenerating the Desiccant.
The air dryer is an essential component in the system ensuring that only dry air is present in the system. If moist air is present, freezing can occur resulting in poor system operation or component malfunction or failure.
Pilot Exhaust Valve
Attached to the cylinder head is a solenoid operated exhaust pilot valve. This valve is opened when the air springs are to be deflated or when the system pressure needs to be reduced.
The pilot exhaust valve is connected to the air delivery gallery, downstream of the air dryer. The pilot valve, when opened, operates the compressor exhaust valve allowing the air springs to be deflated.
When the solenoid is energized, pilot air moves the exhaust valve plunger, allowing pressurized air from the air springs and/or the reservoir to pass through the air dryer to atmosphere.
Exhaust Valve
The exhaust valve operates when the pilot exhaust valve is opened, allowing air returning from the air springs and/or the reservoir to be exhausted quickly.
The pilot exhaust valve also provides the system pressure relief function which protects the air springs from over inflation. The valve is pneumatically operated, responding to air pressure applied to it to overcome pressure from its internal spring. The valve is connected into the main pressure gallery which is always subject to the system pressure available in either the air springs or the reservoir. The valve is controlled by a spring which restricts the maximum operating pressure to between 22 to 27 bar gage (319 to 391 lbf/in2).
The minimum pressure in the system is also controlled by the exhaust valve to ensure that, even when deflated, the air springs contain a positive pressure with respect to atmosphere. This protects the air spring by ensuring it can still 'roll' over the piston without creasing.

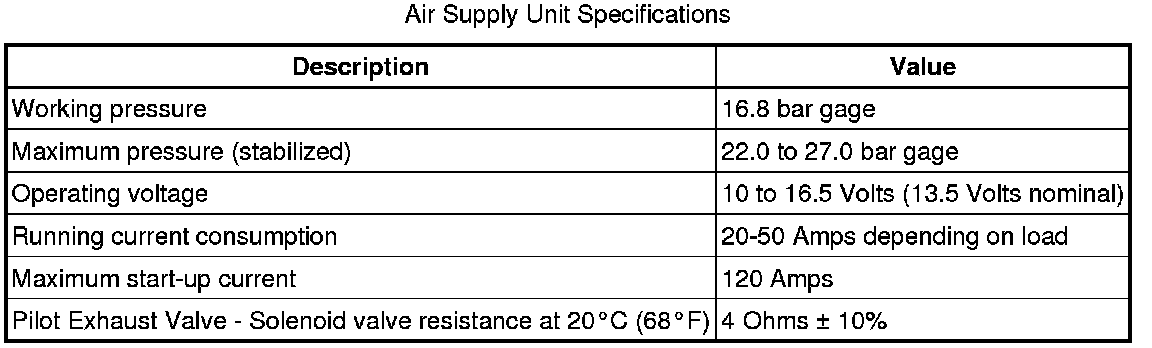

NOTE:
Resistance values will vary with coil temperature. Resistance of test leads must be measured before any readings are taken. Resistance value of the test leads must be subtracted from final solenoid resistance value.
There are a number of conditions that will inhibit operation of the air suspension compressor. It is vitally important that these inhibits are not confused with a system malfunction. A full list of compressor inhibits is contained in the compressor section of this document.

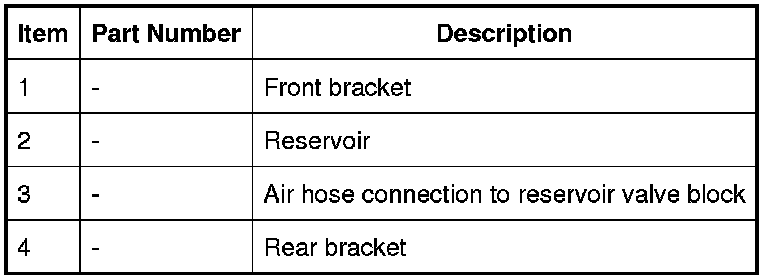

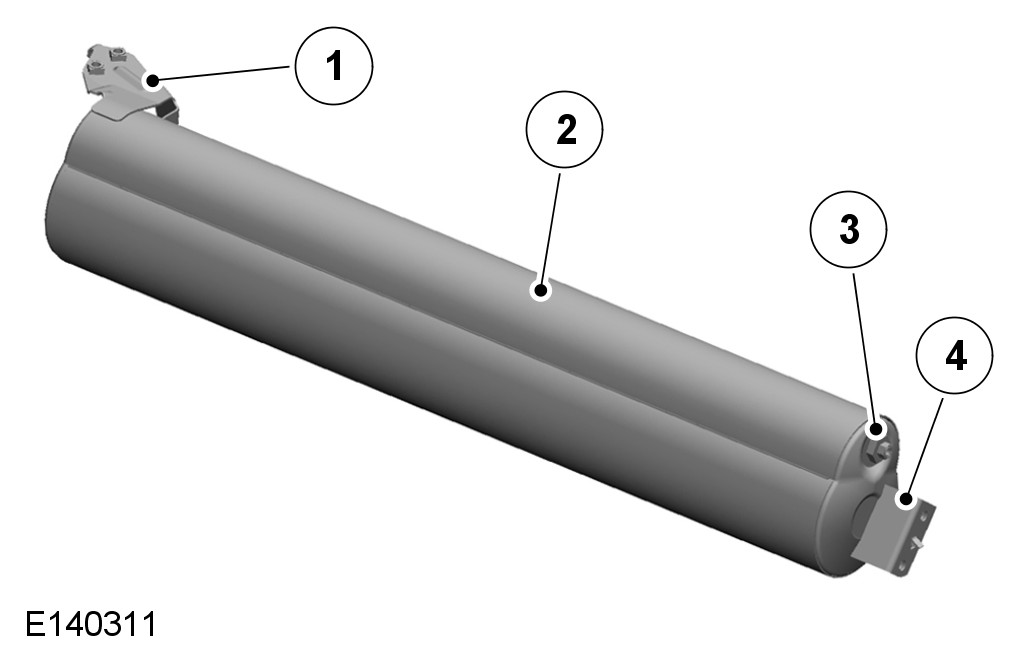

Reservoir









The reservoir is an air storage vessel which provides fast air suspension lift times by the immediate availability of pressurized air into the system.
The reservoir is a steel fabrication and is located on the outside of the left hand chassis rail, in front of the air supply unit. The reservoir has a bracket at each end which attach to the body mounting brackets on the chassis.
The rearward end of the reservoir has a 'Voss' air fitting which provides for the connection of the air hose between the reservoir and the reservoir valve block.
The reservoir has a capacity of 9 liters (550 in30). The nominal working pressure of the reservoir is 16.8 bar gage (243.6 lbf/in2), with a maximum pressure of 35 bar gage (507 lbf/in2).

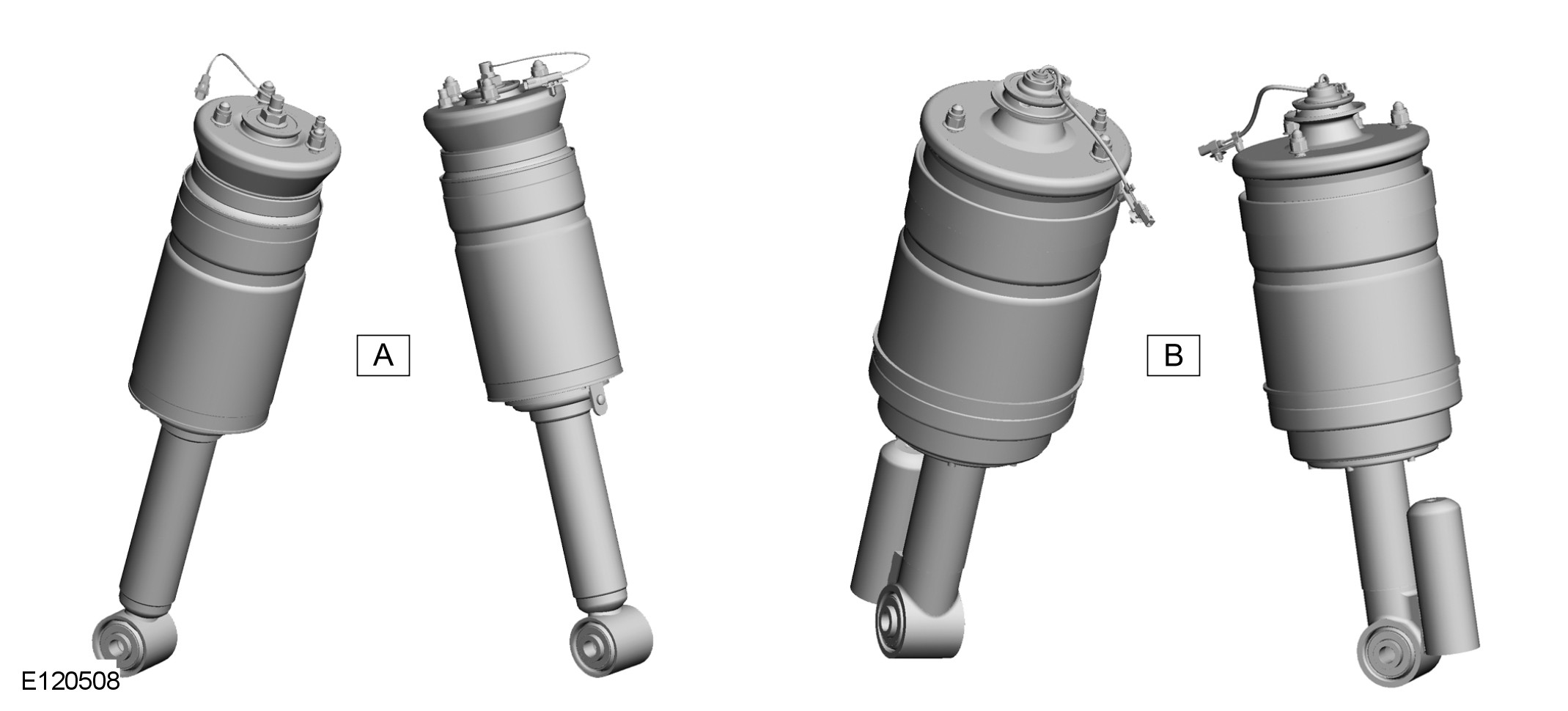

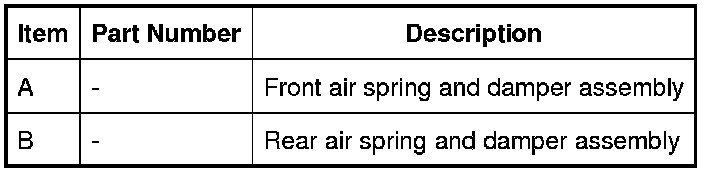

Air Springs









The air springs on the front and rear suspension are similar in construction. The air springs are manufactured from a flexible rubber and each air spring forms an air tight cavity which provides the required spring rate for each corner of the vehicle.
As the air spring is compressed, the rubber material compresses and rolls down the side of the vertical housing (piston) below the spring. An air connection port is located on the top of each spring and allows air to be added or removed from each spring. The port is connected via a Voss connector and a plastic tube to the axle valve block.
Replacement of an individual air spring does not require a full depressurization of the air suspension system. Only the corner concerned need be depressurized. This is achieved using a routine in the Land Rover approved diagnostic system.
When servicing of an air spring or a full system depressurization is required, the weight of the vehicle must be supported before the system is depressurized. On reassembly, the air spring must be fully pressurized before the weight of the vehicle is applied to it.

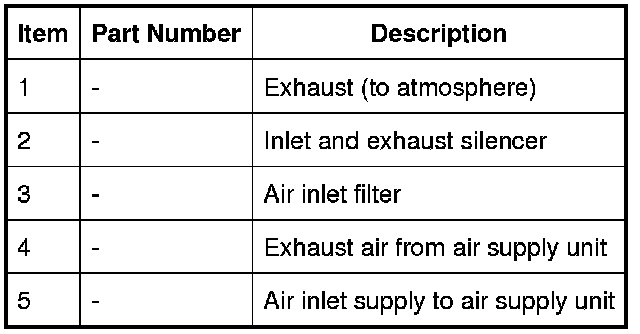

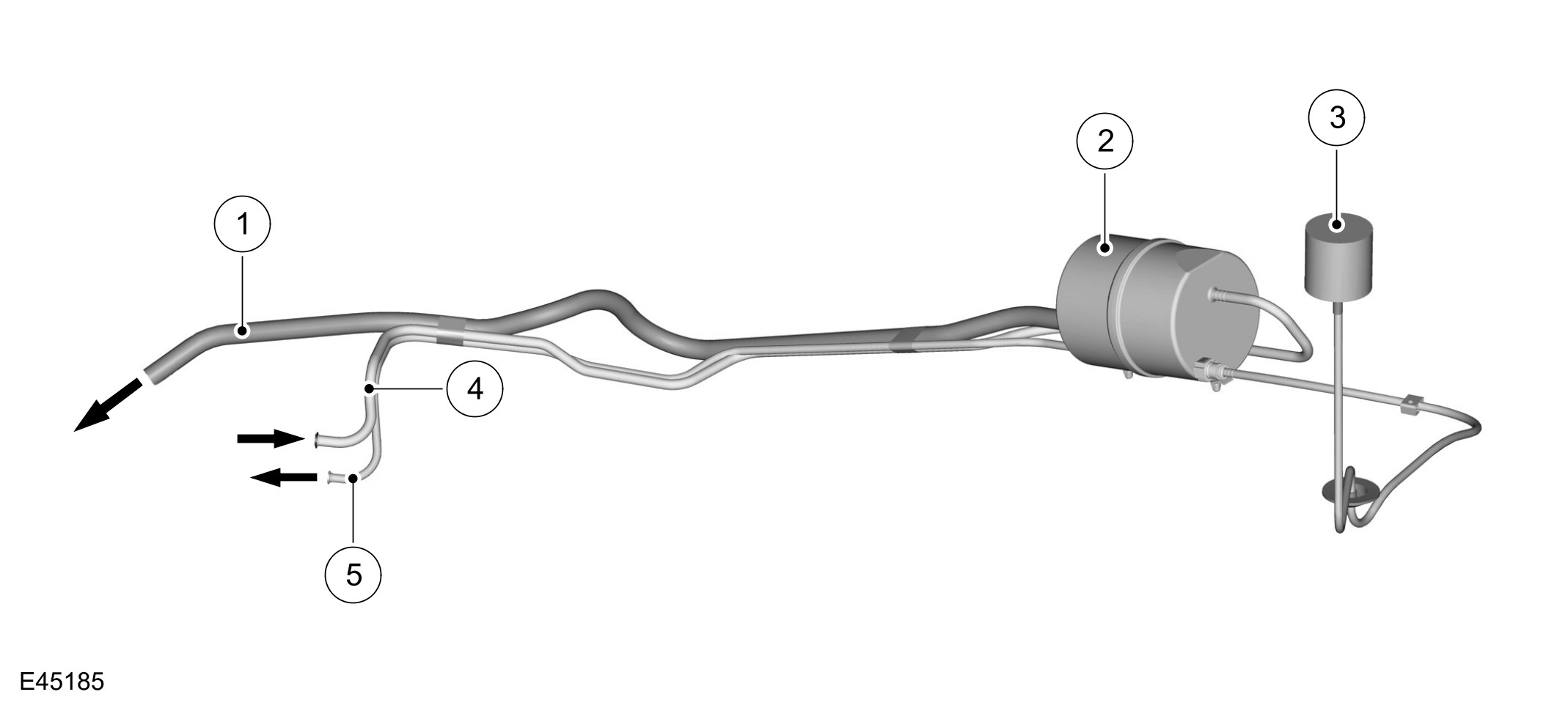

AIR SILENCER AND INLET AIR FILTER









The air silencer is required to limit any noise produced from the air supply unit during inflation or deflation of the air springs.
The silencer comprises two plastic molded cans, which are bonded together. A silencing foam in the large internal chamber forms the exhaust silencer. A pipe connection is molded onto each end of the silencer and provides for the attachment of the exhaust air to atmosphere pipe and the exhaust air pipe from the air supply unit.
A secondary chamber, located around the outside of the exhaust chamber forms the silencer for the inlet air. Pipe connections are molded onto each end of the intake silencer and provide for the attachment of the air inlet pipe from the inlet air filter and the air inlet pipe to the air supply unit. The intake air silencer is a hollow chamber with no noise reduction foam filling.
The air intake filter is connected via a pipe to the intake silencer chamber of the air silencer unit. The filter is located in the rear left hand corner of the body, away from possible sources of dirt and moisture.
The filter contains a foam element which removes particulate matter from the inlet air before it reaches the silencer or the air supply unit.

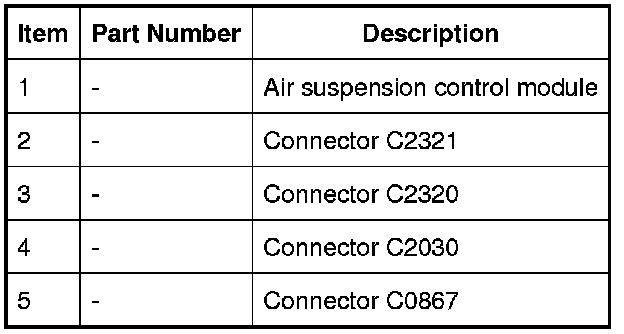

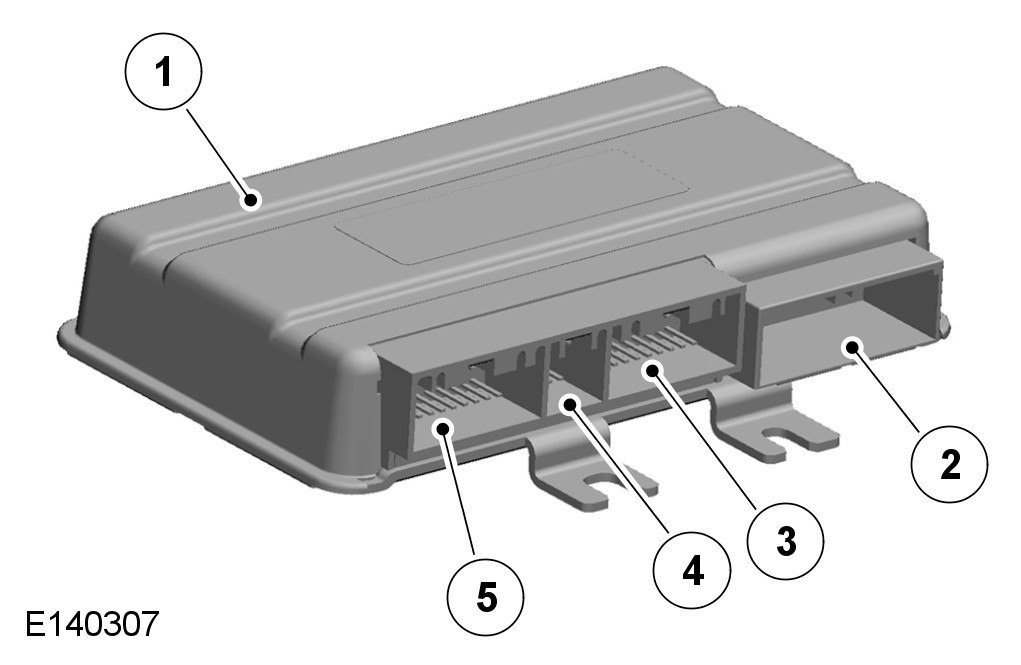

AIR SUSPENSION CONTROL MODULE









The air suspension system fitted is controlled by the air suspension control module which is located behind the instrument panel, on the driver's side 'A' pillar.
The control module monitors the height of each corner of the vehicle via four height sensors, which are mounted in-board of each road wheel.
The control module has the following modes of operation:
- Calibration
- Normal
- Periodic Wake-Up.
When a new air suspension control module is fitted, the air suspension system will not function until the air suspension software is loaded and the system calibrated using the Land Rover approved diagnostic system.

Calibration
A calibration routine is performed using the Land Rover approved diagnostic system to access the position of each corner of the vehicle and record the settings in the control module memory. Once set, the calibration is not required to be performed unless the air suspension control module or adaptive damping module is removed or replaced, a height sensor or bracket is removed, replaced or disturbed or a suspension arm to which the sensor is connected is removed or replaced. If the removed height sensor is subsequently refitted, the calibration procedure will have to be performed to ensure the integrity of the system.
If the air supply unit, the reservoir, a valve block, a damper module or the air harness is removed or replaced, the system will not require recalibration.

Periodic Wake-Up Mode
When the vehicle is parked, the air suspension control module 'wakes up' two hours after the ignition was last switched off and once every twenty four hours thereafter. The vehicle height is checked and if the vehicle is not level within a pre-set tolerance, small downwards height adjustments may be made automatically.

SYSTEM OPERATION
Under normal operating conditions, the air suspension control module keeps the vehicle level at the 'current' ride height. The incoming height signals from the sensors are passed through filters to remove irregular signals produced by road noise or other irregularities. When the vehicle is stationary or a height change is in progress, the signals are passed through a 'fast' filter, which tracks the true rate of change of height. When the vehicle is moving, the signals are passed through a 'slow' filter. The 'slow' filtered signals remove almost all road noise from the signals and output a true long term average for each corner height. The 'slow' filtered signals cannot be used to respond quickly during height changes.
The air suspension control module monitors each corner height signal using the fast filtered signals if the vehicle is stationary or the slow filtered signals if the vehicle is moving. If the height remains in a 'dead band' which is ±10 mm from the target height, the control module does not implement any height adjustment changes. When the control module detects that a corner has moved outside of the 'dead band', the control module operates the compressor and/or the valves to raise or lower the corresponding corner(s) back into the target height.

SYSTEM INHIBITS
A number of conditions exist where a change in ride height is undesirable. To counter this, the air suspension control module is programmed with a number of system inhibits. If any of the conditions detailed below exist, the air suspension control module will suspend height changes and height corrections.

Compressor
System Pressure
The compressor will not start if the system pressure is greater than 4 bar (gage)
Compressor Temperature
Two temperature sensors are located within the compressor to prevent overheating. If the temperature of the motor brush assembly or the compressor cylinder head rise above pre-set limits, the air suspension control module will inhibit the compressor operation. The limits are detailed in tables in the Air Supply Unit section of this product.

Cornering
If the air suspension control module registers a cornering force greater than 0.2g it will inhibit all height changes and corrections. The system will remain inhibited until the cornering force falls to less than 0.15g. The air suspension control module receives a message from the lateral acceleration sensor (which is an integral part of the ABS (anti-lock brake system) yaw rate sensor) on the high speed CAN (controller area network) bus for the cornering force.

Rapid Acceleration
If the air suspension control module registers a rapid acceleration greater than 0.2g it will inhibit all height changes and corrections. The system will remain inhibited until the rapid acceleration falls to less than 0.15g. Acceleration is calculated by the control module from a vehicle speed signal received via the high speed CAN (controller area network) bus.

Rapid Deceleration
If the air suspension control module registers a rapid deceleration smaller than - 0.2g it will inhibit all height changes and corrections. The system will remain inhibited until the rapid deceleration rises above - 0.15g. Deceleration is calculated by the control module from a vehicle speed signal received via the high speed CAN (controller area network) bus.

Vehicle Jack
The air suspension control module will inhibit all height changes and corrections if it detects a corner lowering too slowly for more than 1.2 seconds. This is interpreted as the corner identified as moving too slowly being supported on a jack. In this situation, the corner height will not change when air is released from the air spring because the jack acts as a mechanical prop.
The system will remain inhibited until any of the following conditions exist:
- The air suspension rotary switch is moved to the up or down position
- The vehicle speed rises to more than 2 mph (3 km/h) for more than 45 seconds.

Door Open
The air suspension control module will stop all height change requests while any of the doors are open. Vehicle leveling continues with a door open by keeping the vehicle at the height when the door was opened if the vehicle load changes. Door open status is ignored when the vehicle speed is above 5 km/h.

DIAGNOSTICS
The air suspension control module can store fault codes which can be retrieved using the Land Rover approved diagnostic system. The diagnostics information is obtained via the diagnostic socket which is located below the instrument panel, above the driver's foot pedals. The socket is protected by a hinged cover.
The diagnostic socket allows the exchange of information between the various control modules on the bus systems and the Land Rover approved diagnostic system. This allows the fast retrieval of diagnostic information and programming of certain functions using the Land Rover approved diagnostic system.

Fault Messages
The air suspension has two methods which it can use to inform the driver of a fault in the air suspension system; the air suspension control switch LED (light emitting diode)'s and the instrument cluster message center.
If the air suspension control module suffers a major failure and there is no air suspension control, all the control switch LED (light emitting diode)'s will remain unlit.
If a fault occurs and the control module can determine the ride height and the vehicle is not above on-road height, the driver will be notified via a message in the message center. If the control module cannot determine the height of the vehicle, or the vehicle is above on-road height and cannot be lowered, a message is displayed and accompanied with a maximum speed message.
If a fault is detected within the DSC (dynamic stability control) the message 'SUSPENSION LOWERED FOR SAFETY' and a chime will be emitted. This is not a fault with the air suspension system. The fault should be investigated and rectified as soon as possible.
For additional information, refer to Information and Message Center Description and Operation

RESERVOIR
The air suspension control module assumes the reservoir has sufficient pressure, which is measured before a vehicle raise is started. The control module then uses a software model to operate the compressor as required.

SYSTEM PNEUMATIC CIRCUIT

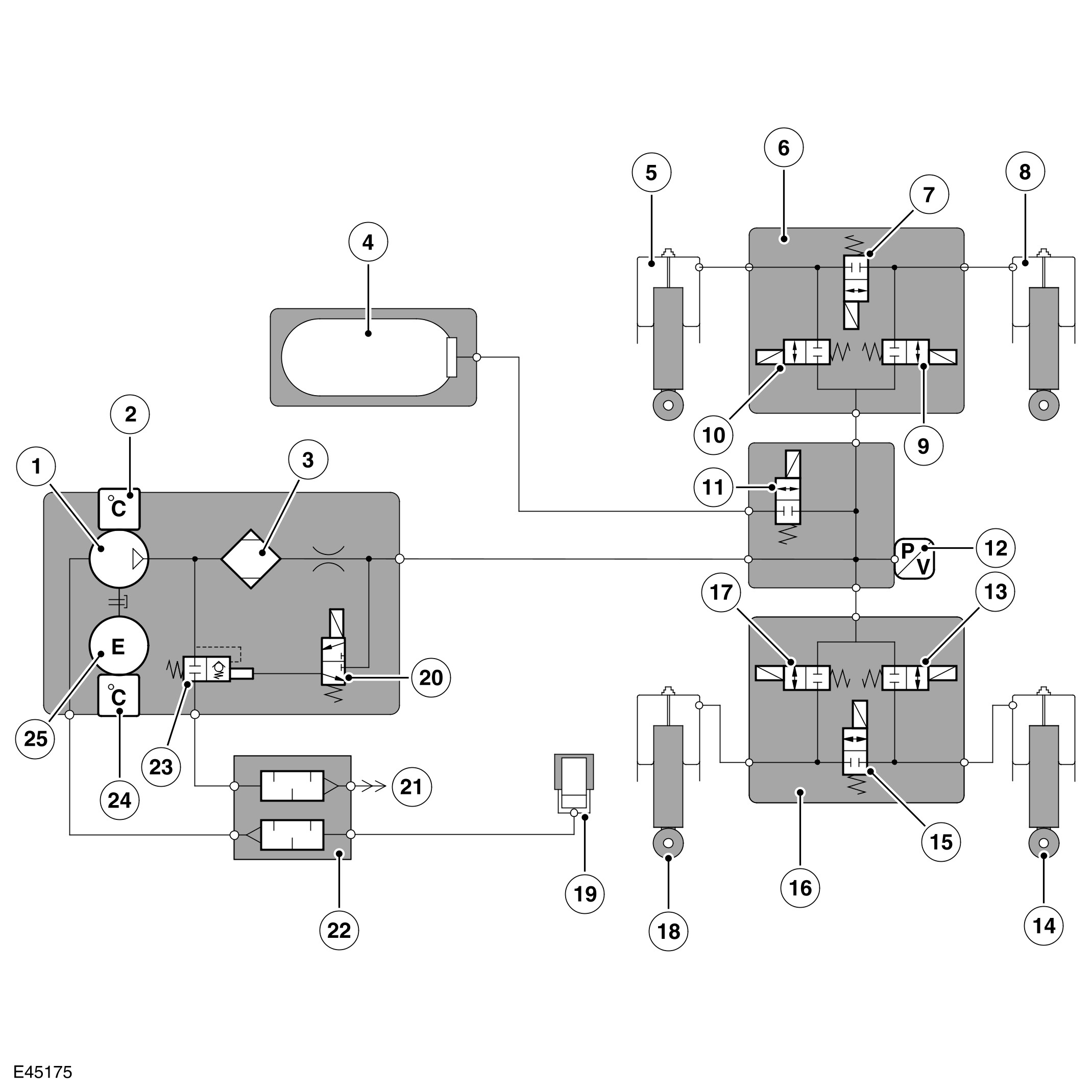

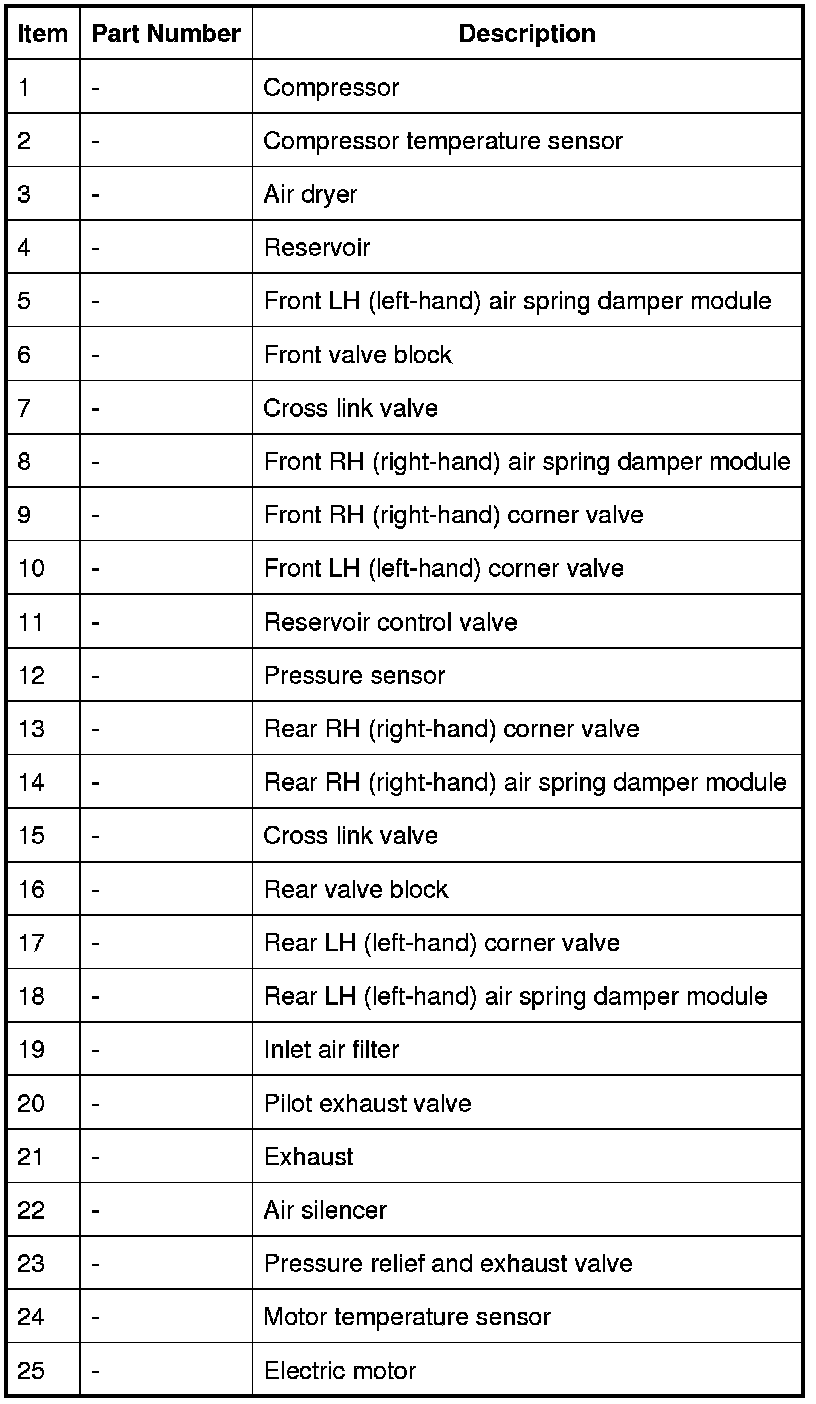

The following schematic diagram shows the connection relationship between the air supply unit, the reservoir, the reservoir valve block, the cross-link valves and the air springs.

Schematic Pneumatic Circuit

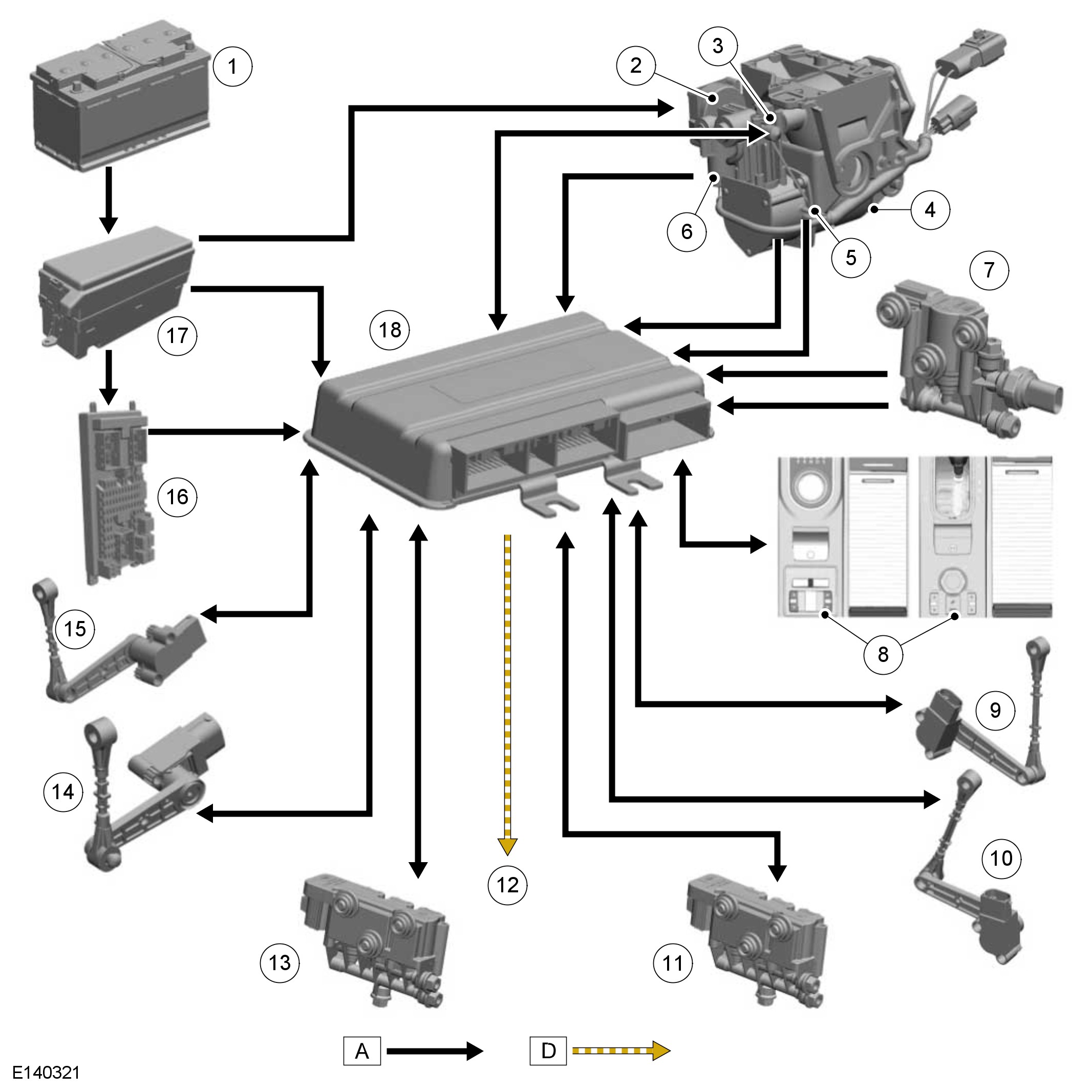

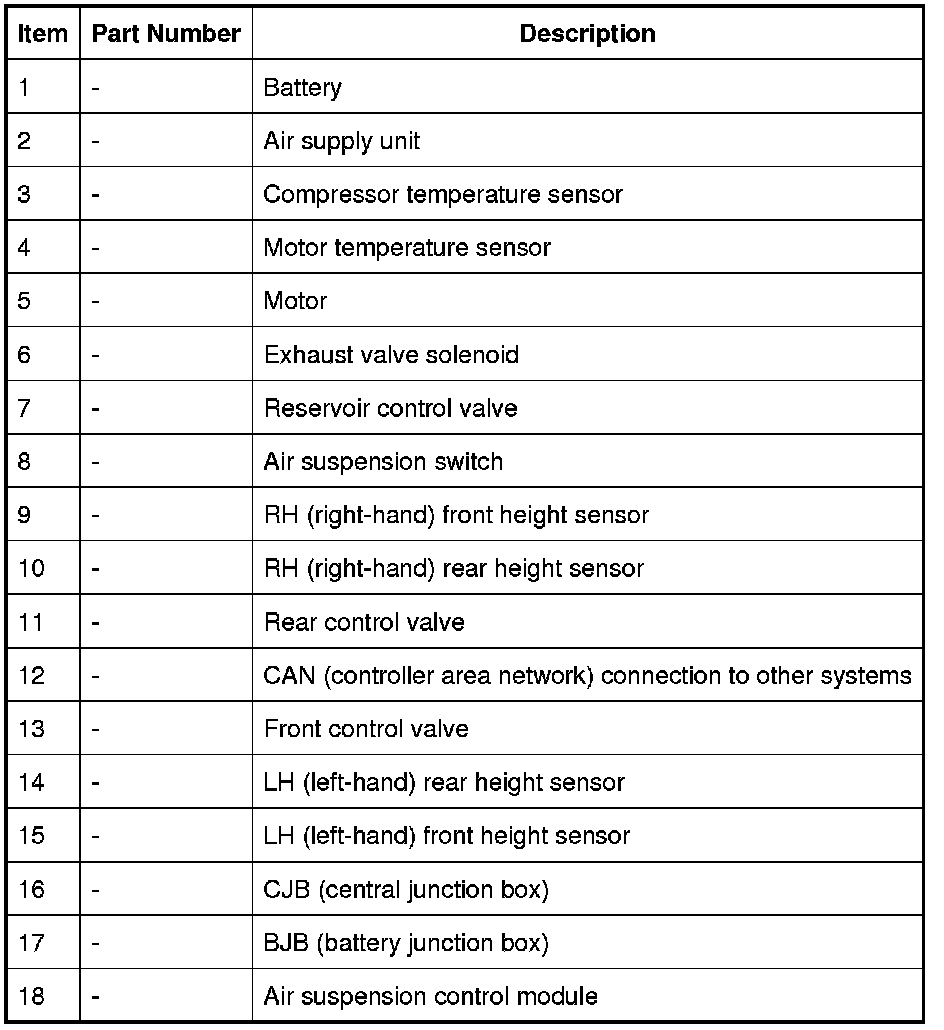

CONTROL DIAGRAM - AIR SUSPENSION

NOTE:
A = Hardwired; D = High Speed CAN (controller area network) bus
