Lower Arm Ball Joint

Lower Arm Ball Joint

Special Service Tools

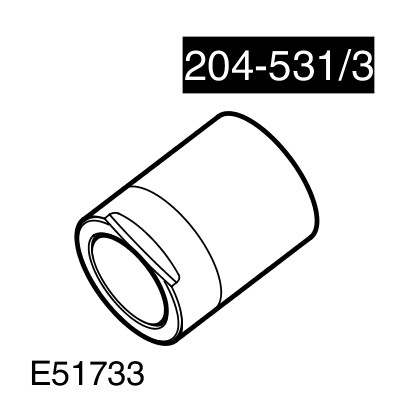

Remover/installer front lower arm ball joint

204-531/3





Remover/installer front lower arm ball joint

204-531/2





Remover/installer front lower arm ball joint

204-531/1





Remover/installer front lower arm ball joint

204-753

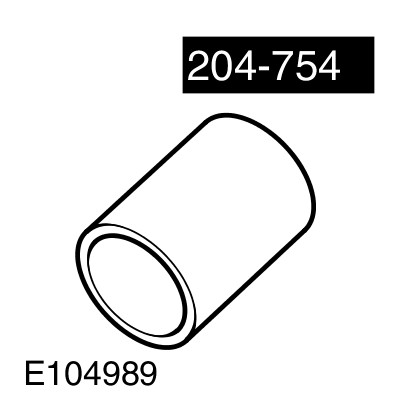

Remover/installer front lower arm ball joint

204-754

Removal

All vehicles
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
2 Remove the wheel and tire.
3 Remove the lower arm. For additional information, refer to Lower Arm Lower Arm

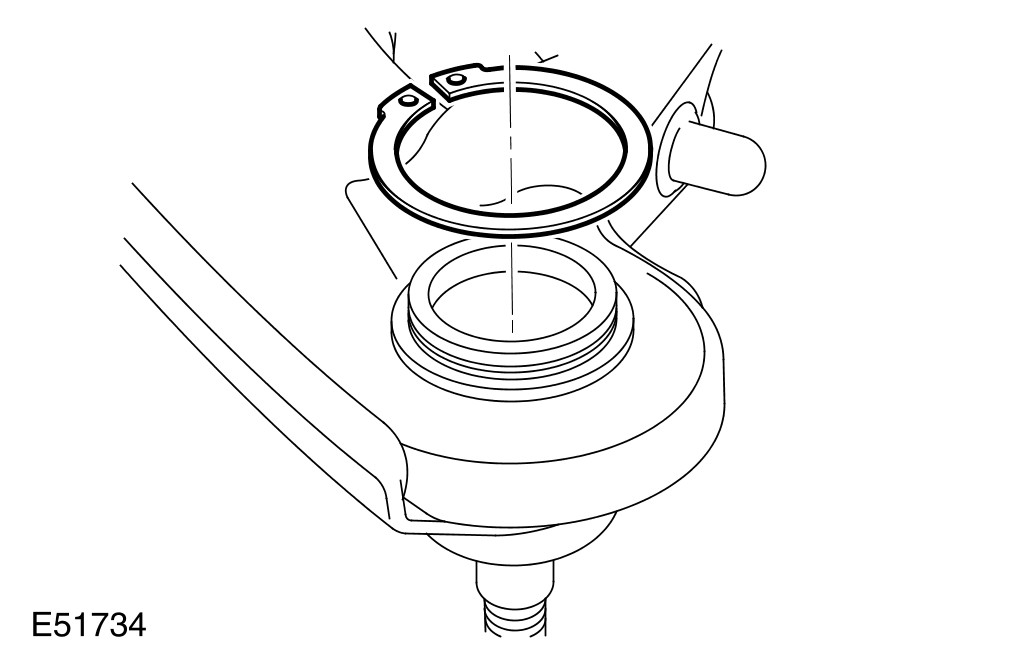

4 Remove the circlip.

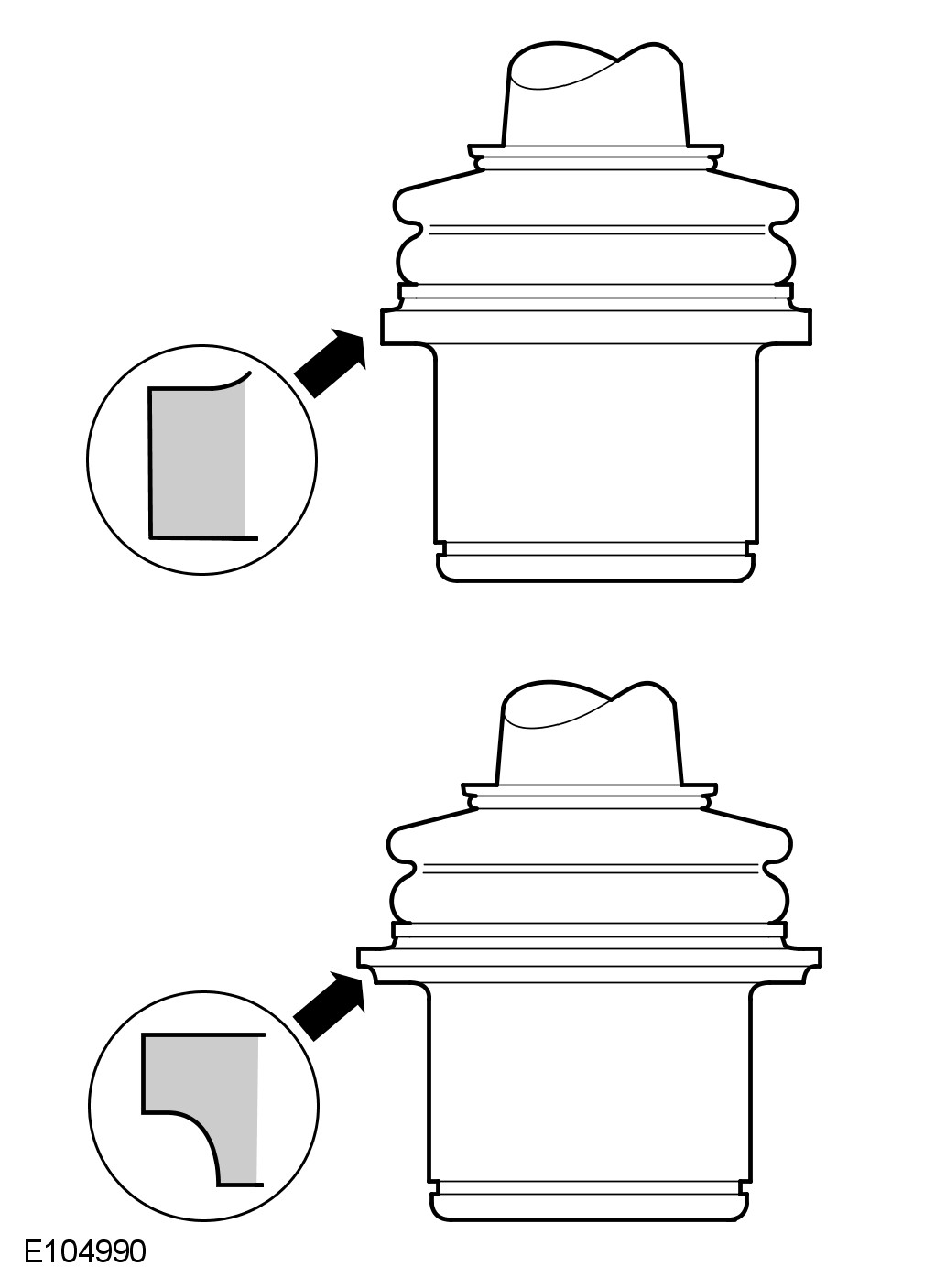

5 Inspect the installed ball joint to determine if a radius is present.

Ball joint without radius




6 Using the special tools, remove the ball joint.

Ball joint with radius

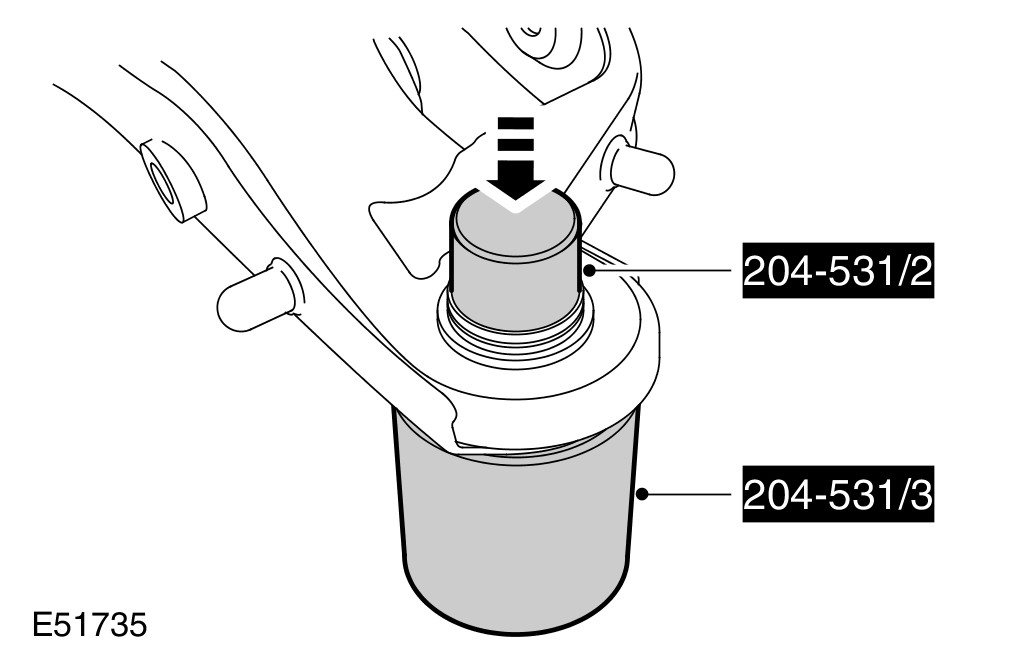

7 Using the special tools, remove the ball joint.

Installation

All vehicles
1 Clean the components.




2 Inspect the new ball joint to determine if a radius is present.

Ball joint without radius




3 Using the special tools, install the ball joint.

Ball joint with radius

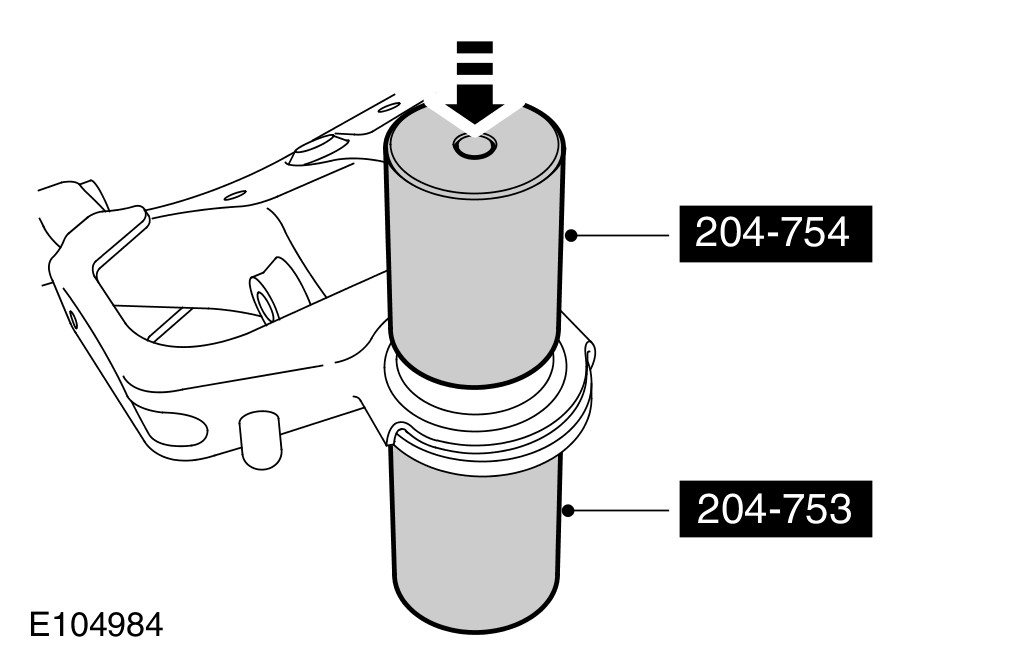

4 Using the special tools, install the ball joint.

All vehicles
5 Install the circlip.
6 Install the lower arm. For additional information, refer to Lower Arm Lower Arm
7 Install the wheel and tire.
- Tighten the wheel nuts to 140 Nm (103 lb.ft).
