Power Steering Fluid Reservoir: Service and Repair

Power Steering Fluid Reservoir

Removal

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
1 Disconnect the battery ground cable. For additional information, refer to Specifications Specifications
2 Siphon the fluid from the power steering reservoir.

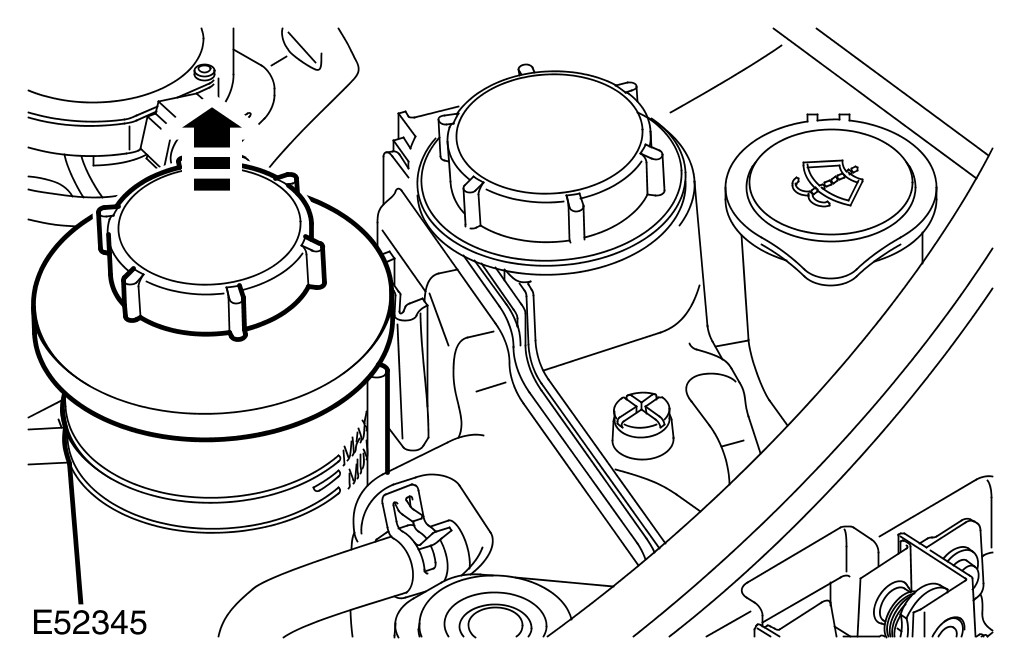

3 Release the power steering fluid reservoir from the bracket.




4
CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
NOTE:
Some fluid spillage is inevitable during this operation.

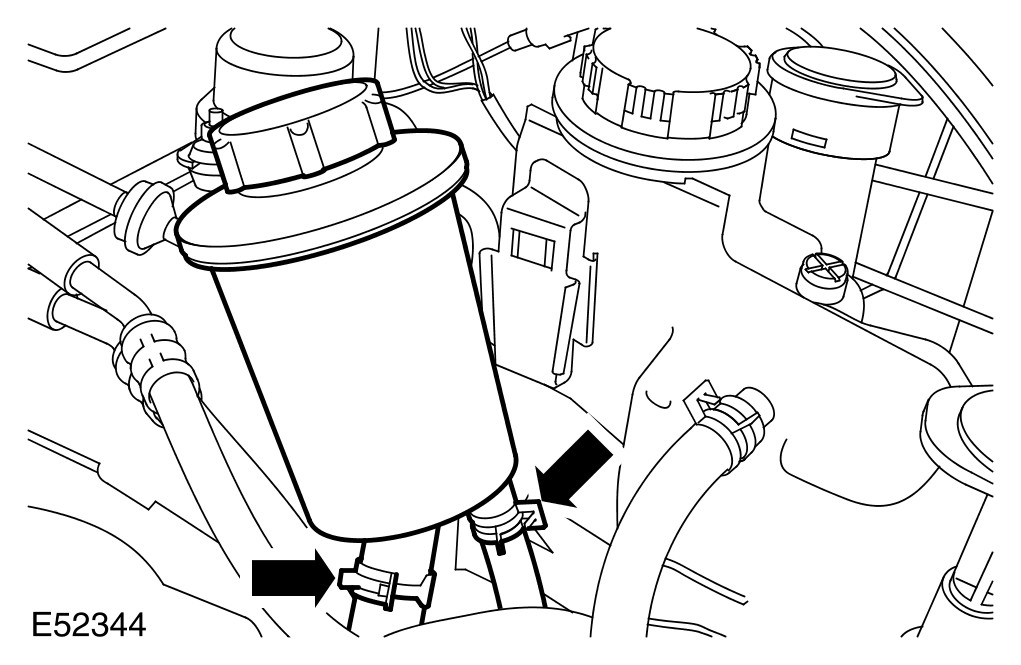

Remove the power steering fluid reservoir.
- Position an absorbent cloth to collect fluid spillage.
- Release the hose clips and disconnect the hoses.

Installation
1 To install, reverse the removal procedure.
2 Fill and bleed the power steering system. For additional information, refer to Power Steering System Filling and Bleeding Service and Repair
