Second Row Safety Belt Retractor

Second Row Safety Belt Retractor

Removal

NOTE:
Left-hand shown, right-hand similar.
1 Remove the D-pillar upper trim panel. For additional information, refer to D-Pillar Trim Panel D-Pillar Trim Panel

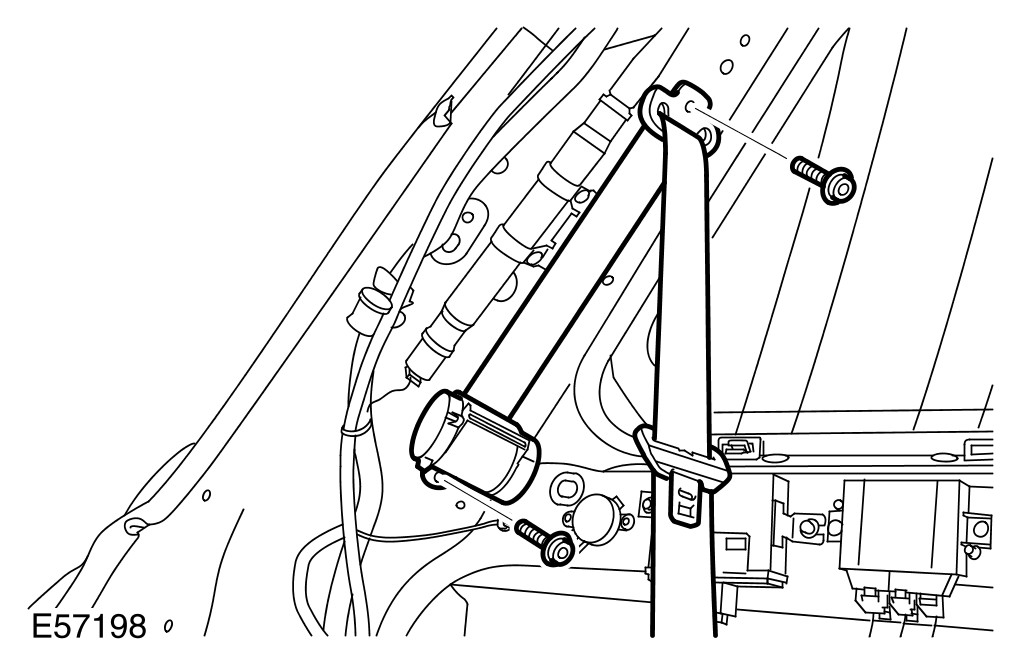

2 Release the safety belt upper anchor.
- Remove and discard the Torx bolt.




3 Remove the second row safety belt retractor.
- Remove and discard the Torx bolt.

Installation
1 Install the second row safety belt retractor.
- Tighten the Torx bolt to 40 Nm (30 lb.ft).
2 Install the safety belt upper anchor.
- Tighten the Torx bolt to 40 Nm (30 lb.ft).
3 Install the D-pillar upper trim panel. For additional information, refer to D-Pillar Trim Panel D-Pillar Trim Panel
