Front Safety Belt Retractor

Front Safety Belt Retractor

Removal
1 Position the front seat fully forwards.
2 Remove the scuff plate trim panel. For additional information, refer to Scuff Plate Trim Panel Service and Repair

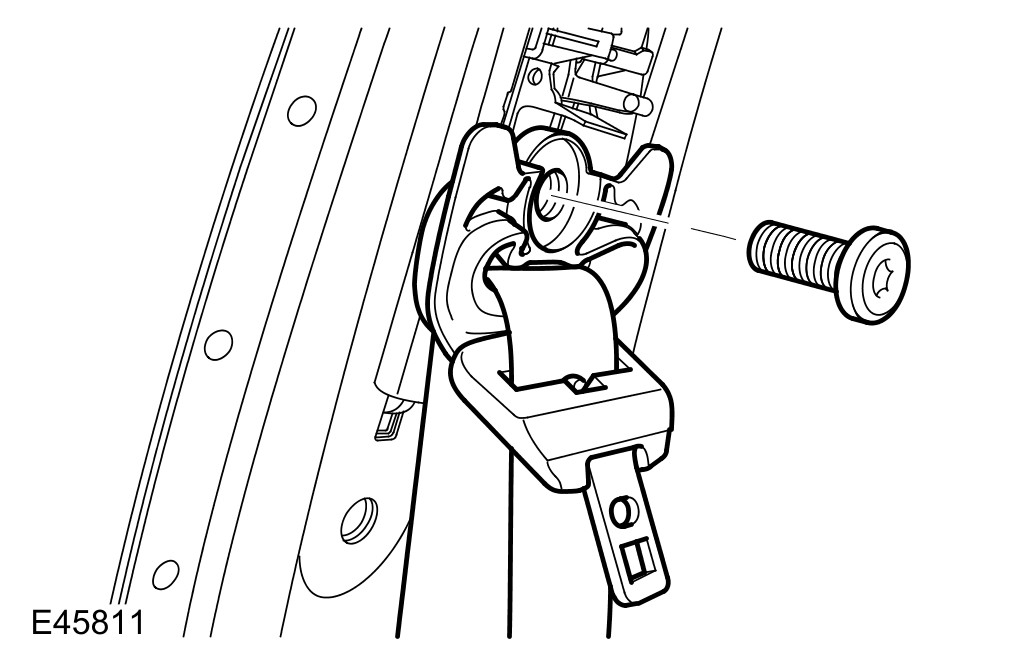

3 Release the safety belt upper anchor.
- Remove and discard the Torx bolt.

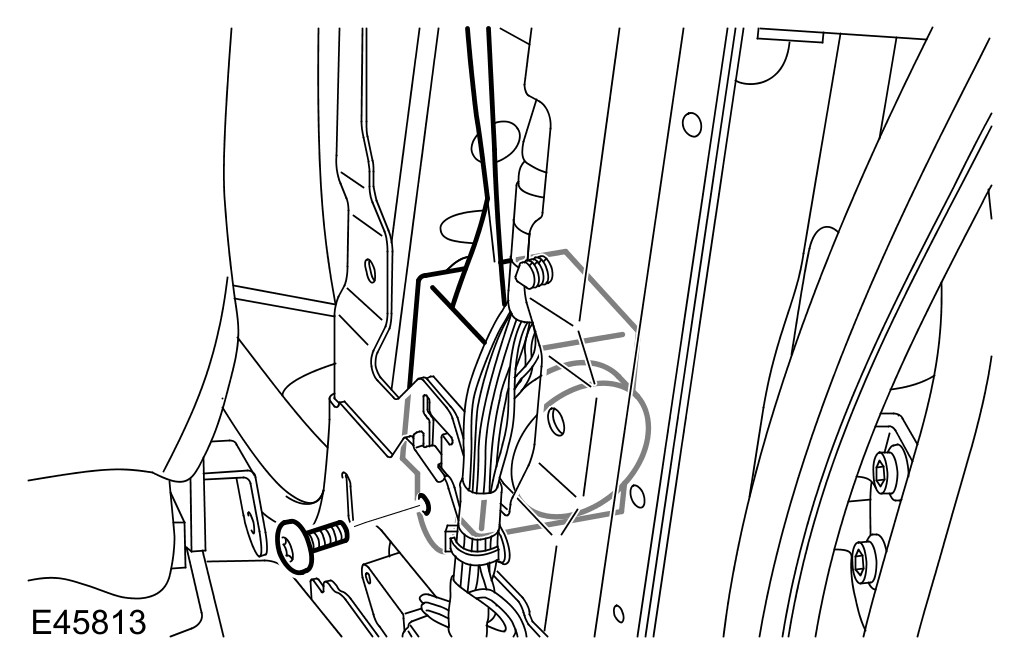

4 Remove the safety belt retractor assembly.
- Remove and discard the Torx bolt.

Installation
1 Install the front safety belt retractor.
- Tighten the Torx bolt to 40 Nm (30 lb.ft).
2 Attach the safety belt upper anchor.
- Tighten the Torx bolt to 40 Nm (30 lb.ft).
3 Install the scuff plate trim panel. For additional information, refer to Scuff Plate Trim Panel Service and Repair
