Rear Safety Belt Buckle LH [Vehicles With: 60/40 Split Seat]

Rear Safety Belt Buckle LH

Removal

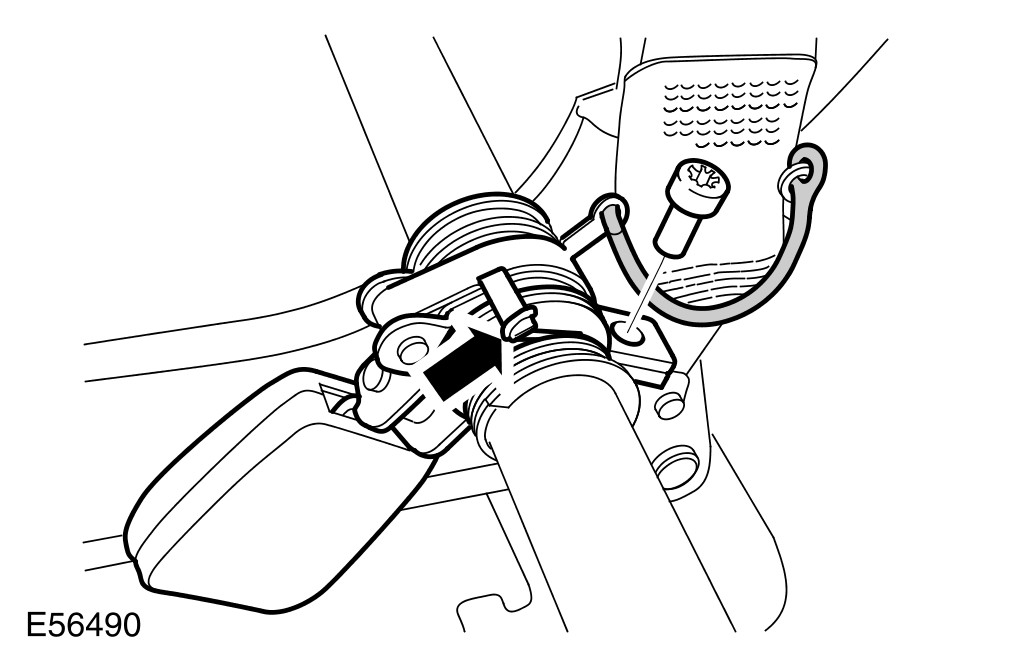

1 Remove the safety belt buckle.
- Raise the seat cushion.
- Release the retaining strap.
- Remove the Torx bolt.
- Release the tension spring.

Installation
1 Install the safety belt buckle.
- Attach the tension spring.
- Tighten the Torx bolt to 25 Nm (18 lb.ft).
- Attach the retaining strap.
- Lower the seat cushion.
